GIRBAU EH060 User Manual

Appendices to the manual 87
Code 429159
Rev. 15/0717

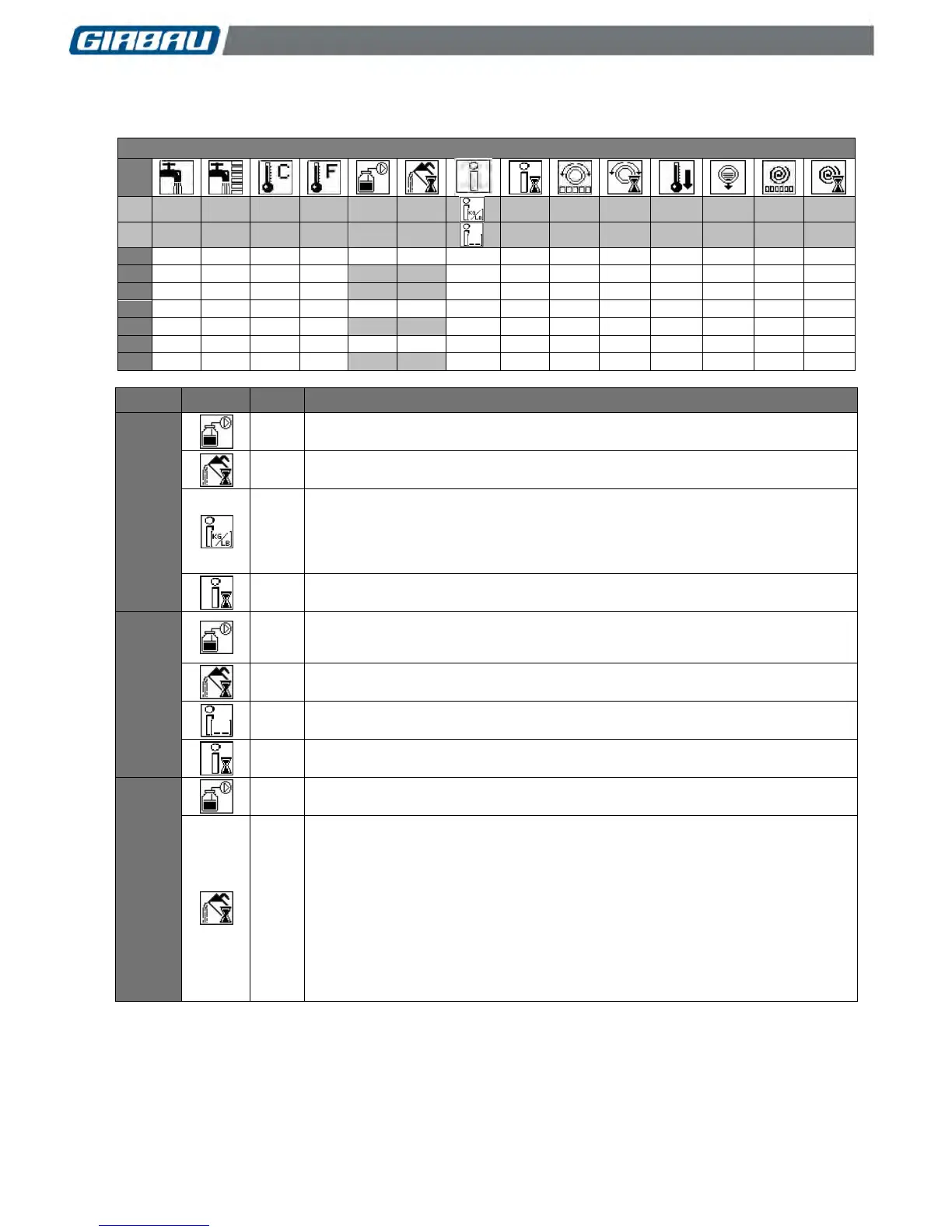

The explanation on the previous page is summarised in the following program setting table:
Pr
4

66
min
Ph
1
0
0
0
32
1
5
5
0
0
0
0
0
0
2
0
0
0
32
2
5
5
0
0
0
0
0
0
3
2
3
20
68
0
0
0
0
5
3
0
1
1
1
4
2
3
40
104
3
10
0
0
5
5
0
1
3
2
5
2
2
60
140
3
10
0
0
5
6
0
0
-
-
6
2
3
80
176
0
0
0
0
5
8
0
1
3
2
7
2
4
40
104
3
10
0
0
5
6
0
1
2
2
8
1
5
0
32
0
0
0
0
5
2
0
1
1
1
9
2
4
0
32
3
10
0
0
5
4
0
1
6
9
Phase
Symbol
Value
Description
Ph1
1
A signal that notifies the dosing control unit that the value transmitted from the
A6(I/O2) board will be the weight of the load.
5
Duration of the previous signal. Sufficient time should be programmed for the
dosing control unit to be able to read it.
20
Weight of the load. On machines with a weight control system, the weight of the
load will be automatically read by the washing machine’s microprocessor; on
machines without a weight control system, it must be entered using the
alphanumeric keypad. In this case, the washing machine’s load (20kg) represents
50% of the nominal load.
5
Duration of the previous signal. Sufficient time should be programmed for the
dosing control unit to be able to read it.
Ph2
2
A signal that notifies the dosing control unit that the value transmitted from the
A6(I/O2) board will be the dosing program corresponding to the washing program
being programmed.
5
Duration of the previous signal. Sufficient time should be programmed for the
dosing control unit to be able to read it.
8
Dosing program corresponding to the washing program being programmed.
5
Duration of the previous signal. Sufficient time should be programmed for the
dosing control unit to be able to read it.
Ph4, 5,
7, 9
3
A signal triggering the external dosing.
The product being dosed is determined by the external dosing control unit.
10
Duration of the previous dosing triggering signal.
This value represents the duration of the dosing for the nominal load. The machine
proportionally reduced the duration of the signal depending on the load fraction.
This time reduction can be used by the dosing control unit to adjust the amount of
product dosed in proportion to the reduction in the bath level applied in each
phase.
Thus, if 20kg (50% of the nominal load) has been entered, the time assigned to
this signal will be reduced by between 0 and 50% according to the programmed
level, the use of heaters and even the machine model.
Remember that the information regarding the bath level used during the running of
the program can be consulted using the information screen (see Section 4.4).
