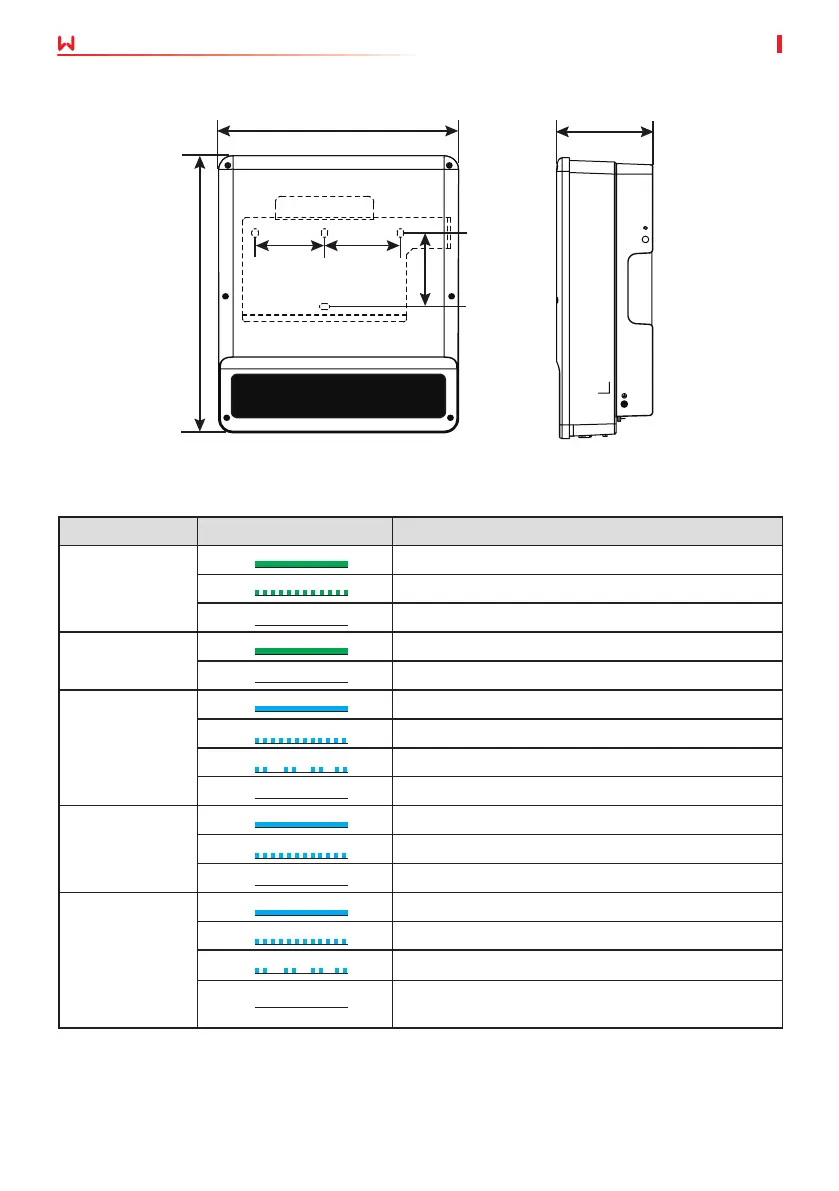

3.5.2 Dimension
3.5.3 Indicator Description
180mm
415mm
516mm
110mm
120mm
120mm
Indicator Status Description
SYSTEM
ON = The system is ready.
BLINK = The system is starting.
OFF =The system is not working.
BACK-UP
ON = Back-up is ready / power available.
OFF = Back-up is o / power not available.
BATTERY
ON = The battery is charging.
BLINK 1 = The battery is discharging.
BLINK 2 = The battery is low / soc is low.
OFF = The battery is disconnected / not active.
GRID
ON = The grid is active and connected.
BLINK = The grid is active but not connected.
OFF = The grid is not active.
ENERGY
ON = Consuming energy from grid / buying.
BLINK 1 = Supplying energy to grid / zeroing.
BLINK 2 = Supplying energy to grid / selling.
OFF = The grid is not connected or the system is
not working.
