5 Installation
5.1 Installation Requirements
1. Do not install the equipment in a place near ammable, explosive, or corrosive materials.
2. Install the equipment on a surface that is solid enough to bear the inverter weight.
3. Install the equipment in a well-ventilated place to ensure good dissipation. Also, the
installation space should be large enough for operations.
4. The equipment with a high ingress protection rating can be installed indoors or outdoors.
The temperature and humidity at the installation site should be within the appropriate range.
5. Install the equipment in a sheltered place to avoid direct sunlight, rain, and snow. Build a
sunshade if it is needed.
6. Do not install the equipment in a place that is easy to touch, especially within children’s
reach. High temperature exists when the equipment is working. Do not touch the surface to
avoid burning.
7. Install the inverters far away from noise-sensitive areas, such as the residential area, school,
hospital etc., in order to avoid the noises bothering people nearby.
8. Install the equipment at a height that is convenient for operation and maintenance, electrical
connections, and checking indicators and labels.
9. Install the equipment away from electromagnetic interference. If there are radio stations or
wireless communication equipment below 30 MHz near the installation location, please
install the equipment as follows:
• Add a multi-turn winding ferrite core at the DC input line or AC output line of the
inverter, or add a low-pass EMI lter.
• The distance between the inverter and the wireless EMI equipment is more than 30m.

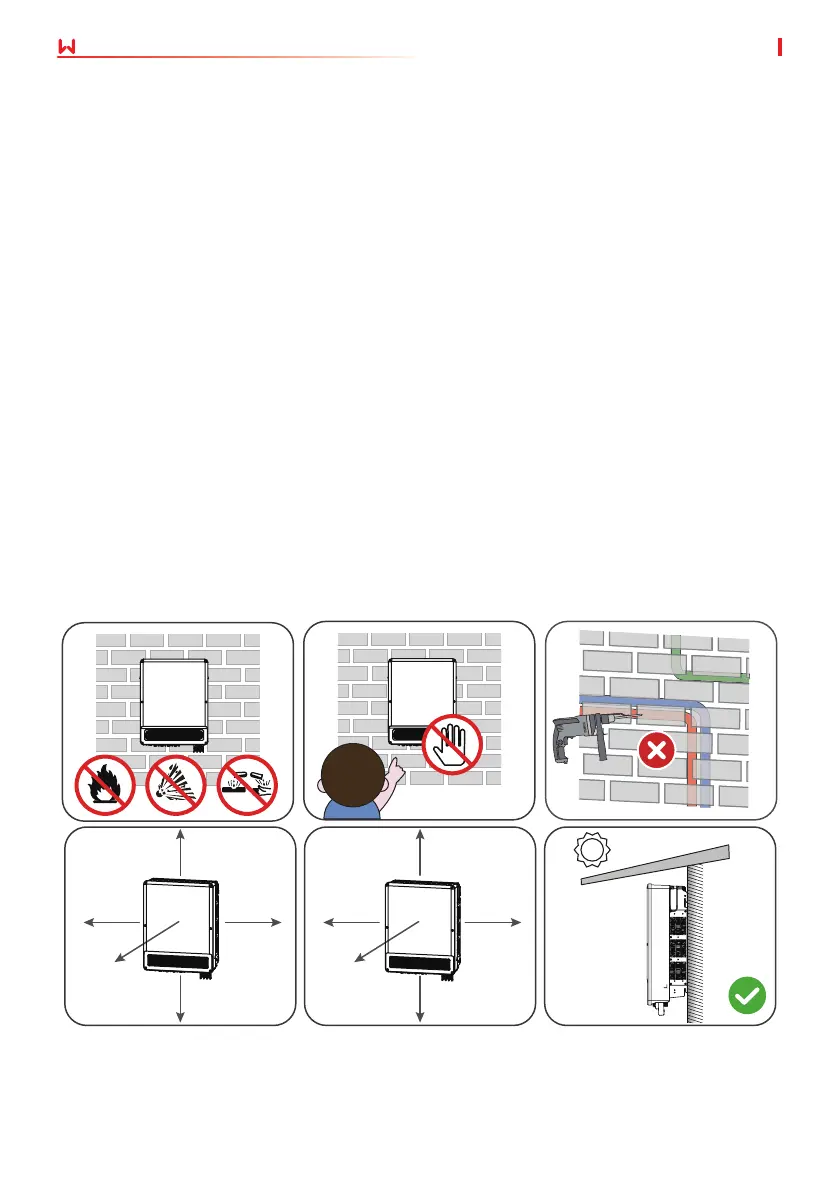

Installation Environment Requirements
Type A: GW12KLV-MT, GW15KLV-MT, GW20KLV-MT, GW25K-MT, GW29.9K-MT, GW30K-MT, GW36K-MT.
Type B: GW30KLS-MT, GW35KLS-MT, GW50KS-MT, GW60KS-MT, GW50KS-MT-EU and GW60KS-MT-EU.
Children No Touch
Type A Type B
≥300mm
≥300mm
≥500mm
≥600mm ≥600mm
≥500mm
≥500mm
≥500mm
≥1200mm ≥1200mm
To Next Page
