Graco Simulation XM Repair Parts

Parts
3A2989V 81

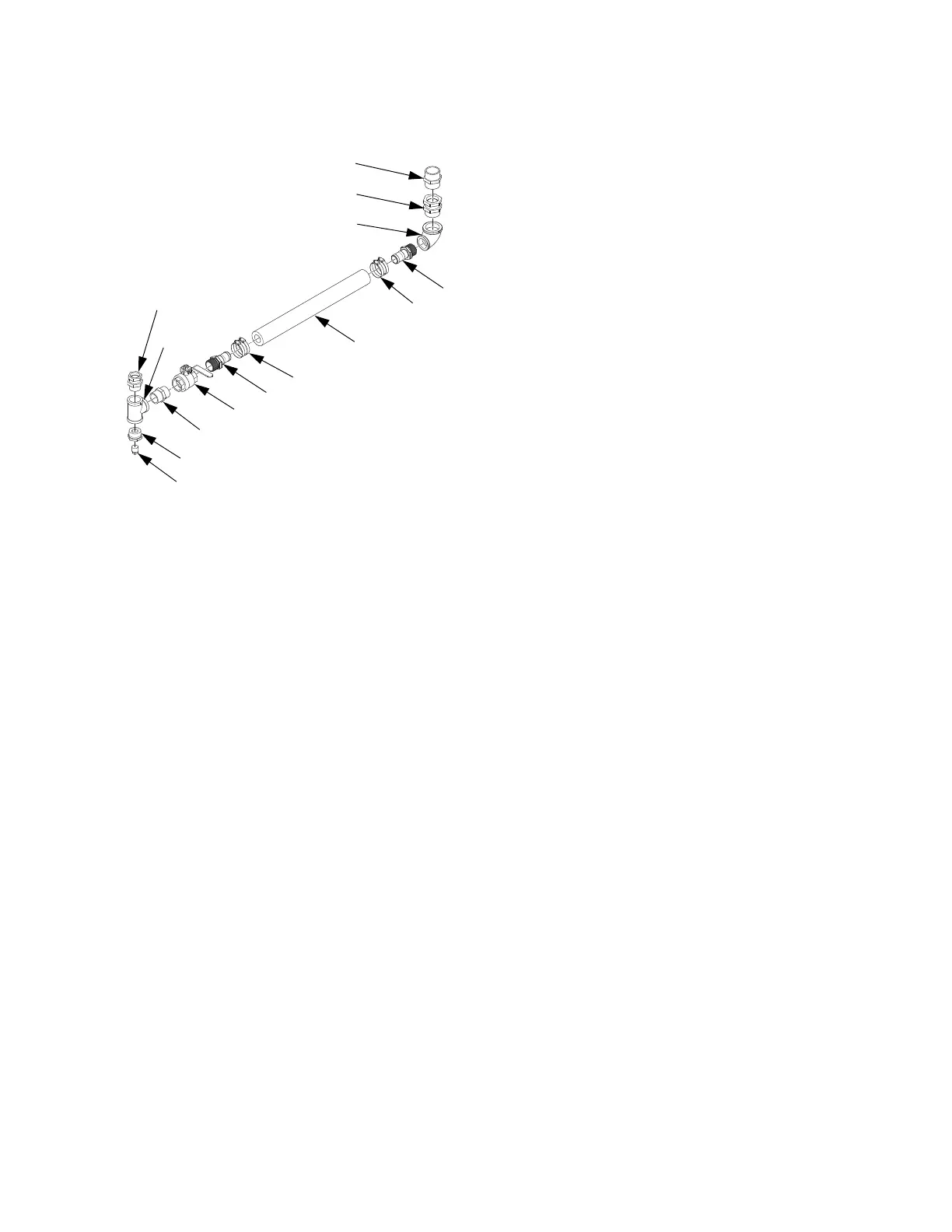

Flexible Fluid Connection Kit (262820)
Accessories
Ref Part Description Qty
1401 120291 PIPE, elbow female 1
1402 125995 FITTING, hose, barbed, 1-1/2 npt 2
1403 126320 HOSE, 1-1/2 ID, 200 psi, 3 ft;
for side to side configuration
1
1404 126889 CLAMP, hose 2
1405 121440 VALVE, ball, 1-1/2 npt 1
1406 121441 FITTING, nipple, hex, 1-1/2 npt 1
1407 121443 FITTING, tee, 1-1/2npt 1
1408 101496 BUSHING, pipe 1
1409 104663 PLUG, pipe 1
1410 121445 SWIVEL, reducing, 1-1/2 x 1-1/4 1
1411 121436 FITTING, swivel, male, 2 in. 1
1412 121435 FITTING, nipple, hex, 2 in. 1
1413 17D794 HOSE, 1-1/2 ID, 200 psi, 13 in;
for front to back configuration
1
1406
1405
1402
1404
1403, 1413
1404
1402
1401
1411
1412
1410
1408
1409
1407
Part Description Qty
17G061 BAG, 100 pack, polyethylene, (see
Batch Dispense or Ratio Test in
sprayer Setup - Operation manual)
1
24P833 KIT, mix wetted parts, contains one
set of spare parts from the mix
manifold outlet to the spray tip.
1
24X113 KIT, hot water flush, for hazardous
area machines, see form 332073
1
24Y132 KIT, hot water flush, for
non-hazardous area machines, see
form 332073
1
