Super Free Match
Service Manual
INSTALLATION97
5 BU MODULE INSTALLATION
5.1 Precaution for Installation
The installation of the air conditioner must be in accordance with the national and local laws and
regulations.
The quality of the installation will affect the capability of air conditioner directly. The installation
should be left to the appointed service center. Please contact your dealer after purchasing this machine.
Professional installation workers will provide installation and test services according to the installation
manual.
The air conditioner should not install in this place where the small animals exist, because they may
cause malfunctions, smoke or fire.
Please keep the area around the unit clean.

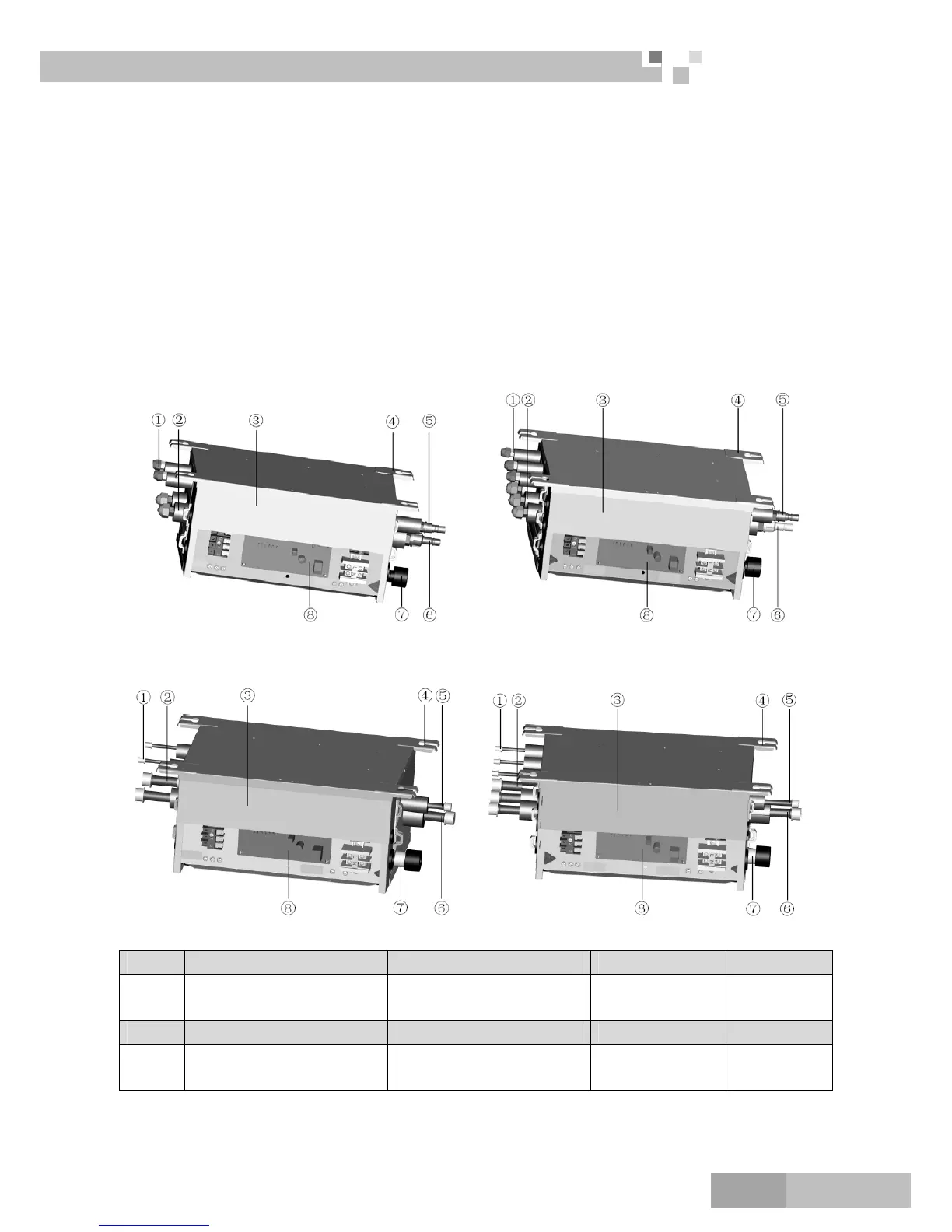

5.2 Names of Main Parts
a) FXA2A-K b) FXA3A-K
a) FXA2B-K b) FXA3B-K
NO. ① ② ③ ④
Name
Liquid piping of indoor unit
side
Gas piping of indoor unit side
Electrical
equipment plate
Hanger metal
NO. ⑤ ⑥ ⑦ ⑧
Name
Liquid piping of outdoor unit
side
Gas piping of outdoor unit
side
Drain hole
Printed circuit
board
