Super Free Match
Service Manual
CONTROL
60

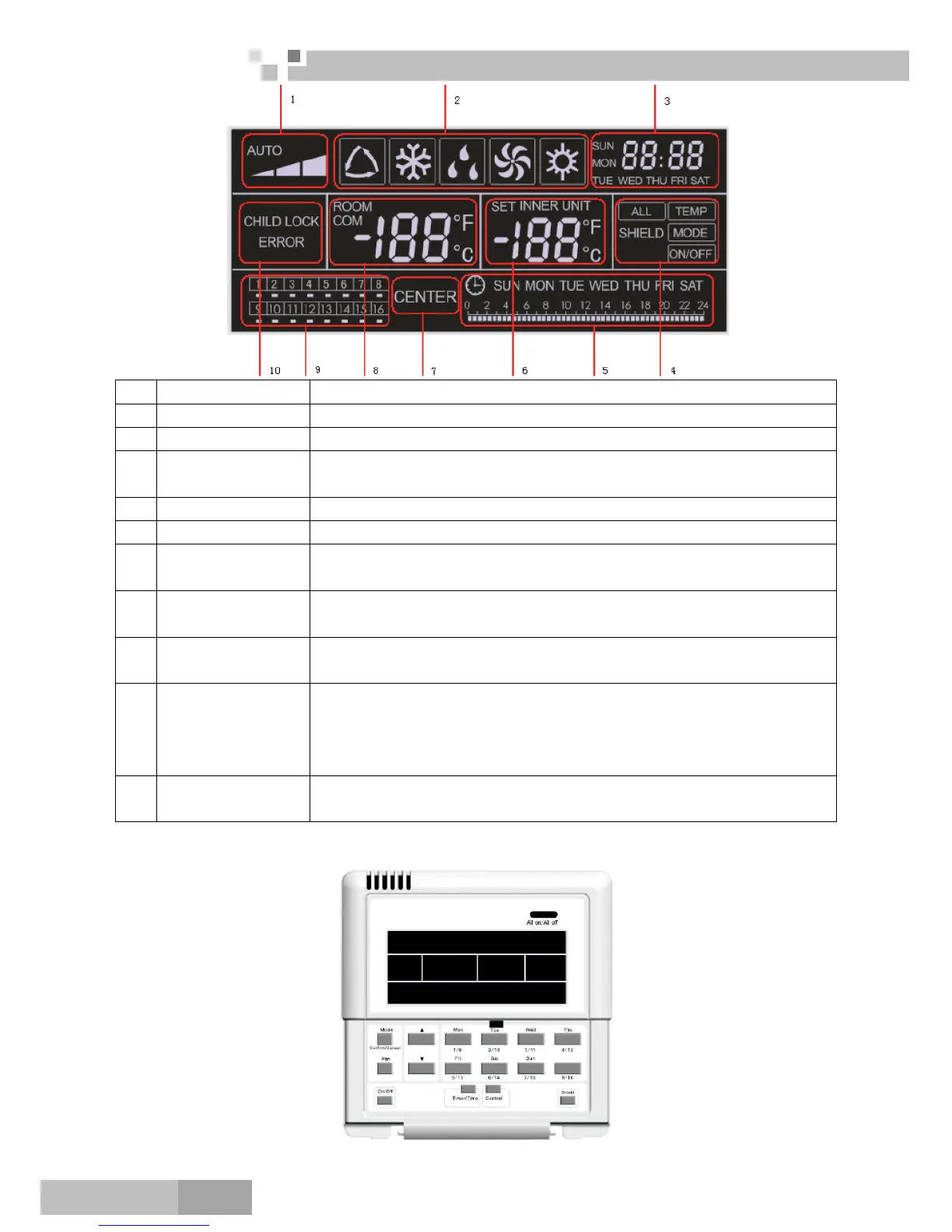

No. Name Description
1 Fan speed It displays the fan speed of the indoor unit, high, medium, low and auto.
2 Running mode It displays the running mode of the indoor unit, auto, cool, dry, fan and heat.
3 System clock
It displays the current time (hour and minute) in 24-hour time system and also
the week day.
4 Shield It displays the shielded status, “ALL”, “TEMP”, “MODE” and “ON/OFF”.
5 Weekly timer It displays the timing period (unit: 0.5 hour) which will circulate every week.
6
Set temperature/
Indoor unit code
It displays the set temperature, indoor unit code (01-16), and symbols of Celsius
and Fahrenheit scale.
7 Control mode
It displays “CENTER” under the centralized control mode and no display under
the single control mode.
8
Ambient temperature/
Serial port
It displays the ambient temperature, serial port as well as symbols of Celsius and
Fahrenheit scale.
9
Indoor unit code/
on/
off status
Numbers indicate the indoor unit codes which will be displayed when the
corresponding indoor unit is online; “□” indicates the on/off status of the indoor
unit, that is, when it is bright, it means the unit is “On”; when it is gone out, it means
the unit is “Off”.
10 Error , Child lock
It displays the error codes when some error(s) arises and also “CHILD LOCK”
when this function is activated.
4.4 Buttons
4.4.1 Outline of Buttons
To Next Page
