6 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS
6.1 Outdoor Unit
6.1.1 Disassembly and Assembly of the plates
Remarks: Prior to the assembly of the plates, make sure the power supply is cut off.

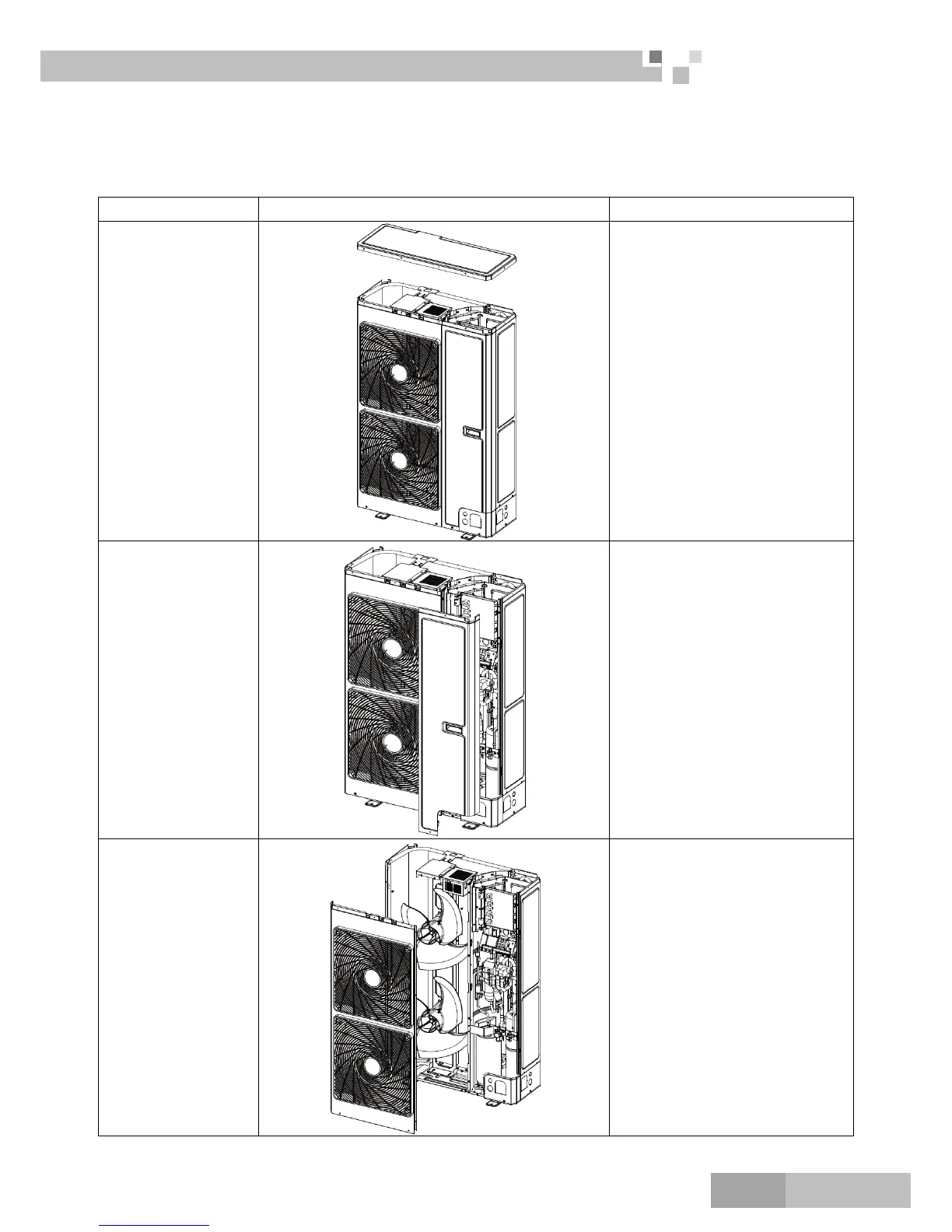

Steps Illustrations Operation Instructions
1.Disconnect the
coping plate
a) Unscrew the fixed screws of the
coping plate;
b) Remove the coping plate.
2.Disconnect the front
side plate
a) Unscrew the fixed screw of the
front side plate;
b) Remove the front side plate.
3.Disconnect the outer
case
a) Unscrew the fixed screws of the
outer case;
b) Remove the outer case.
