MAINTENANCE
160
6.2 Indoor unit
6.2.1 Wall mounted type
◆ Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.

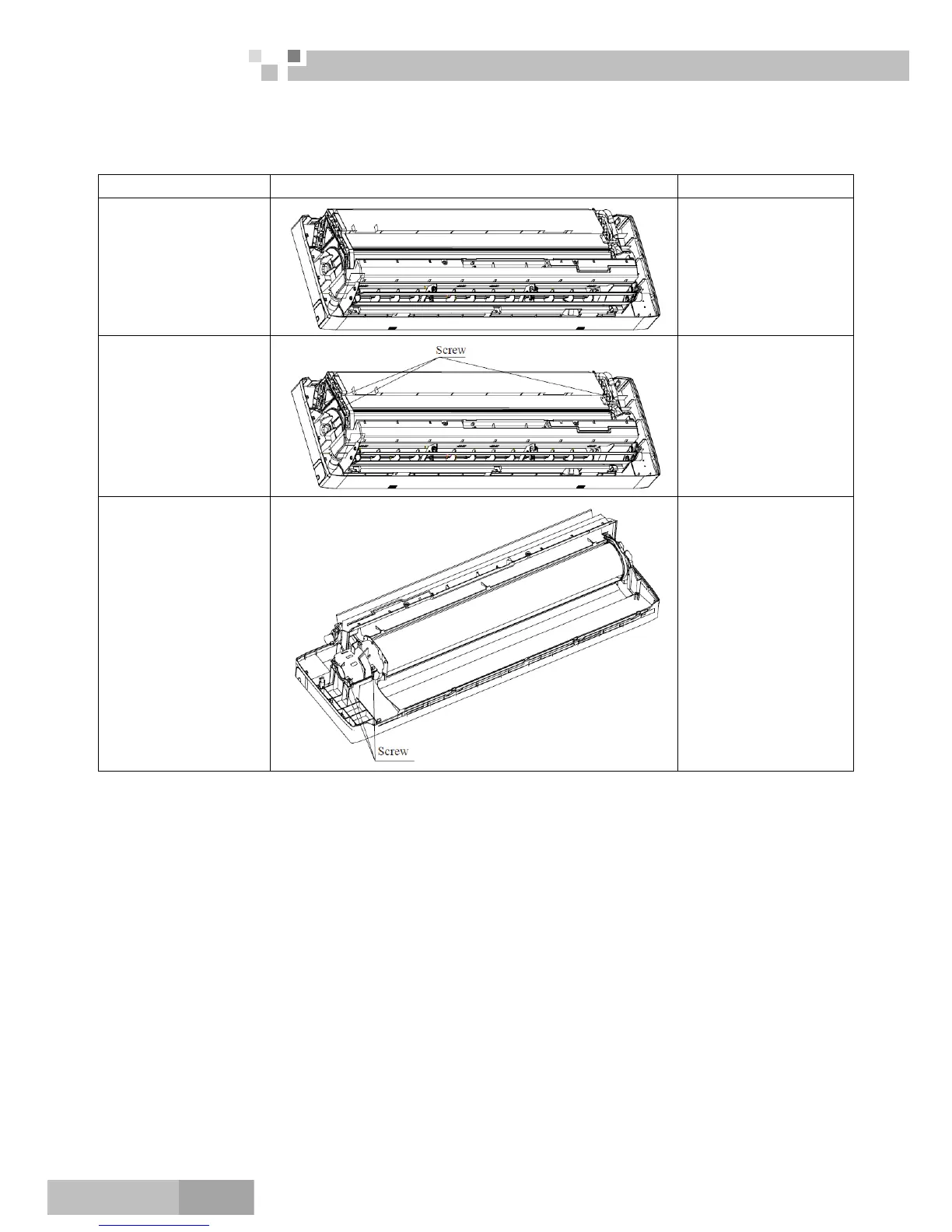

Steps Illustrations Operation Instructions
1.Remove the front
panel, front case and
electric box

a) Loosen the screws；
b) Unplug the motor
terminals in the
electric box. Loosen
the earth screws and
lift up
2.Remove the evaporator

Unscrew the fixed screws
of the evaporator, and
then remove it
3.Remove the motor and
cross flow fan

a) Unscrew the fixed
screws of the motor
press plate and cross
flow fan
b) Separate the motor
from the cross flow
fan.
