motor and disconnect the leading wire
insert of the motor. Then remove the
motor.
motor support and lift the motor support to
remove it.
subassembly; loosen the wire bundle and
unplug the wiring terminals. Then lift the
electric box to remove it.
sheet and then remove the isolation
sheet.
Unsolder the welding joint connecting the
capillary, valves and the outlet pipe of
condenser to remove the capillary. Do not
block the capillary with welding slag
during unsoldering.
motor support
motor
Electric Box Assy
ProcedureSteps
isolation sheet

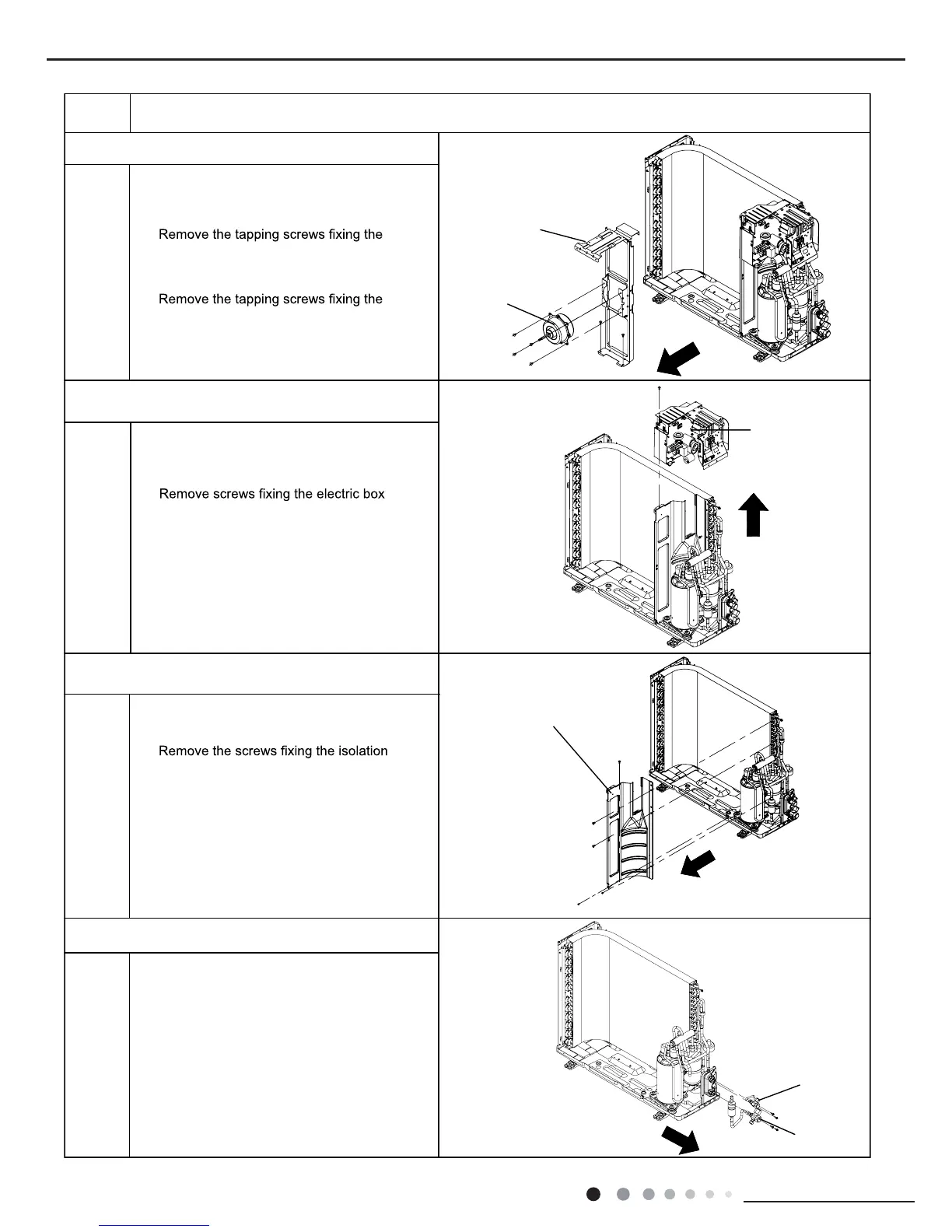

8. Remove motor and motor support
9. Remove Electric Box Assy
10. Remove isolation sheet
11. Remove compressor
liquid valve
gas valve
a
To Next Page
