9.3 Advanced control panel
The motors can be fitted with the advanced control
panel as an option.

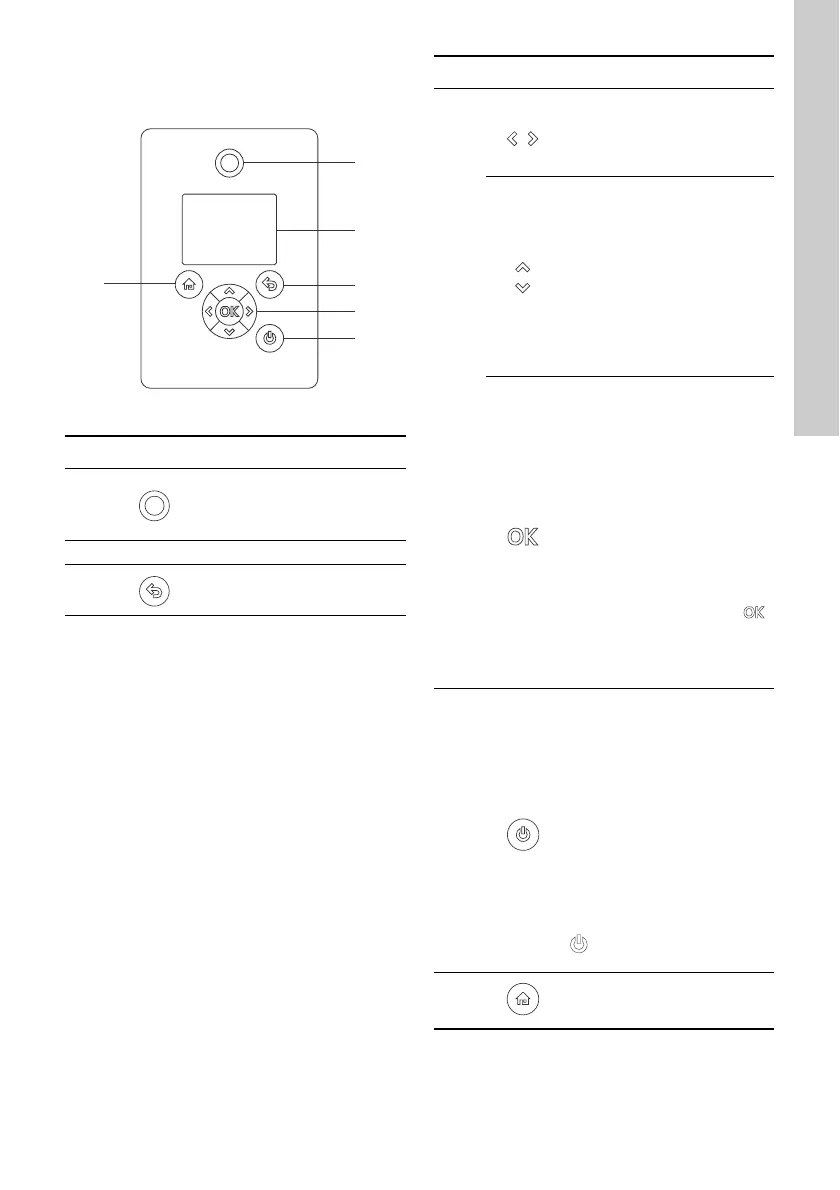

Fig. 23 Advanced control panel
TM05 4849 1013
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of
the motor.
See section 13. Grundfos Eye.
2 - Graphical colour display.
3 Goes one step back.
4
Navigates between main
menus, displays and digits.
When you change the menu,
the display always shows the
top display of the new menu.
Navigates between submenus.
Changes value settings.
Note: If you have disabled the
possibility to make settings
with the ""Enable/disable
settings"" function, then you
can enable it again temporarily
by pressing these buttons
simultaneously for at least 5
seconds. See section
10.27 "Buttons on product"
(""Enable/disable settings"").
Saves changed values, resets
alarms and expands the value
field.
Enables radio communication
with Grundfos GO and other
products of the same type.
When you try to establish radio
communication between the
motor and Grundfos GO or
another motor, the green
indicator light in Grundfos Eye
flashes. A note also appears in
the controller display stating
that a wireless device wants to
connect to the motor. Press
on the motor control panel to
allow radio communication with
Grundfos GO and other
products of the same type.
5
Makes the motor ready for
operation or starts and stops
the motor.
Start
If you press the button when
the motor is stopped, the motor
starts if no other functions with
higher priority have been
enabled. See section
12. Priority of settings.
Stop
If you press the button when
the motor is running, the motor
always stops. When you stop
the motor via this button, the
icon appears in the bottom
of the display.
6 Goes to the ""Home"" menu.
Pos. Symbol Description
