Grundfos MGE Series User Manual

English (GB)
33
Measured parameter
Select one of the parameters listed below, i.e. the
parameter to be measured in the system by the
sensor connected to the analog input. See fig. 28.

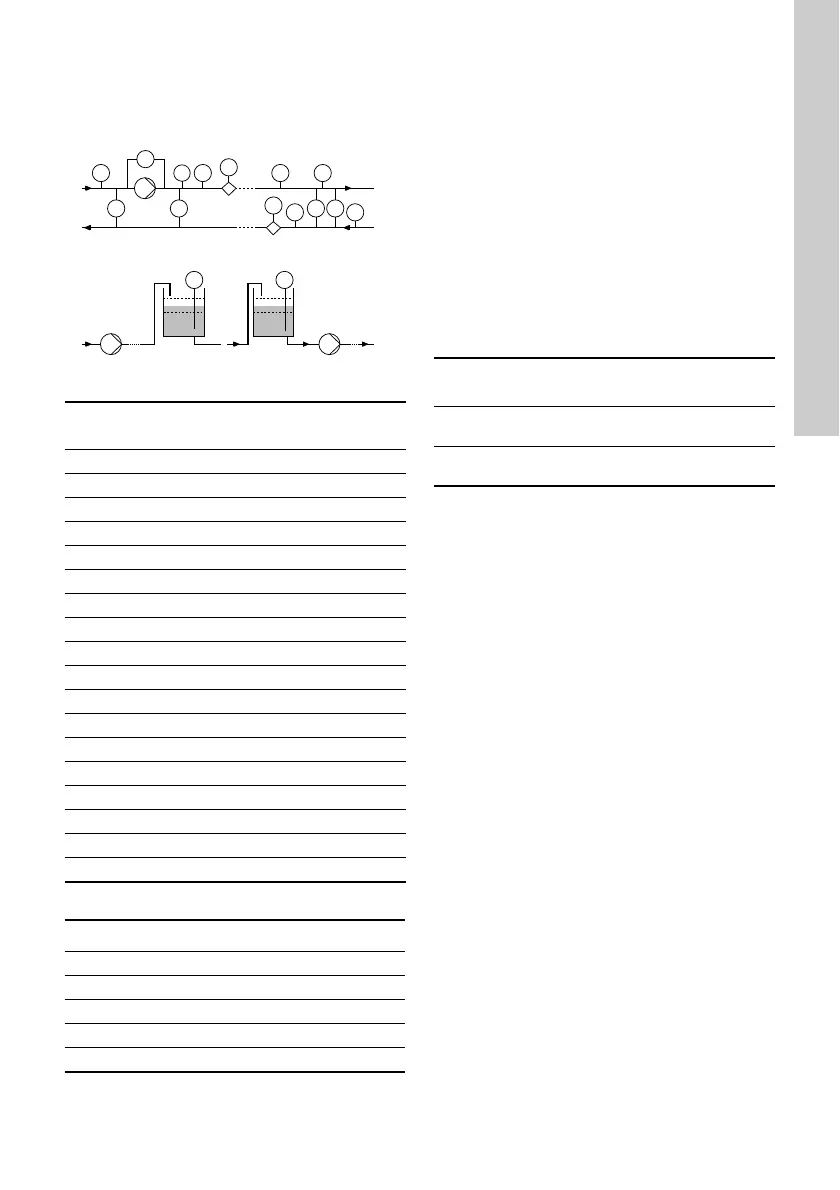

Fig. 28 Overview of sensor locations
"Unit"
"Electrical signal"
Select signal type:
• 0.5 - 3.5 V
•0-5 V
• 0-10 V
• 0-20 mA
• 4-20 mA.
Sensor range, minimum value
Set the minimum value of the connected sensor.
Sensor range, maximum value
Set the maximum value of the connected sensor.
10.6 ""Pt100/1000 inputs""
Available inputs depend on the functional module
fitted in the motor.
* See section 15. Identification of functional
module.
In order to set the Pt100/1000 input for a feedback
sensor, we recommend that you do this via the
""Assisted pump setup"" menu. See section
10.39 ""Assisted pump setup"" (Assisted motor
setup).
If you wish to set a Pt100/1000 input for other
purposes, you can do this manually.
Function
The Pt100/1000 inputs can be set to these functions:
• ""Not active""
• ""Feedback sensor""
The sensor is used for the selected control mode.
• ""Ext. setpoint infl.""
See section 10.13 ""External setpoint function"".
• ""Other function"".
TM06 2328 3914
Sensor function/measured
parameter
Pos.
Inlet pressure 1
Differential pressure, inlet 2
Outlet pressure 3
Differential pressure, outlet 4
Differential pressure, pump 5
Pressure 1, external 6
Pressure 2, external 7
Differential pressure, external 8
Storage tank level 9
Feed tank level 10
Pump flow 11
Flow, external 12
Liquid temperature 13
Temperature 1 14
Temperature 2 15
Differential temperature, external 16
Ambient temperature Not shown
Other parameter Not shown
Parameter Possible units
Pressure "bar", "m", "kPa", "psi", "ft"
Level m, ft, in
Pump flow m
3
/h, l/s, yd
3
/h, gpm
Liquid temperature °C, °F
Other parameter %
PT PT PT
PT
TT
TT
TT
Q
Q
DPT
DPT DPT
LT LT
DPT DTT
1
5
24
910
7
12
816 15
313 6 14
11
Function (terminal)
FM 200*
(standard)
FM 300*
(advanced)
Setting the Pt100/1000
input 1 (17, 18)
- ●
Setting the Pt100/1000
input 2 (18, 19)
- ●
