6. Fit the terminal box cover, and make sure that it
is also turned 180 ° so that the buttons on the
control panel are aligned with the buttons on the
plastic cover.
7. Tighten the four screws (TX25) with 5 Nm.

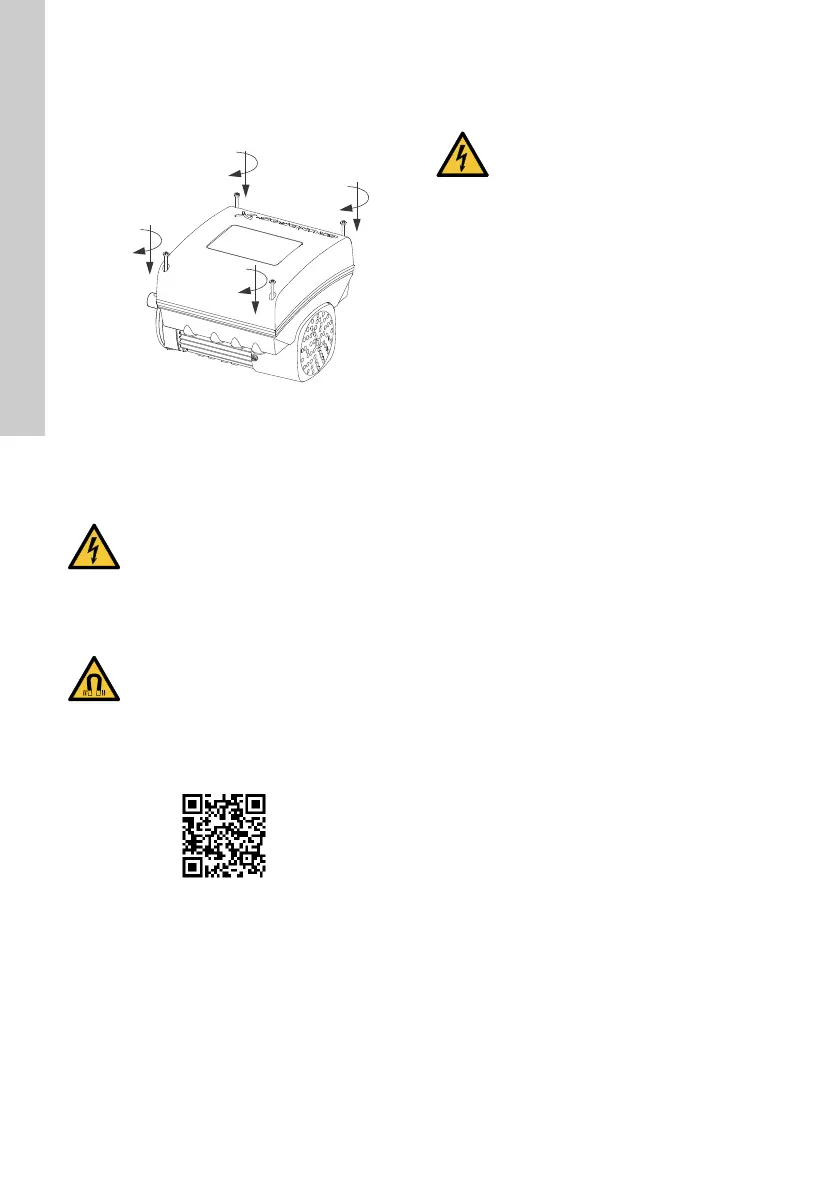

Fig. 62 Fitting the terminal box cover
18. Servicing the product
For servicing the product, download the service
instructions for the motor by using the following link
or QR code.
19. Cleaning the product
In order to avoid condensation in the motor, let the
motor cool down before spraying it with cold water.
TM064929 3115
DANGER
Electric shock
- Death or serious personal injury
- Switch off the power supply to the motor
and to the signal relays. Wait at least 5
minutes before starting any work on the
motor. Make sure that the power supply
cannot be accidentally switched on.
DANGER
Magnetic field
Death or serious personal injury
- Do not handle the motor or rotor if you
have a pacemaker.
QR98413121
http://net.grundfos.com/qr/i/98413121
WARNING
Electric shock
- Death or serious personal injury
- Switch off the power supply to the motor
and to the signal relays. Check that the
terminal box cover is intact before
spraying water on the product.
