9.5 R100 remote control
The motor is designed for wireless communication
with the Grundfos R100 remote control.

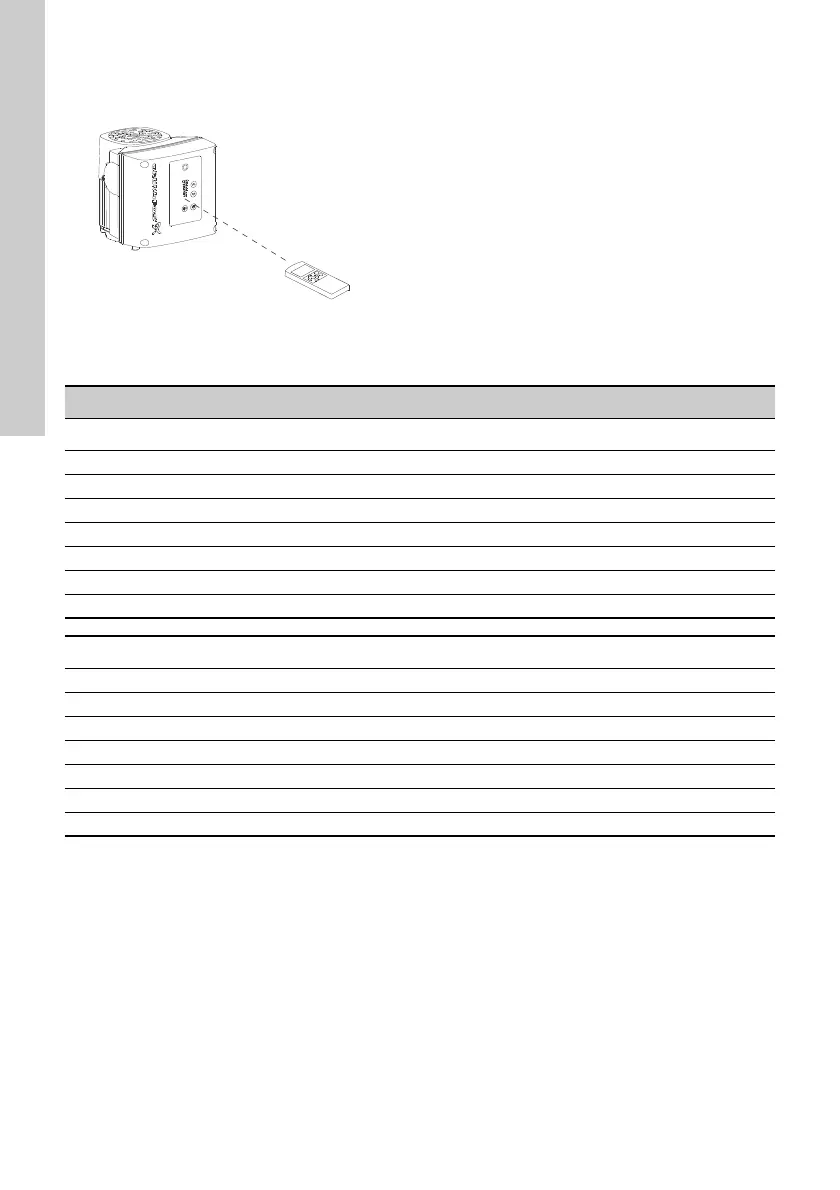

Fig. 26 R100 communicating with the motor via
infrared light
During communication, point R100 at the control
panel. When R100 communicates with the motor, the
indicator light in the middle of Grundfos Eye flashes
green. See page 51.
R100 offers additional possibilities of setting and
status displays for the motor.
The displays are divided into four parallel menus:
"0. GENERAL". See the operating instructions for
R100.
"1. OPERATION"
"2. STATUS"
"3. INSTALLATION."
See section 9.5.1 Menu overview for R100.
It may be necessary to update R100 to access the
new menus.
9.5.1 Menu overview for R100
TM06 4927 3115
R100 remote control
General
"Switch off R100"
"Return to start"
"Delete all changes"
"Store settings"
"Call up settings"
"Store status data"
"Call up status data"
Operation Section Page
"Setpoint" 10.1 ""Setpoint"" 32
"Operating mode" 10.2 ""Operating mode"" 32
"Manual speed" 10.3 ""Set manual speed"" 32
"Alarm" 10.36 ""Alarm log"" 45
"Warning" 10.37 ""Warning log"" 45
"Alarm log 1 to 5"
"Warning log 1 to 5"
