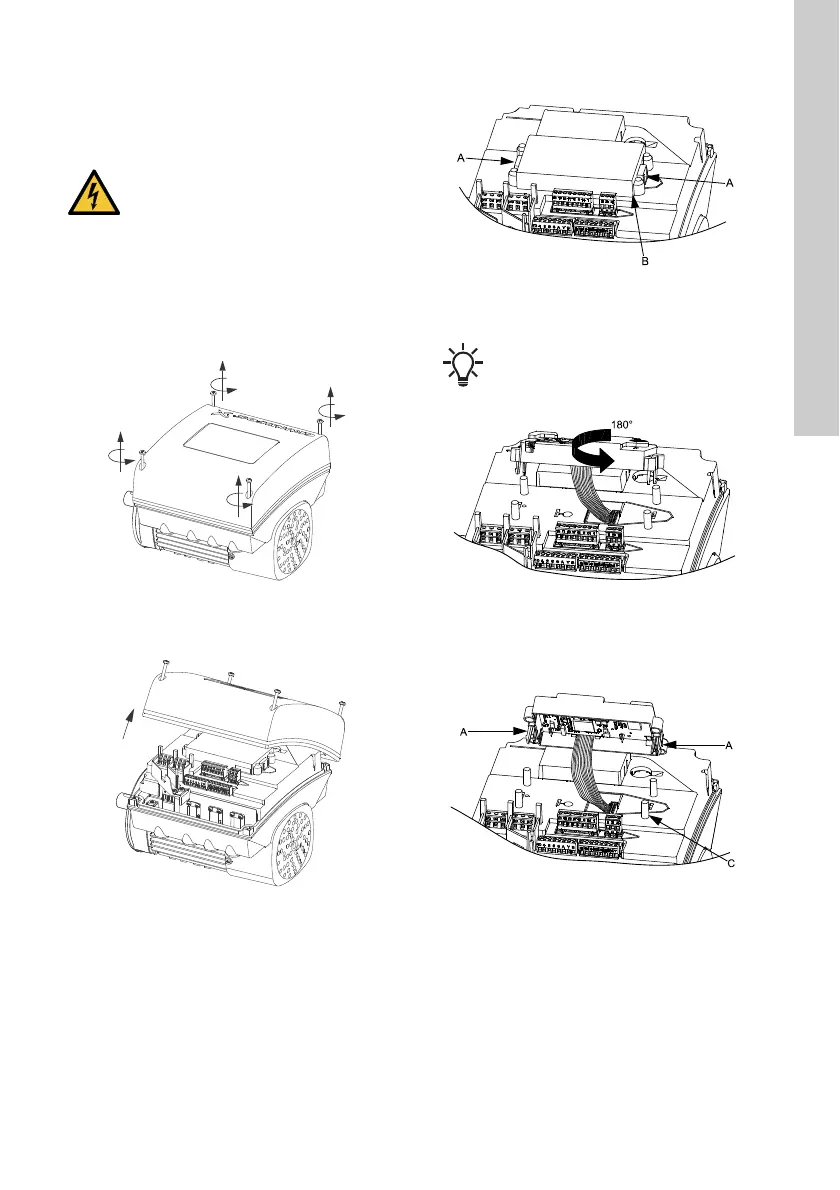

17. Changing the position of the
control panel
You can turn the control panel 180 °. Follow the
instructions below.
1. Loosen the four screws (TX25) of the terminal
box cover.
Fig. 57 Loosening the screws
2. Remove the terminal box cover.
Fig. 58 Removing the terminal box cover
3. Press and hold in the two locking tabs (A) while
gently lifting the plastic cover (B).
Fig. 59 Lifting the plastic cover
4. Turn the plastic cover 180 °.
Fig. 60 Turning the plastic cover
5. Position the plastic cover correctly on the four
rubber pins (C). Make sure that the locking tabs
(A) are placed correctly.
Fig. 61 Positioning the plastic cover
DANGER
Electric shock
- Death or serious personal injury
- Switch off the power supply to the motor
and to the signal relays. Wait at least 5
minutes before you start any work on
the motor. Make sure that the power
supply cannot be accidentally switched
on.
TM064915 3115TM064926 3115
TM05 5353 3612
Do not twist the cable more than 90 °.
TM05 5354 3612TM05 5355 3612
