Order No. TL1001S003V1.1
Rev.
Service Manual
Issue
1)Computer sequencer
It adopts pouring seal with polyurethane on the surface. The light-emitting diode
is sealed with insulation bushing to avoid humidit
y
.
To avoid splashing, the surface
of computer plate and box and the operation components of the control panel seat
are coated with control panel film.
2)Structure of the top lid
The top lid adopts transparent view window structure. If the top lid is closed, you
can observe the running of the washing machine through the transparent lid.

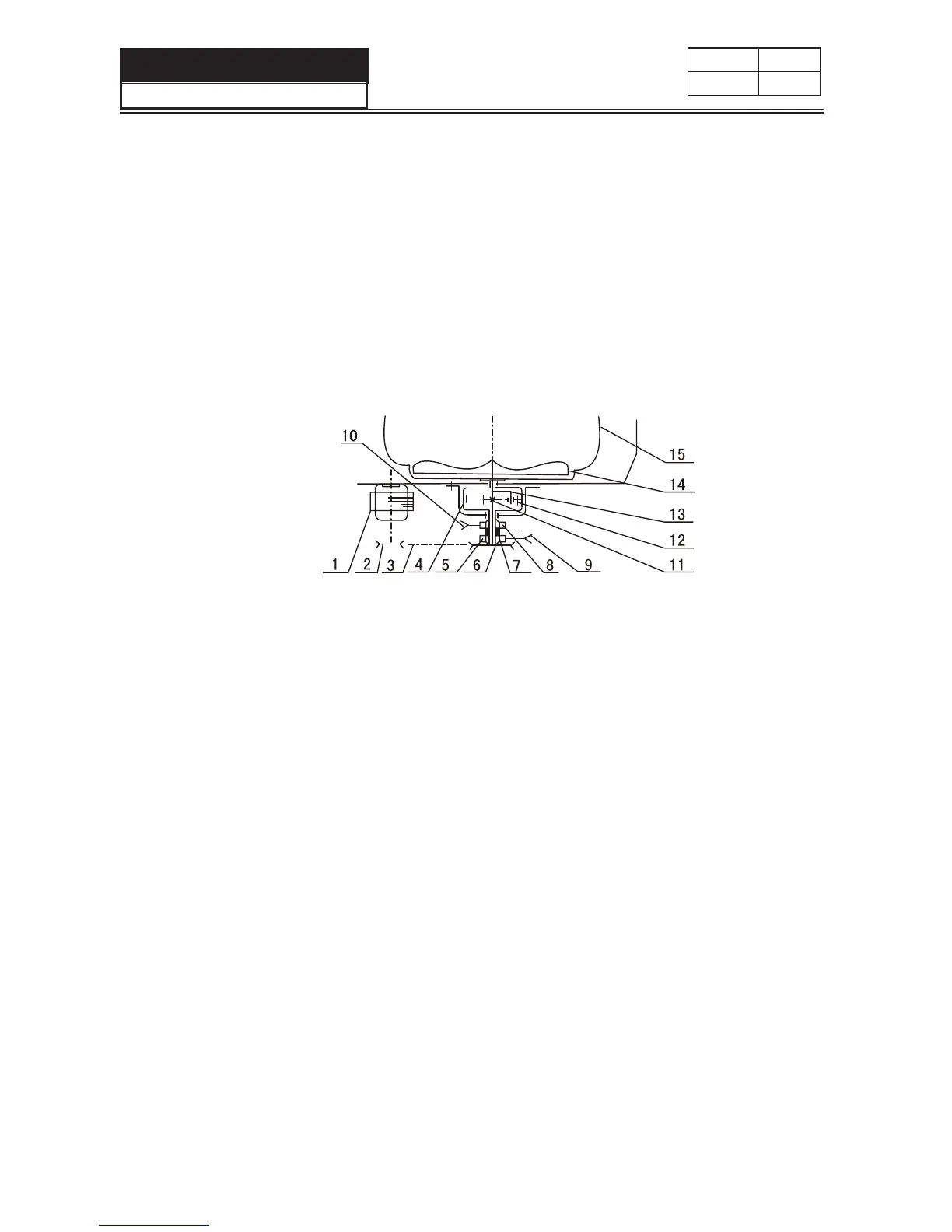

During washing, the rotation of Motor 1 is transferred to Follower 6 from Drive
Wheel 2 through Belt 3. Meanwhile, the puller makes the first action. The brake
belt is departed. Pawl 9 and 10 brake the Ratchet 5 and 8 by the action of spring.
The force will be transferred to Center Gear
1
1, and then be retarded and
transferred to Tie-rod 13 through a planetary gear mechanism consisting of Center
Gear 11, Planet Gear 12 and Spin Shaft 4 (inner gear), then Tie-rod 13 is
connected to Pulsator 14 via a spline shaft. The Pulsator 14 will move along with
the clockwise and counterclockwise rotation of the Motor 1. The Spin tub 15
rotates to the opposite direction against the pulsator by the action of the retarder
planetary gear mechanism.
During spinning, the rotation of Motor 1 is transferred to Follower 6 from Drive
Wheel 2 through Belt 3. Meanwhile, the puller will make the second action. The
Pawl 9 and 10 will leave Ratchet 5 and 8 by the action of the puller. Clutch Reed 7
is twisted tightly on the down part of Spin Shaft 4. The Spin 15 and Spin shaft 4
adopt flange connection. The movement of Motor 1 is retarded by V-belt 3, and
make Spin tub 15 spin through Spin shaft 4.
Please pay attention in installation of the hangers that the spring of the hanger
at the motor side (two) is different from those installed on the other hangers (two).
4-5 Product Brief
11
4)Damping system
3)Power transmission system
