Haier HLP24E Service Manual

Order No. TL1001S001V1.1
Issue
Service Manual
Rev.
8

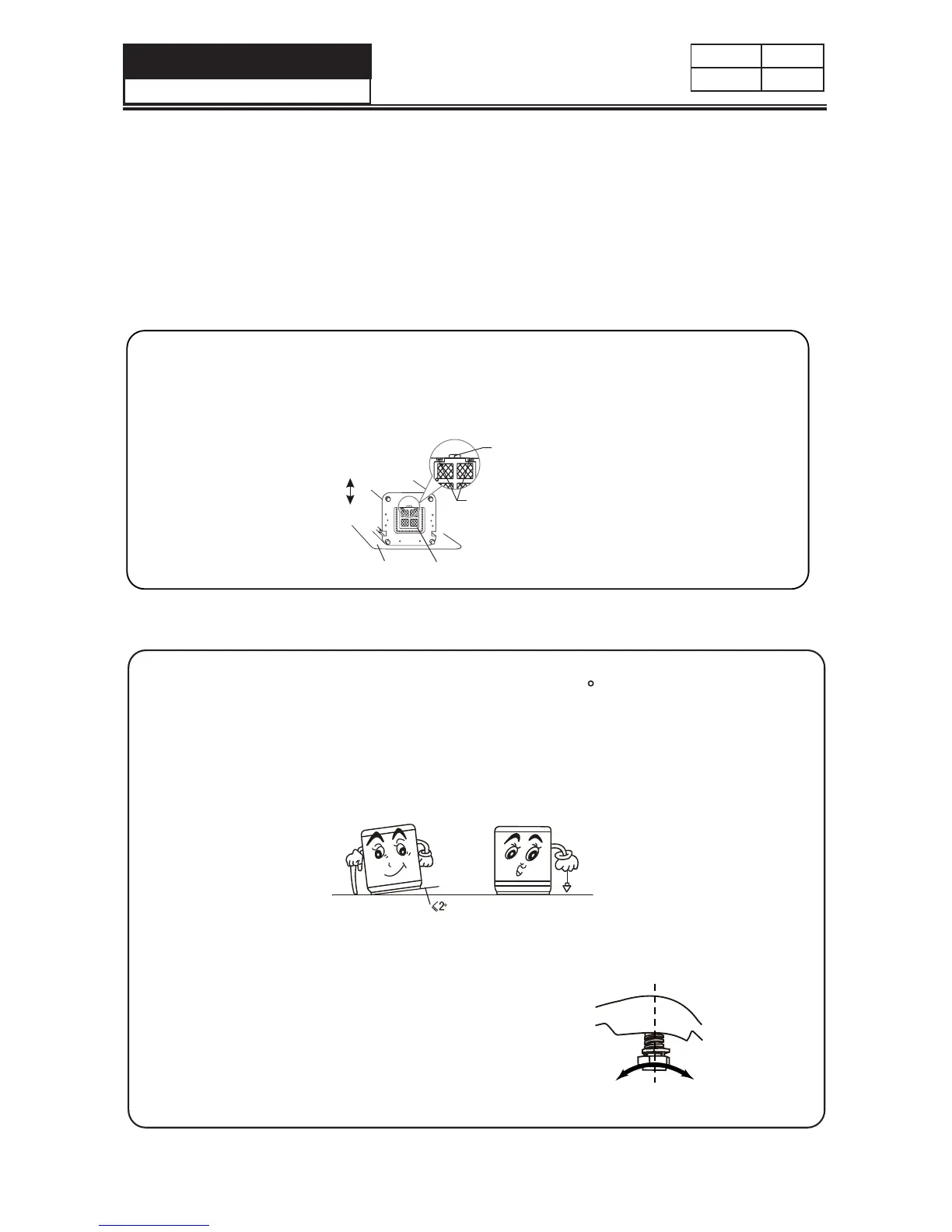

4-2. Install the bottom plate
Please install and adjust the machine according to the requirement of the mannual.
It is very important to your security and correct operating the machine.
Chapter4 Installation and accessory parts
4-1.Key points in installation
Carpet
Back
Front
Bottom plate
Screw
Two fasteners
Insert the bottom plate to the pedestal from the front to the back and the tow
fasteners to the opposite holes, then install the bottom plate to the pedestal with
the screw by a cross screwdriver . See to the figure : (Please firse pull off the
power plug from the receptacle before installing.)
4-3 Adjustment of the installation position
The washing machine away from wall should be overrun 20mm. The largest
allowable slope of the shank base of the machine is 2 The slanting or rough
ground will result in unstable running or stoppage of the machine. Please adjust
it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is horizontal.
Please lift up the side of the leg slightly,
twist the adjustable leg, make sure to keep the
washing machine in balance
Adjust the adjustable leg:
High
Adjustable leg
low

Haier HLP24E Specifications

General

Door hinge	Up
Drum volume	42.4 L
Control type	Buttons
Display type	LED
Loading type	Top-load
Drum material	Stainless steel
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption washing per cycle	- kWh
Drum capacity	- kg
Spin-drying class	-
Maximum spin speed	800 RPM
Noise level (spin)	- dB
Load balancing system	No
Number of washing programs	3

Weight and Dimensions

Depth	510 mm
Width	500 mm
Height	901.7 mm
Weight	19504 g
