22
HARDI
®
FOAM MARKER STANDARD VERSION

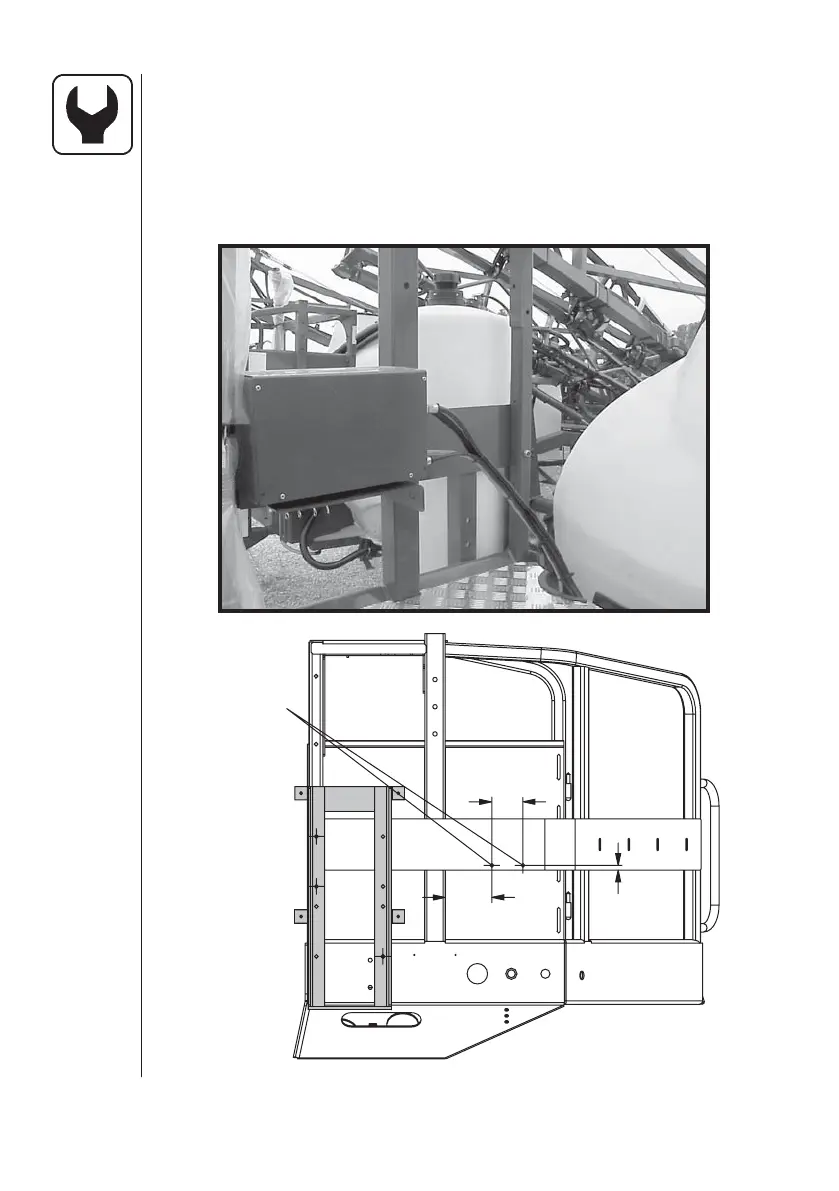

1. Use the measurements in (Fig. 20) to locate and drill two 7/16" dia.
holes for mounting the Compressor Box to the inside of the platform.
2. Place the Compressor Box on the mounting bracket with hose fi ttings
facing the rear of the sprayer.
8.4 Commander plus 750, 1200 & Twin Force
1"
(25mm)
3-1/2"
(90mm)
5-3/8"
(135mm)
COMPRESSOR
BRACKET
HOLES
Fig. 20
