10.2 Falcon or MB Booms
- For fi tting the Foam Dropper mount bracket to the Falcon or MB
Boom outer wing the following kit is required (Kit #741526)
- These components are to sub sti tute the mount bracket which is fi t-
ted to the Foam Dropper as sem bly. Mount the new com po nents as
shown in (Fig. 26) and discard the unused components.
- Mount the Foam Dropper mount bracket as close to the outer nozzle
as possible (Fig. 27).
- Adjust the breakaway tension by tightening or loosening the pivot bolt.
- Connect the clear reinforced hose to the
3
/
4
”
90° hose barb on the Foam Dropper as sem bly
and to the
3
/
4
” hose barb on the Foam Genera-
tor assembly.
- Secure the hose with cable ties as nec es sary.
- Connect the polyethylene 8mm and 10mm
hoses to the fi ttings at the base of the Foam
Generator.

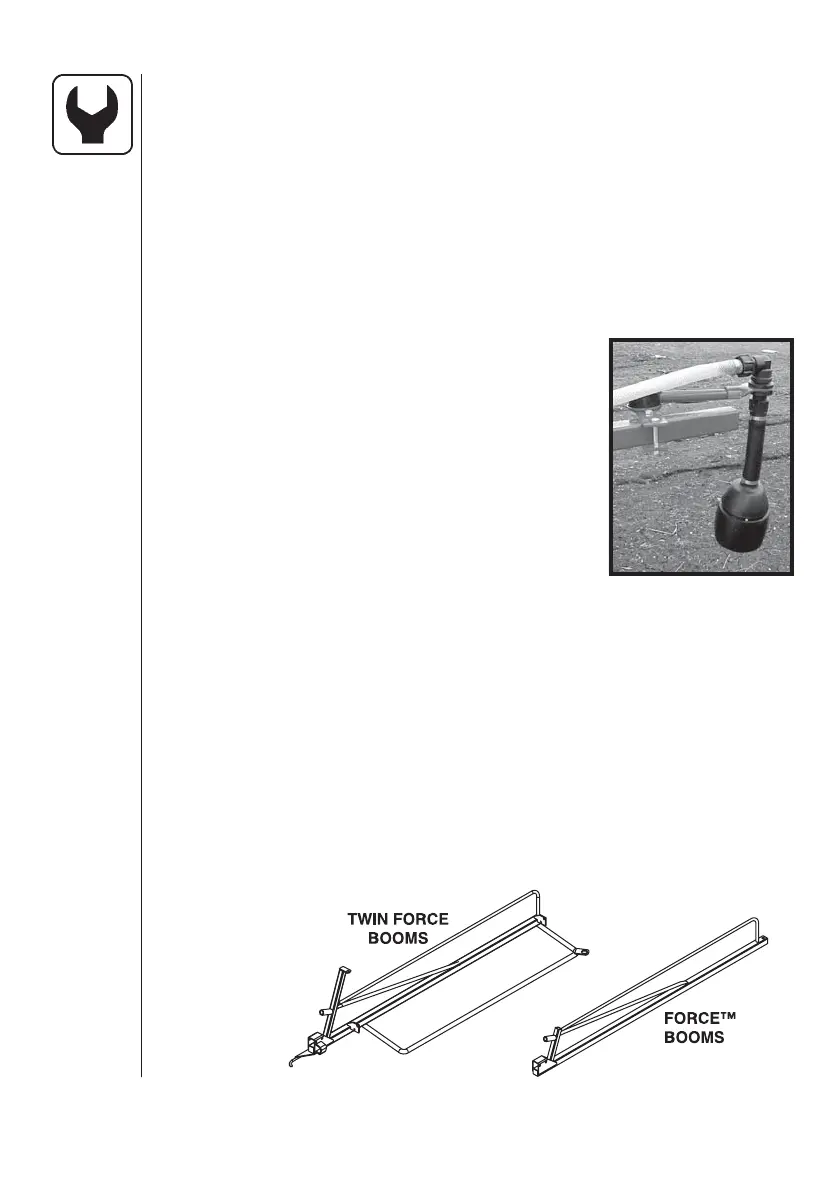

10.3 Force™ or Twin Force Booms
- A mount tab (A) for the Foam Dropper as-
sembly is fi xed to the outer edge of the breakaway frame. The Foam
Dropper assembly is to be removed from the mount bracket arm and
refi tted to the mount tab (Fig. 28).
- connect the clear reinforced hose to the
3
/
4
” 90° hose barb on the
Foam Dropper assembly and to the
3
/
4
” hose barb on the Foam Gen-
erator assembly.
- Secure the hose with cable ties as necessary.
- connect the polyethylene 8mm and 10mm hoses to the fi ttings at the
base of the Foam Gen er a tor.
