Harman JBL AURA WALL MOUNT STEREO User Manual

3. Power ON the unit.
2. Connect the other end to the optical out jack of the DVD or TV back panel.
4. Press the button repeatedly until "OPTICAL" appears on the display.
NOTE: Before connecting, disconnect power.
Optical Cable(Not Supplied)
5. Play the audio in the external device as usual and set the desired volume.
Or press OPT button on the Remote Control.
If there is no audio output (only picture) when your TV or DVD player is connected to the AURA,
please check DVD or TV audio setting, and set the digital audio output to PCM format.
OPTICAL IN
Optical Out of
TV/DVD/Etc.
(referred to as
“Digital Out” on
some devices)
14 OPTICAL IN OPERATION
NOTE:
OPTICAL OUT
AUX 2
R L
R
L
Red
White
13 AUX 2 OPERATION

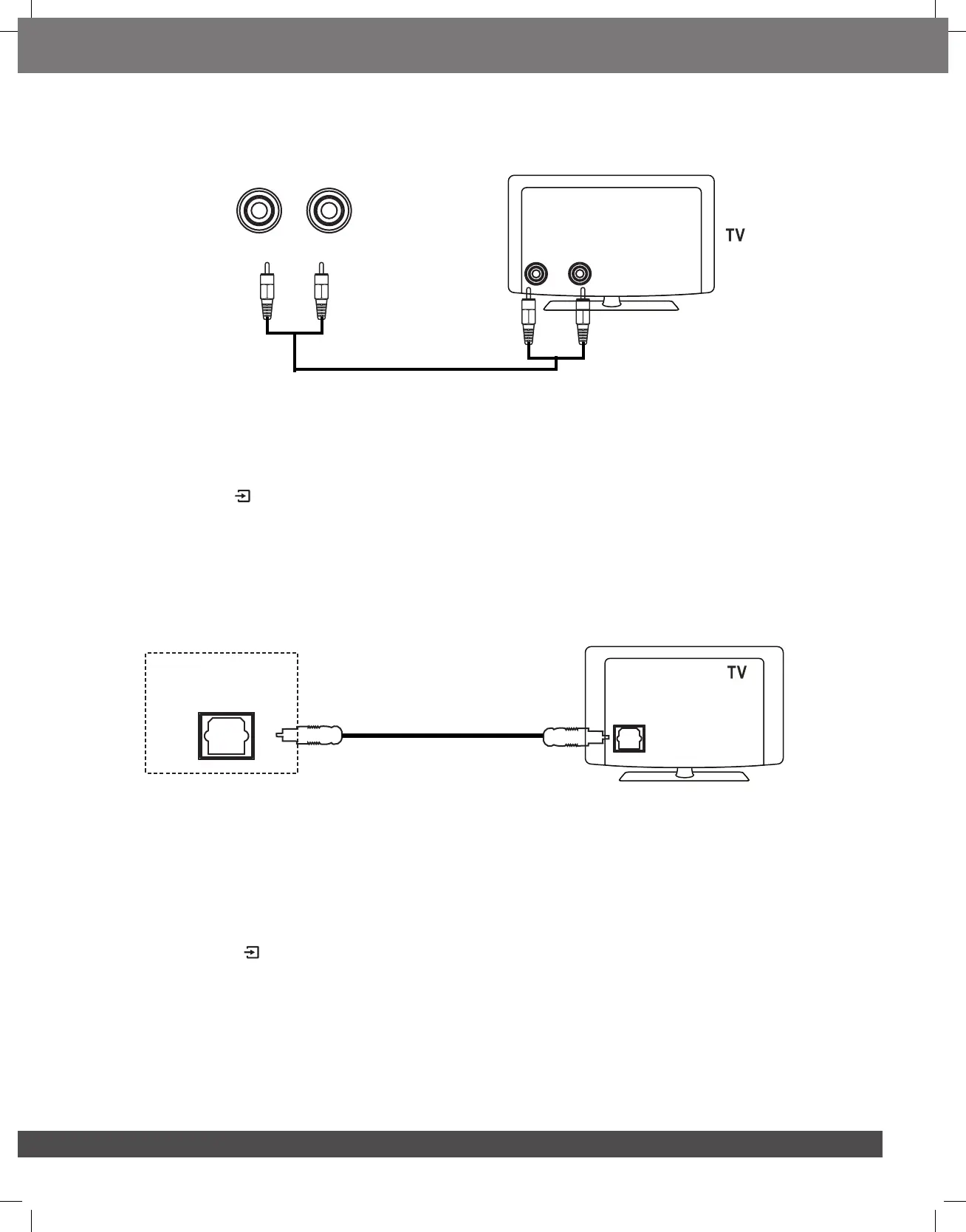

1. Plug one end of the audio cable into the AUX 2 jack(L&R) on the rear of AURA Wall Mount Stereo.
2. Plug the other end of the audio cable into the LINE OUT jack(L&R) on TV, DVD Player etc.
4. Press the button repeatedly until "AUX 2" appears on the display.
5. Play the audio in the external device as usual and set the desired volume.
Or press AUX 2 button on the Remote Control.
3. Power ON the unit.
Red
White
1. Connect one end of optical connection cable ( not supplied ) to the optical in jack on the rear of the AURA
Wall Mount Stereo.
15
(not supplied)
