Harman JBL AURA WALL MOUNT STEREO User Manual

12V DC
Power
Extension
RED - POWER IN 12V +
15A FUSE
BLACK - POWER GND
RED - POWER IN 12V +
BLACK - POWER GND
WHITE - B LEFT +
BLUE/BLACK - A RIGHT -
15A FUSE
WHITE/BLACK - B LEFT -
BLUE - A RIGHT +
GRAY - B RIGHT +
ORANGE/BLACK - A LEFT -
GRAY/BLACK - B RIGHT -
ORANGE - A LEFT +
VIOLET/BLACK - C RIGHT -
GREEN - C LEFT +
VIOLET - C RIGHT +
GREEN/BLACK - C LEFT -

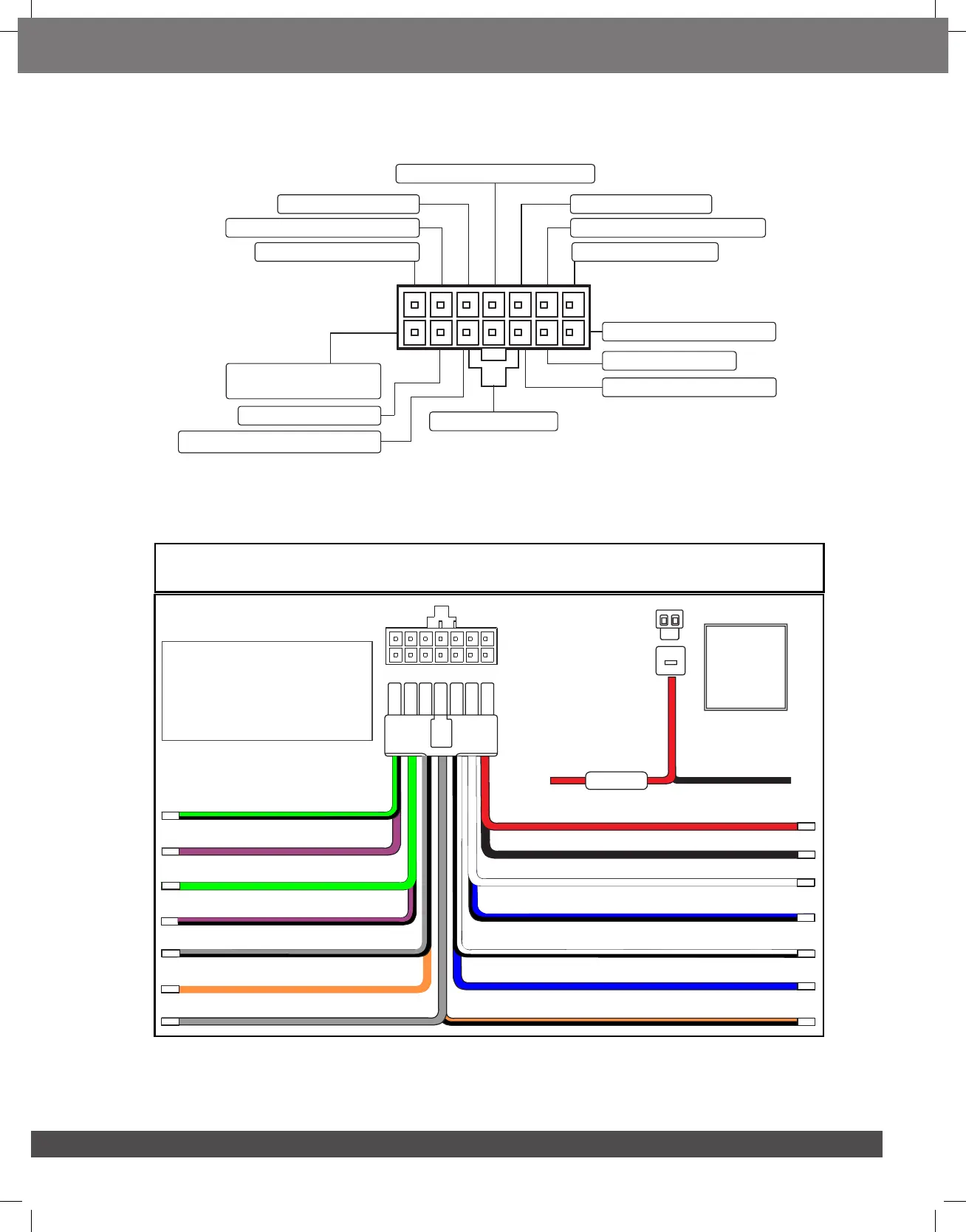

SPEAKER (6X4-ohms) WIRING COLOR CODE GUIDE
CAUTION!
Connecting the speakers
incorrectly will cause distortion
and damage the power
amplifier.
GRAY-B RIGHT +
GRAY/BLACK-B RIGHT-
BLACK-POWER GND
RED-POWER IN 12V+
15A FUSE
GREEN-C LEFT +
GREEN/BLACK-C LEFT-
VIOLET-C RIGHT+
BLUE/BLACK-A RIGHT-
BLUE-A RIGHT+
ORANGE/BLACK-A LEFT-
VIOLET/BLACK-C RIGHT-
WHITE-B LEFT+
WHITE/BLACK-B LEFT-
ORANGE-A LEFT+
4 SPEAKER/POWER WIRE SOCKET DIAGRAM
7
