135HEIDENHAIN TNC 426 B, TNC 430
7.2 Miscellaneous Functions for Pro-
gram Run Control, Spindle and
Coolant
M Effect Effective at
M00 Stop program run Block end
Spindle STOP
Coolant OFF
M02 Stop program run Block end
Spindle STOP
Coolant OFF
Go to block 1
Clear the status display (dependent on
machine parameter 7300)
M03 Spindle ON clockwise Block start
M04 Spindle ON counterclockwise Block start
M05 Spindle STOP Block end
M06 Tool change Block end
Spindle STOP
Program run stop (dependent on
machine parameter 7440)
M08 Coolant ON Block start
M09 Coolant OFF Block end
M13 Spindle ON clockwise Block start
Coolant ON
M14 Spindle ON counterclockwise Block start
Coolant ON
M30 Same as M02 Block end
7.3 Miscellaneous Functions for
Coordinate Data
Programming machine-referenced coordinates:
M91/M92

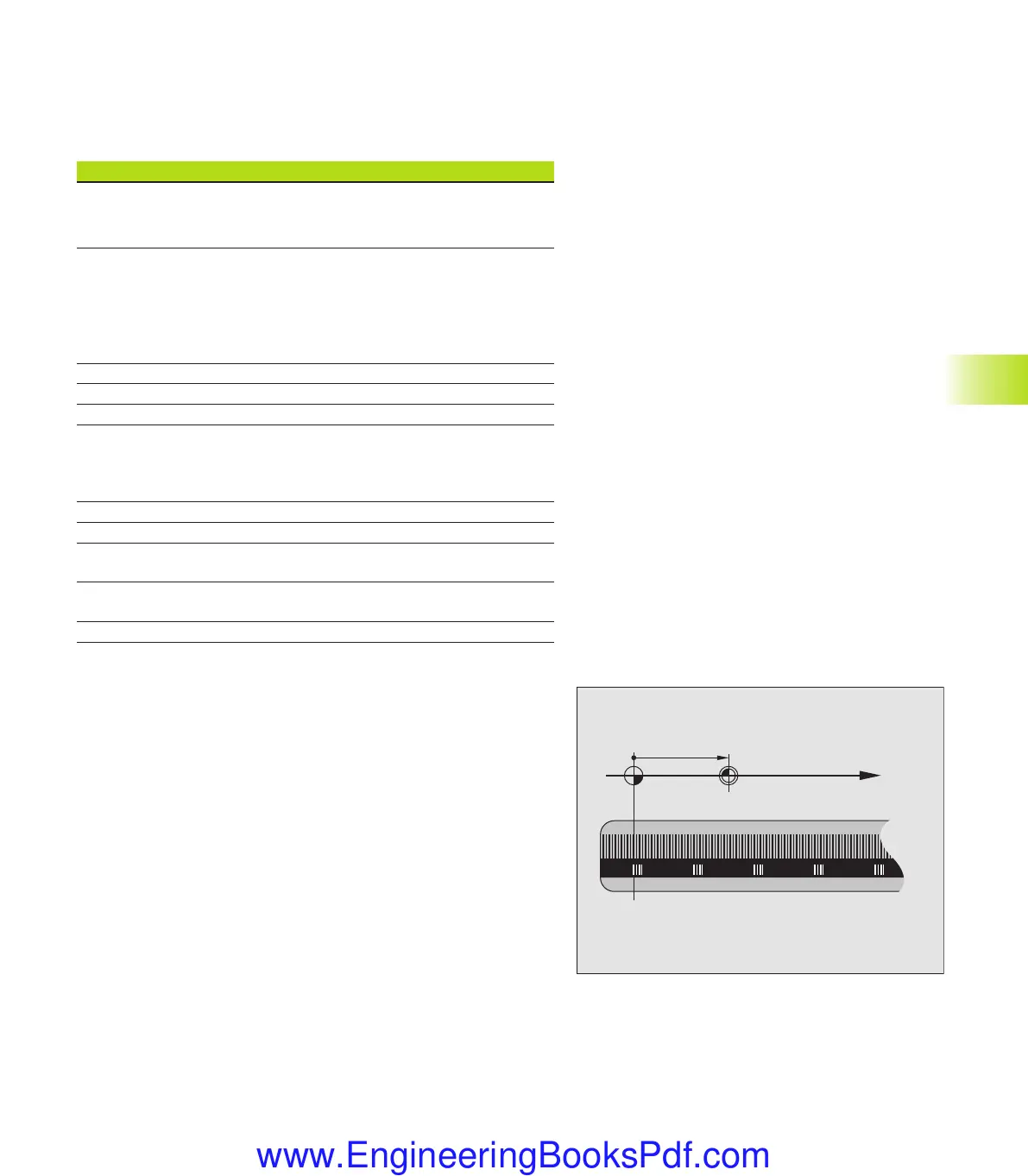

Scale reference point
On the scale, a reference mark indicates the position of the scale
reference point.
Machine datum
The machine datum is required for the following tasks:
■
Defining the limits of traverse (software limit switches)
■
Moving to machine-referenced positions (such as tool change
positions)
■
Setting the workpiece datum
X (Z,Y)
X
MP
7.2 Miscellaneous functions for Program Run Control, Spindle and Coolant;
7.3 Miscellaneous functions for Coordinate Data
