8 Programming: Cycles
236
X
Y
Z
8.8 Special Cycles

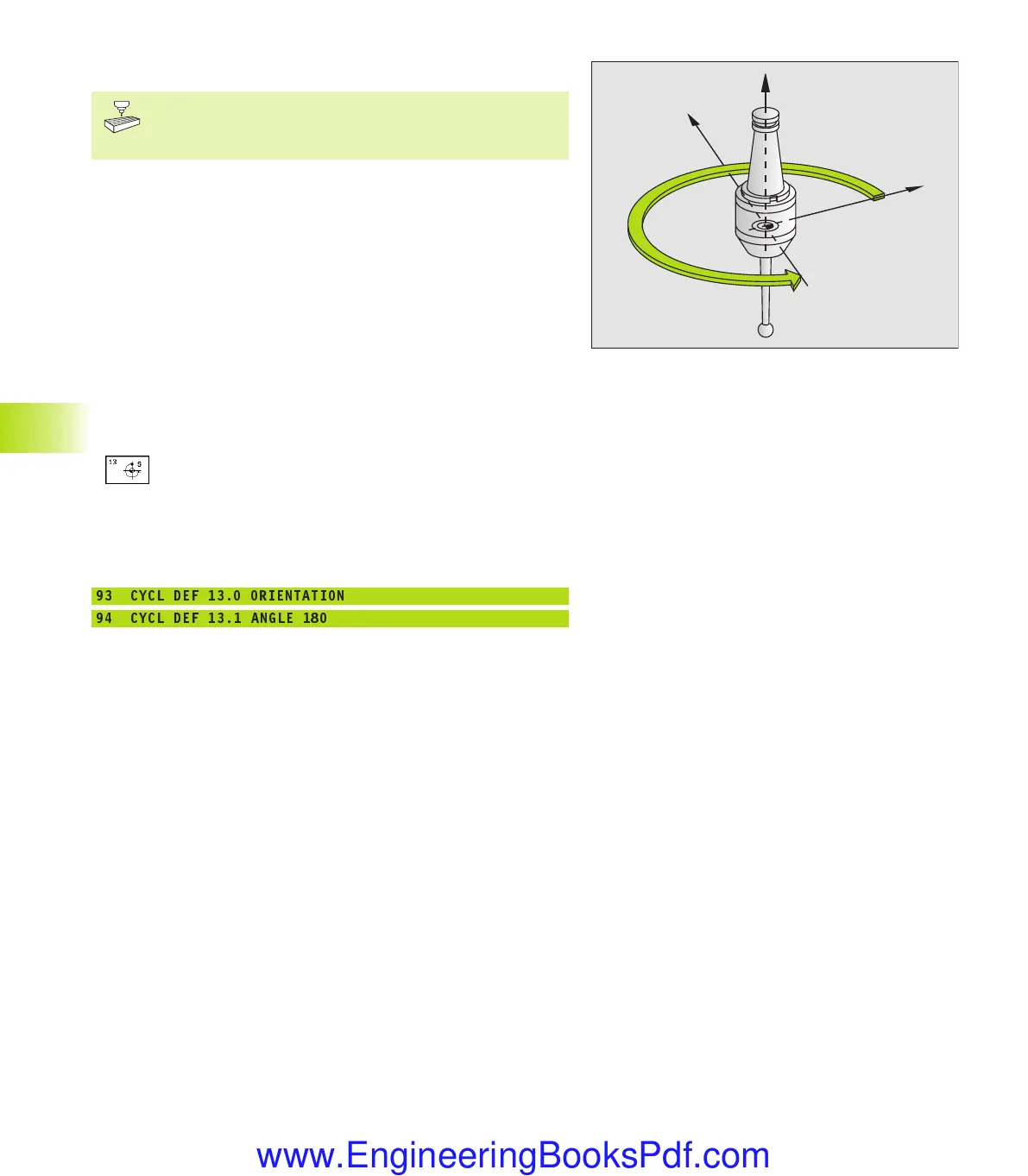

ORIENTED SPINDLE STOP (Cycle 13)
The TNC and the machine tool must be specially
prepared by the machine tool builder for the use of Cycle
13.
The control can control the machine tool spindle and rotate it to a
given angular position.
Oriented spindle stops are required for
■
Tool changing systems with a defined tool change position
■
Orientation of the transmitter/receiver window of HEIDENHAIN 3-
D touch probes with infrared transmission
Effect
The angle of orientation defined in the cycle is positioned to by
entering M19 or M20 (depending on the machine).
If you program M19 without having defined Cycle 13, the TNC
positions the machine tool spindle to an angle that has been set in
a machine parameter (see your machine manual).
ú
Angle of orientation: Enter the angle according to the
reference axis of the working plane.
Input range 0 to 360°
Input resolution 0.1°
Example NC blocks
93 CYCL DEF 13.0 ORIENTATION
94 CYCL DEF 13.1 ANGLE 180
