HEIDENHAIN TNC 430 CA User Manual

8 Programming: Cycles
168
8.3 Cycles for milling pockets, studs
and slots

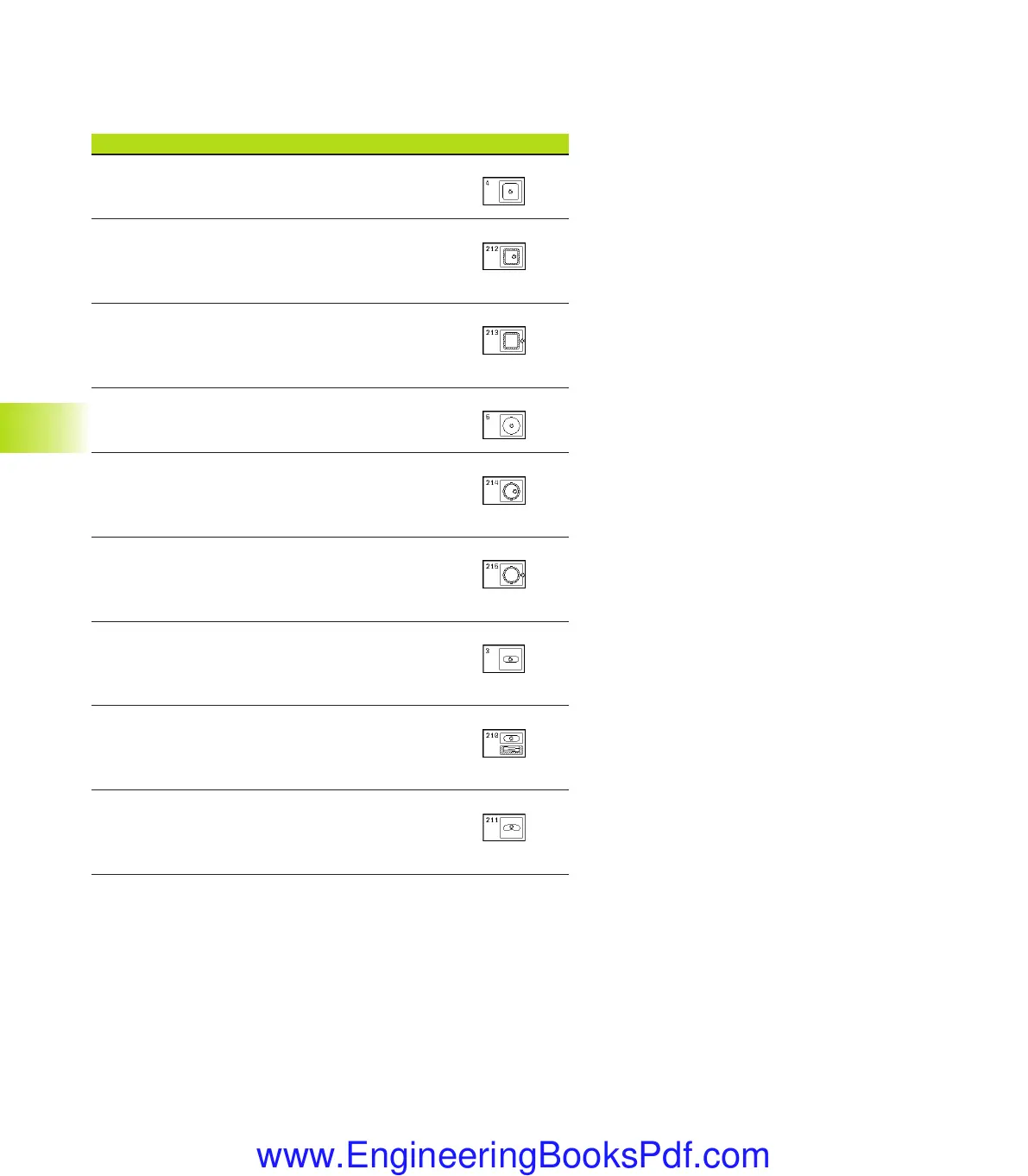

Cycle Soft key
4 POCKET MILLING (rectangular)
Roughing cycle without automatic pre-positioning
212 POCKET FINISHING (rectangular)
Finishing cycle with automatic pre-positioning and
2nd set-up clearance
213 STUD FINISHING (rectangular)
Finishing cycle with automatic pre-positioning and
2nd set-up clearance
5 CIRCULAR POCKET MILLING
Roughing cycle without automatic pre-positioning
214 CIRCULAR POCKET FINISHING
Finishing cycle with automatic pre-positioning and
2nd set-up clearance
215 CIRCULAR STUD FINISHING
Finishing cycle with automatic pre-positioning and
2nd set-up clearance
3 SLOT MILLING
Roughing/finishing cycle without automatic
pre-positioning, vertical downfeed
210 SLOT WITH RECIPROCATING PLUNGE-CUT
Roughing/finishing cycle with automatic
pre-positioning and reciprocating plunge-cut
211 CIRCULAR SLOT
Roughing/finishing cycle with automatic
pre-positioning and reciprocating plunge-cut
8.3 Cycle for Milling Pockets, Studs and Slots
