HEIDENHAIN TNC 430 CA User Manual

HEIDENHAIN TNC 426 B, TNC 430 333

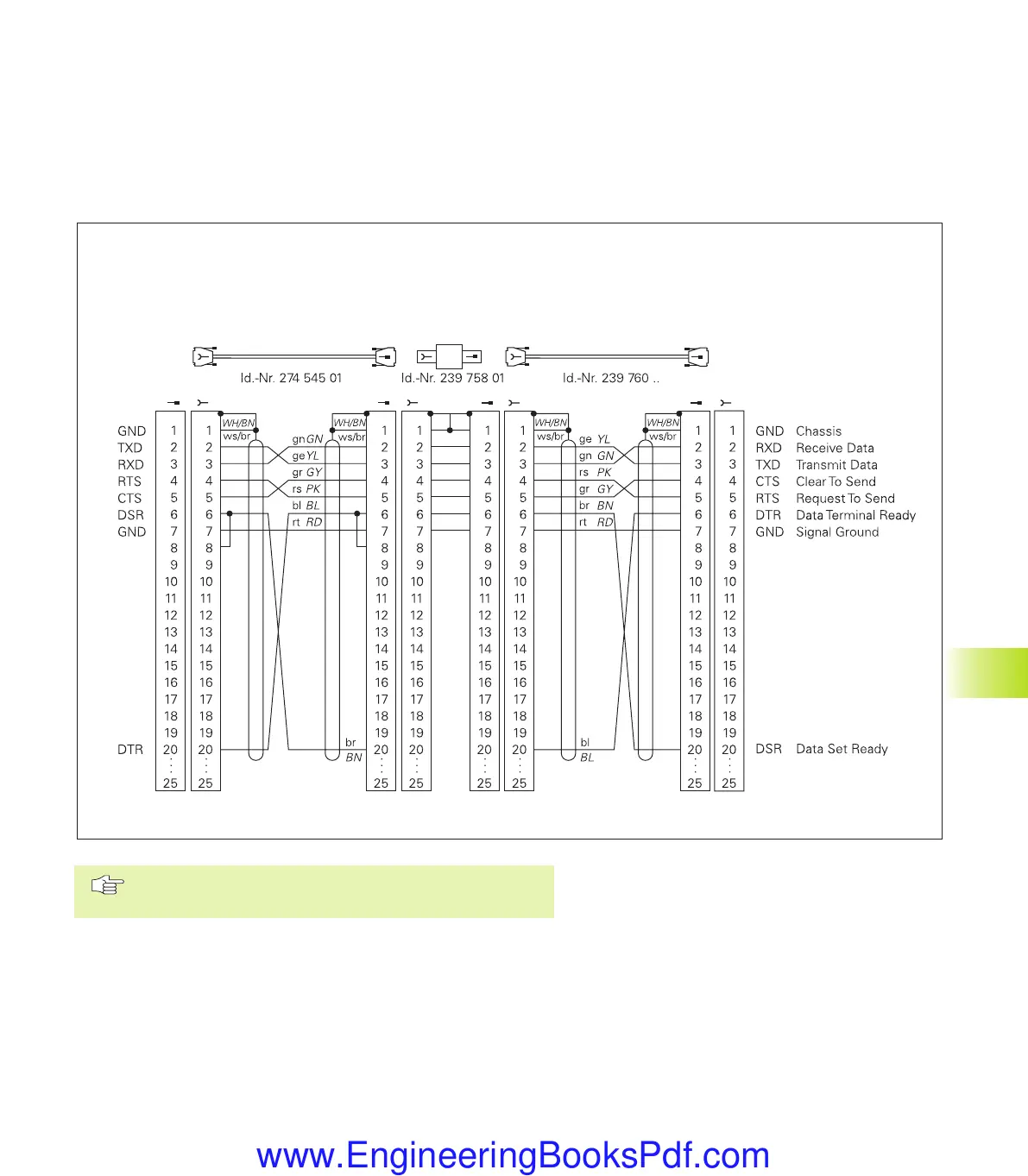

13.2 Pin Layout and Connecting Cable for the Data Interfaces
13.2 Pin Layout and Connecting Cable
for the Data Interfaces
RS-232-C/V.24 Interface
HEIDENHAIN devices
The connector pin layout on the adapter block differs
from that on the TNC logic unit (X21).
HEIDENHAIN devices
External
device
e.g. FE
HEIDENHAIN
standard cable
3 m
RS-422 Adapter
block
HEIDENHAIN
connecting cable
max. 17 m
X21
TNC
Pkap13.pm6 30.06.2006, 07:04333
