Hengstler eXtendo X-80 User Manual

eXtendo
®
Thermal Printer Family
HENGSTLER
Part No. D 684 124 Mod. No. 4 080812 LEV page 24 of 38

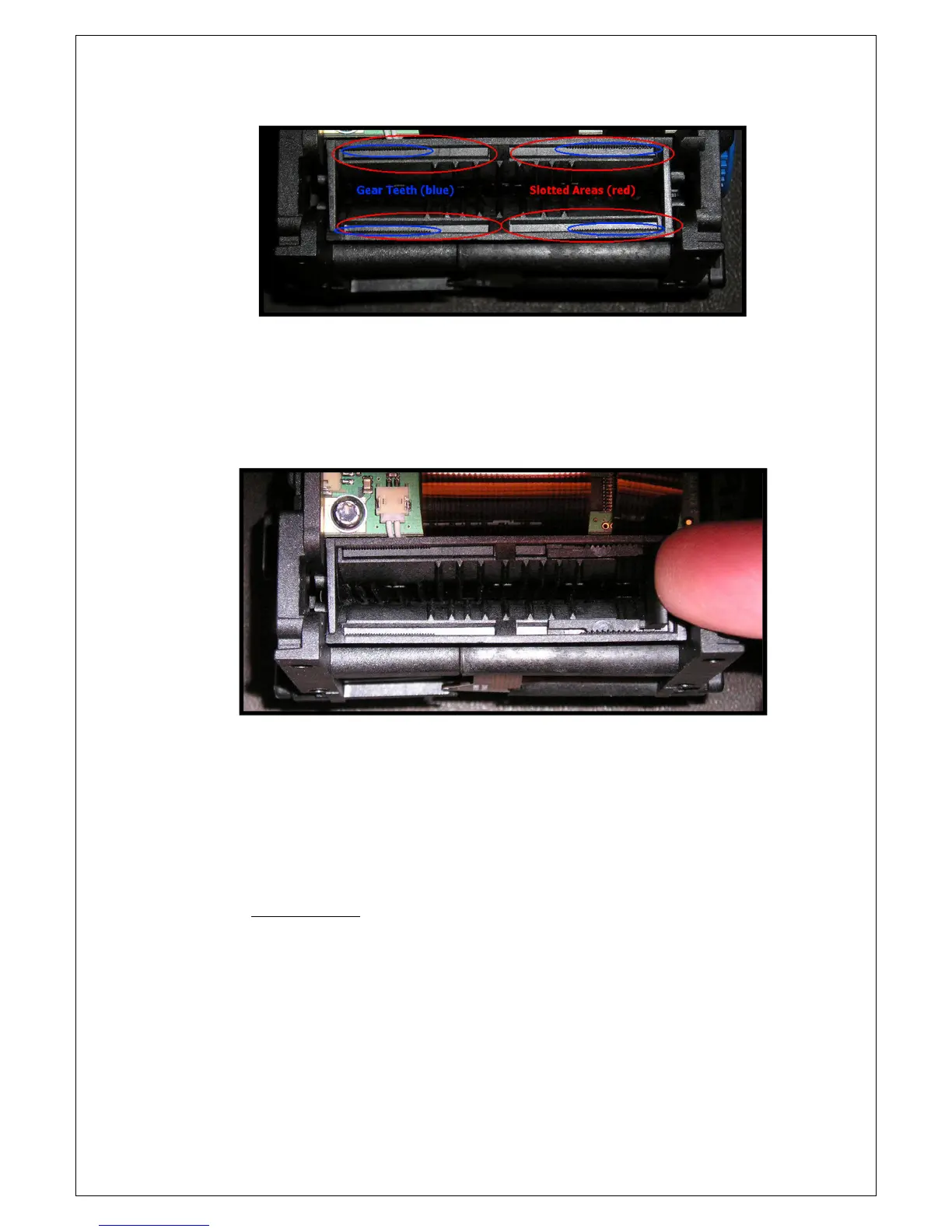

Figure 10
3. Slide the paper guide all the way to the outer edge of the slotted area. Press on first one,
then the other of the arms to snap these two tabs into place.
4. The paper guide is now installed. Push or pull on the end of the paper guide to position it
where desired. (See figure 11.) You will hear the paper guide click as it locks into each
position.
Figure 11
6.4. Wiring
6.4.1. Power
Power is connected to the eXtendo
®
thermal printer via a JST connector. The
connector consists of a JST VHR-2N (RA 3.96) shell and two SVH-21T-P1.1
contacts. Wiring is as follows:
Pin Function
1 24 VDC (-)
2 24 VDC (+)
The upper contact on the connector is common; the lower contact is the positive (+)
voltage. See the “Sleep Mode” section for connection of power when equipped with
the Sleep Mode option.
