Network Speed Dome User Manual
113
6.4 Configuring System Settings
6.4.1 System Setting
Viewing Basic Information
Enter the Basic Information interface:
Configuration > System > System Settings > Basic Information
In the Basic Information interface, you can edit the Device Name.
Other information of the network speed dome, such as Model, Device No., Serial No.,
Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number
of Alarm Input and Number of Alarm Output are displayed. The information cannot
be changed in this menu. It is the reference for maintenance or modification in
future.

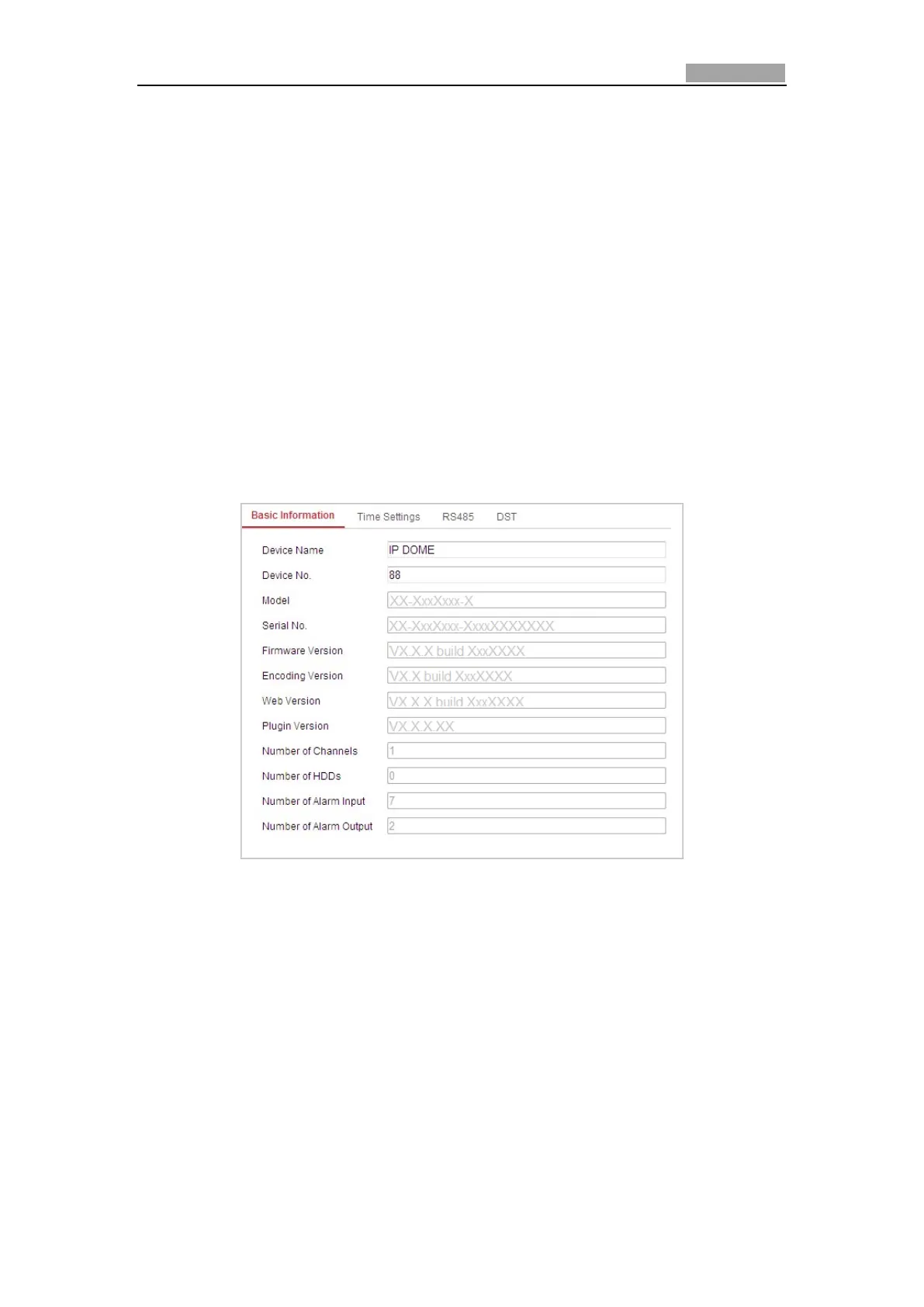

Figure 6-38 Device Information
Time Settings
Purpose:
You can follow the instructions in this section to configure the time which can be
displayed on the video. There are Time Zone, Time Synchronization, Daylight Saving
Time (DST) functions for setting the time. Time Synchronization consists of auto
mode by Network Time Protocol (NTP) server and manual mode.
To enter the Time Settings interface:
Configuration > System > System Settings > Time Settings

HIKVISION DS-2DF8836IX-AEL Specifications

General

Camera Type	PTZ Dome Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max Resolution	3840 × 2160
Optical Zoom	36x
Digital Zoom	16x
Pan Range	360° endless
Preset	300
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Network Interface	1 RJ45 10 M/100 M/1000 M Ethernet Interface
Effective Pixels	3840 × 2160
Vertical Field of View	33.6° to 1.0° (Wide-Tele)
Minimum Illumination	0 Lux with IR
Tilt Range	-15° to 90°
Tilt Speed	0.1° - 200°/s
Bit Rate	32 Kbps to 16 Mbps
Protocols	IPv4, IPv6, HTTP, HTTPS, FTP, SNMP, 802.1X, QoS, Bonjour
Power Supply	24 VAC
Operating Conditions	-40°C to 70°C (-40°F to 158°F), Humidity ≤95%
Protection Level	IP67, IK10
Dimensions	Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight	Approx. 8 kg
Pan Speed	Pan Manual Speed: 0.1° to 210°/s, Pan Preset Speed: 240°/s
