Network Speed Dome User Manual
61
time schedule configuration is the same as the settings of the arming schedule
for motion detection. Refer to Step 2 in Section 5.2.1 Configuring Motion
Detection.

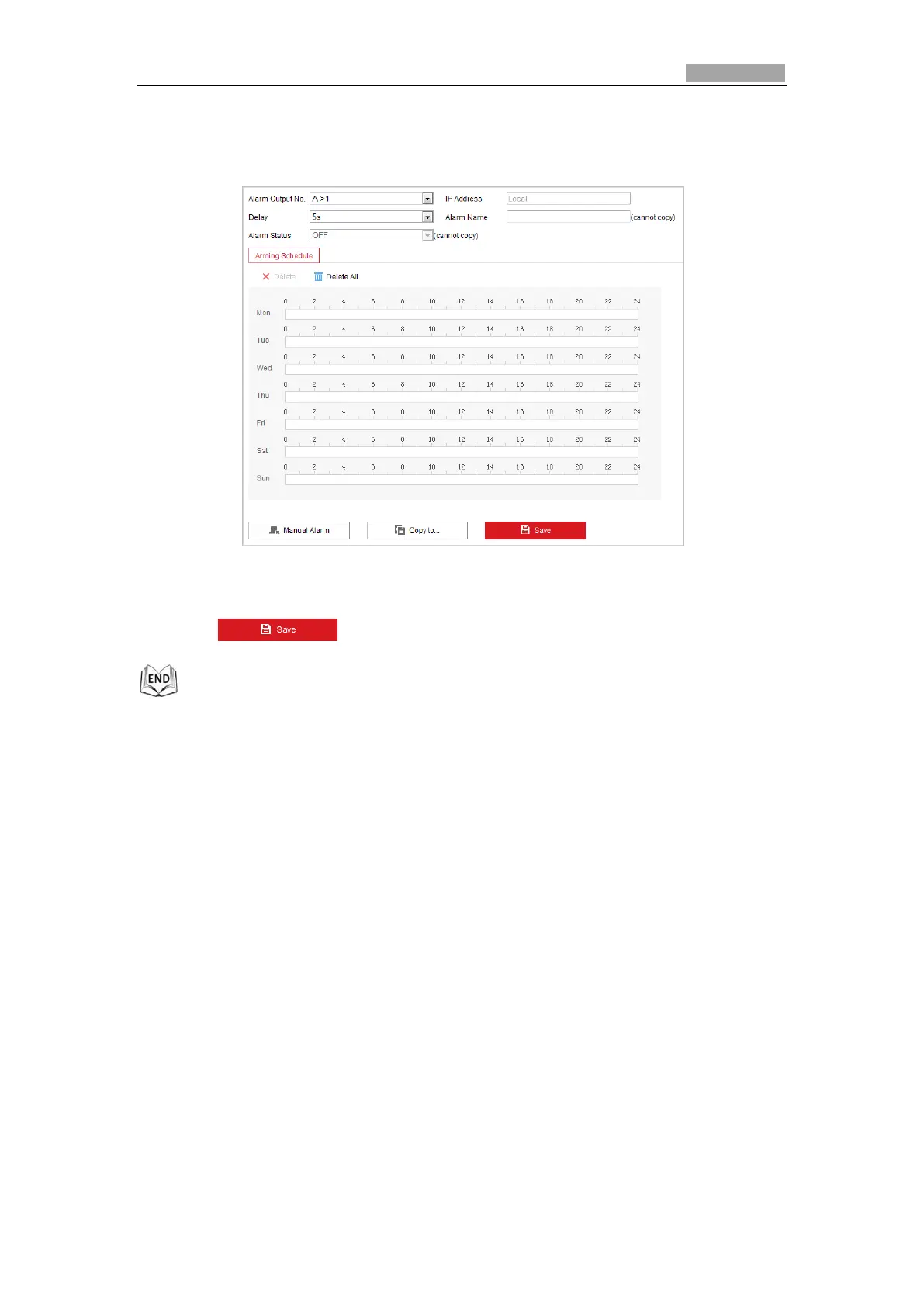

Figure 5-21 Alarm Output Settings
6. You can copy the settings to other alarm outputs.
7. Click to save the settings.
5.2.6 Handling Exception
The exception type can be HDD full, HDD error, network disconnected, IP address
conflicted and illegal login to the speed domes.
Steps:
1. Enter the Exception Settings interface:
Configuration > Event > Basic Event > Exception
2. Check the checkbox to set the actions taken for the Exception alarm. Refer to
Step 3 in Section 5.2.1 Configuring Motion Detection.

HIKVISION DS-2DF8836IX-AEL Specifications

General

Camera Type	PTZ Dome Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max Resolution	3840 × 2160
Optical Zoom	36x
Digital Zoom	16x
Pan Range	360° endless
Preset	300
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Network Interface	1 RJ45 10 M/100 M/1000 M Ethernet Interface
Effective Pixels	3840 × 2160
Vertical Field of View	33.6° to 1.0° (Wide-Tele)
Minimum Illumination	0 Lux with IR
Tilt Range	-15° to 90°
Tilt Speed	0.1° - 200°/s
Bit Rate	32 Kbps to 16 Mbps
Protocols	IPv4, IPv6, HTTP, HTTPS, FTP, SNMP, 802.1X, QoS, Bonjour
Power Supply	24 VAC
Operating Conditions	-40°C to 70°C (-40°F to 158°F), Humidity ≤95%
Protection Level	IP67, IK10
Dimensions	Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight	Approx. 8 kg
Pan Speed	Pan Manual Speed: 0.1° to 210°/s, Pan Preset Speed: 240°/s
