HIKVISION DS-7104NI-Q1 User Manual

1.2 Login
1.2.1 Set Unlock Paern
Admin user can use the unlock paern to login. You can congure the unlock paern aer the
device is acvated.
Steps
1. Use the mouse to draw a
paern among the 9 dots on the screen. Release the mouse when the
paern is done.
Note
• The
paern shall have 4 dots at least.
• Each dot can be connected for once only.
2. Draw the same paern again to conrm it. When the two paerns match, the paern is
congured successfully.

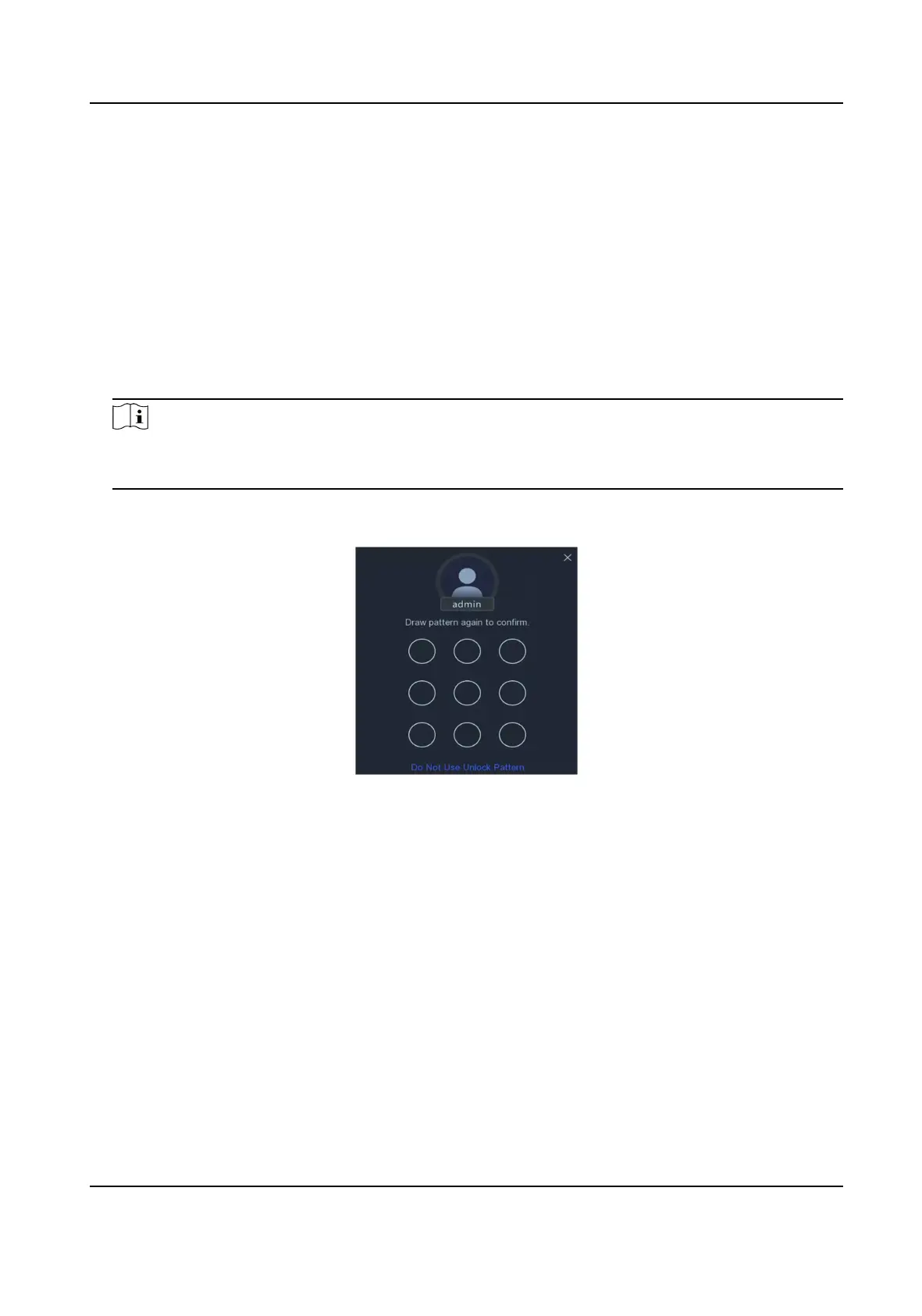

Figure 1-2 Set Unlock Paern
1.2.2 Log in via Unlock
Paern
Steps
1. Right click the mouse on live view interface.
Network Video Recorder User Manual
2

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
