HIKVISION DS-7104NI-Q1 User Manual

Steps
1. Go to Playback .
2. Select a camera from the camera list.
3. Select a date on the calendar for playback.
Note
The blue triangle at the calendar date corner indicates there are available videos. For example,
means video is available. means no video.
4.
Oponal: Posion the cursor on playback window to show control bar.

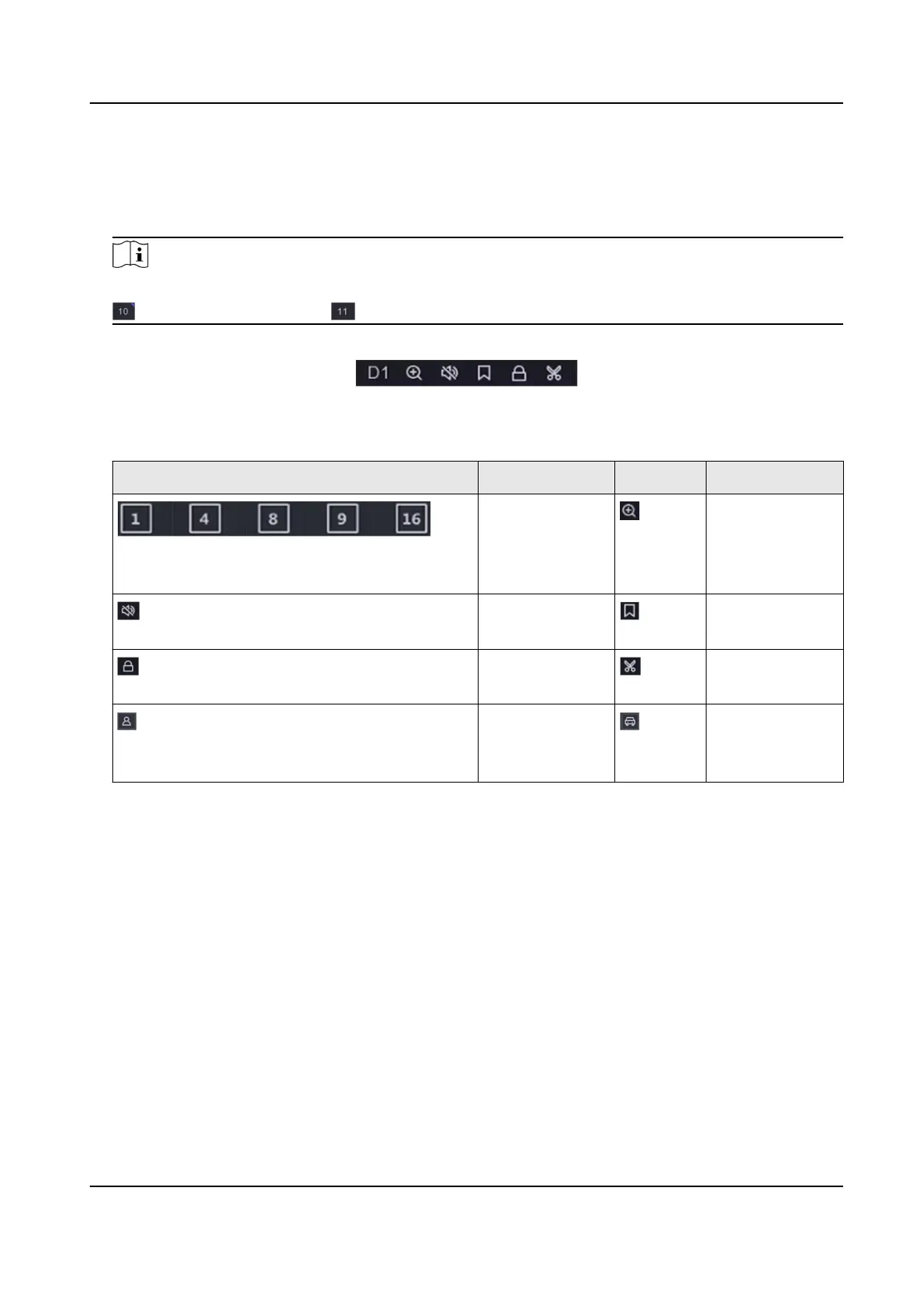

Figure 3-3 Control Bar
Table 3-2 Buon Descripon
Buon Descripon Buon Descripon
Window
division, group
the channels
and play.
Zoom in/out
playback image.
Turn on/o
audio.
Add tag.
Lock/unlock
video.
Clip video.
Show videos
that contain
human.
Show videos
that contain
vehicle.
3.3 Event Playback
When you select the event playback mode, the system will analyze and mark videos that contain
the moon detecon, line crossing detecon, or intrusion detecon informaon, .
Before You Start
• Ensure the camera has enabled Dual-VCA. You can enable it via the camera web browser
interface in
Conguraon → Video/Audio → Display Info. on Stream .
• Ensure your video recorder has enabled Save VCA Data. You can enable it in Conguraon →
Record → Advanced .
Steps
1. Go to Playback .
2. Click Event.
Network Video Recorder User Manual
12

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
