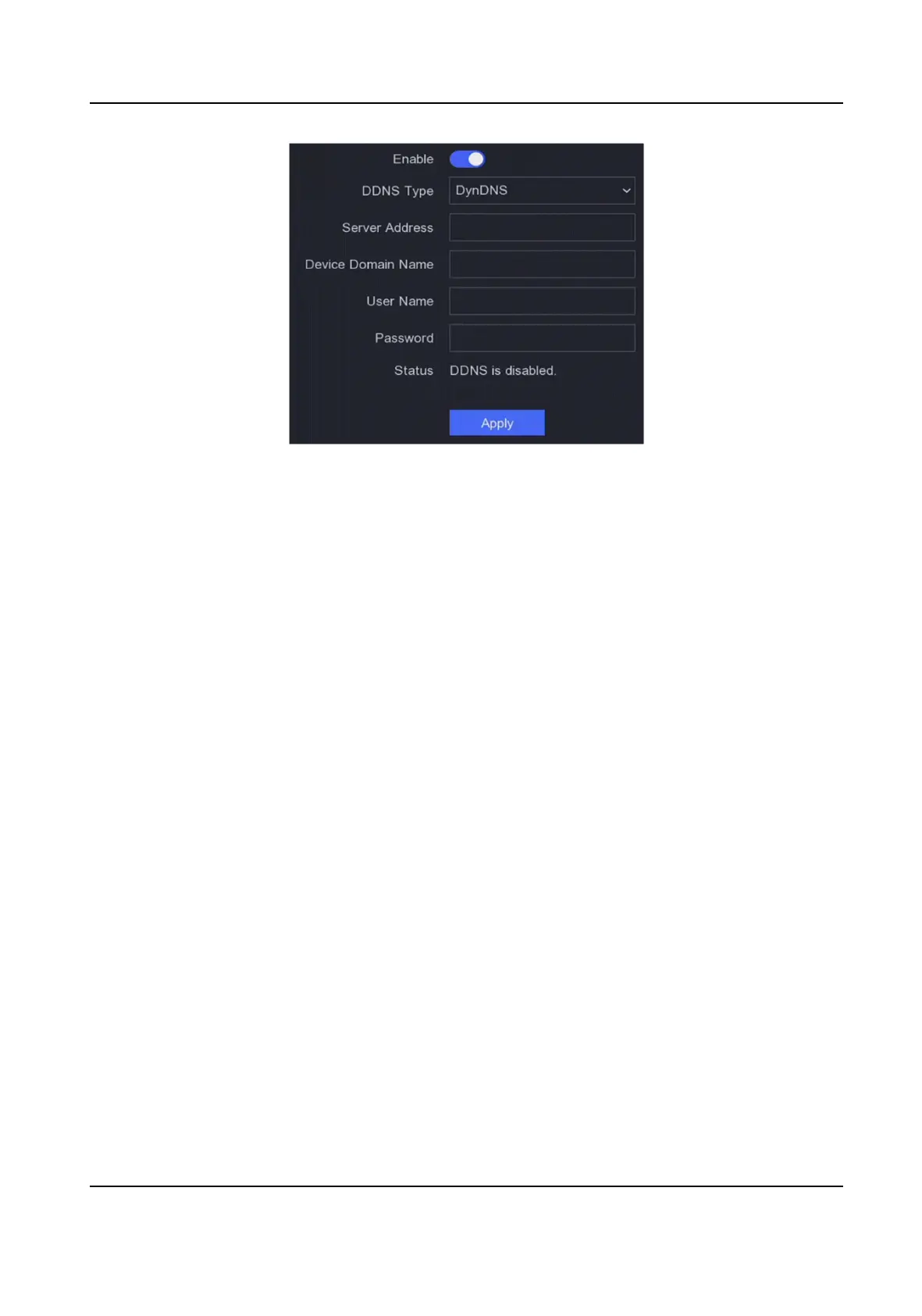

Figure 6-6 DDNS
2. Turn on Enable.
3. Select a DDNS type.
4. Enter parameters including service address, domain name, etc.
5. Click Apply.
What to do next
You can view DDNS status in Status.
6.2.3 NAT
Two ways are provided for port mapping to realize the remote access via the cross-segment
network, UPnP™ and manual mapping.
Before You Start
Enable the UPnP™
funcon of your router if UPnP™ is required. When the device network working
mode is mul-address, the default device route should be on the same network segment as the
LAN IP address of the router.
Steps
1. Go to
Conguraon → Network → General → NAT .
Network Video Recorder User Manual
42

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
