HIKVISION DS-7104NI-Q1 User Manual

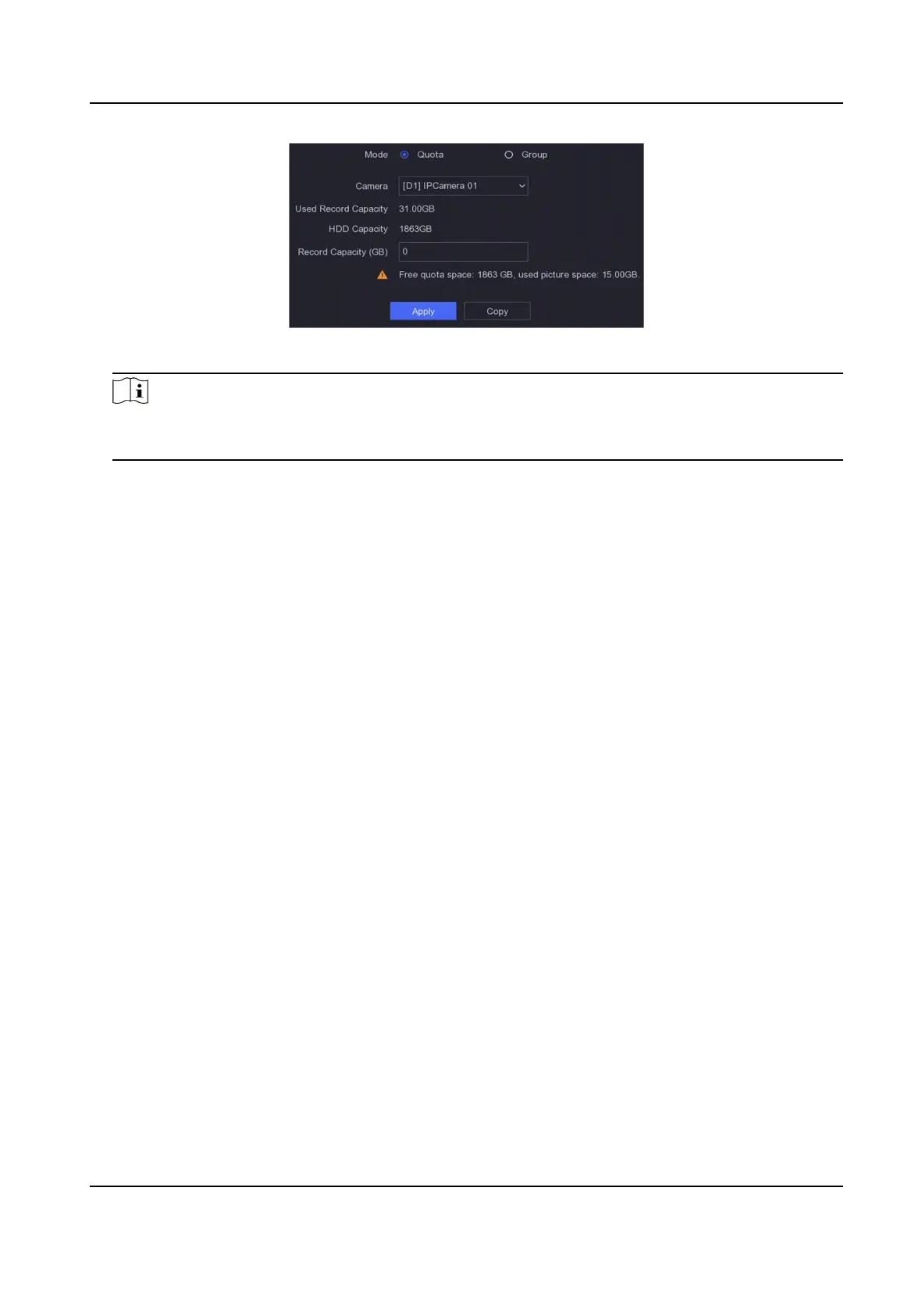

Figure 6-28 Quota
Note
When the quota capacity is set to 0, all cameras will use the total capacity of HDD for videos and
pictures.
5. Click Apply.
6. Restart the video recorder to acvate the new sengs.
6.5.5 Advanced
Sengs
Steps
1. Go to Conguraon → Record → Advanced .
2.
Congure the parameters as your desire.
Overwrite
• Disable: When the HDD is full, video recorder will stop wring.
• Enable: When hard drive is full, video record will connue to write new les by deleng
the oldest les.
Enable HDD Sleeping
HDDs which are free of working for a long me will turn into sleep status.
Save Camera VCA Data
Camera VCA data will be saved so that you can search it.
Network Video Recorder User Manual
69

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
