5.13 External Alarm Input and Relay Output
For DS-7108 , there are 16 alarm in and 4 relay out. In “Alarms” menu, you can setup for
each external alarm input.
In main menu, move “Active Frame” to “Alarms” icon and press【ENTER】key to enter into
alarms menu: Shown as fig 5.22

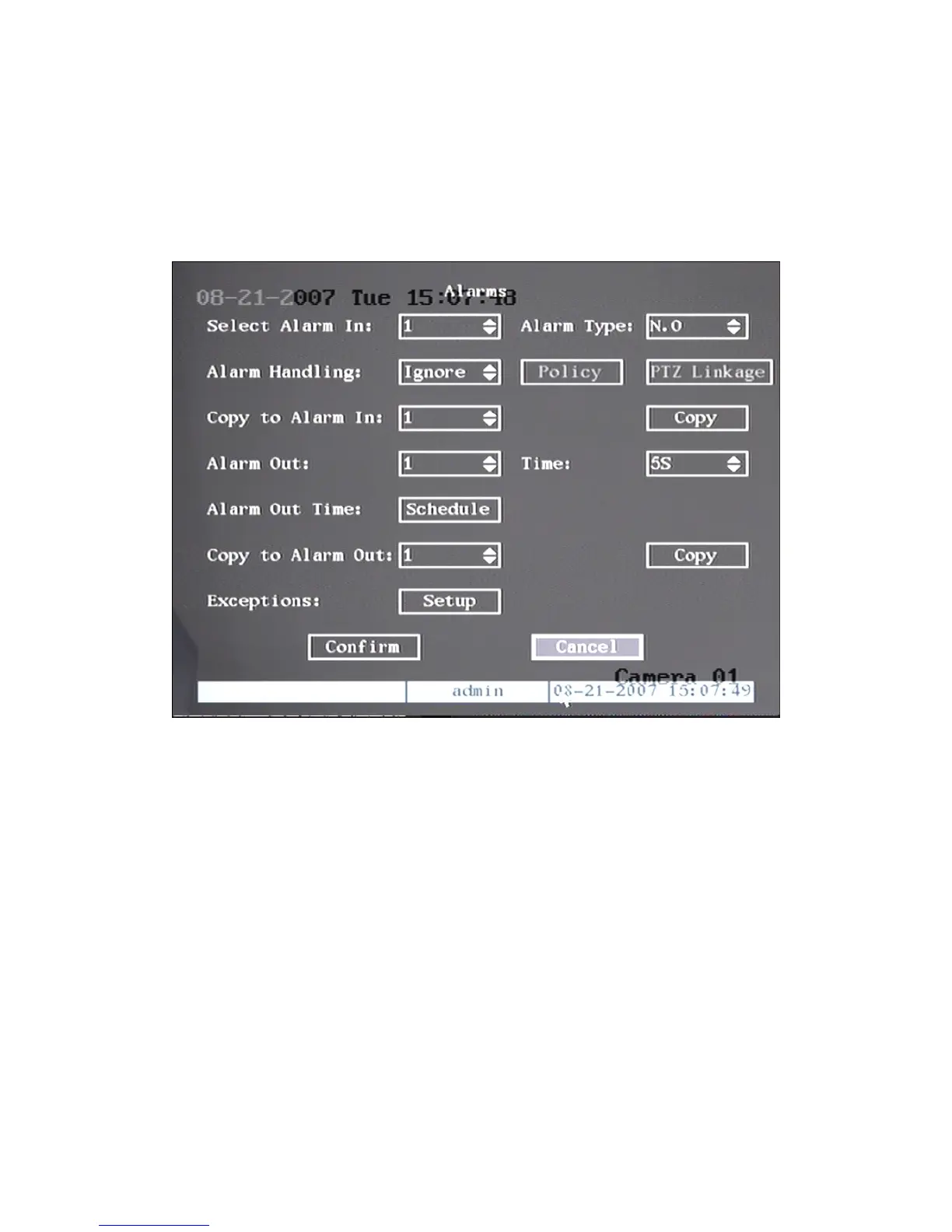

5.22 Alarms setup
External alarm input setup:
Step 1: Select one alarm input Use【↑】【↓】keys to select one alarm input.
Step 2: Alarm type
This is sensor type. You can select “Normal Open” or “Normal Close” according to the
sensor type.
Step 3: Enter into “Alarm in Handling” sub menu
In the “Alarms” menu, there are two options for “Alarm Handling” item. One is “Ignore”,
and the other is “Handle”. If you select “Handle” option, you can active “Policy” and “PTZ
Linkage” buttons on right side. Move “Active Frame” to “Policy” button and press【ENTER】key,
you will enter into “Alarm in Handling” sub menu: Shown as fig 5.23
