89

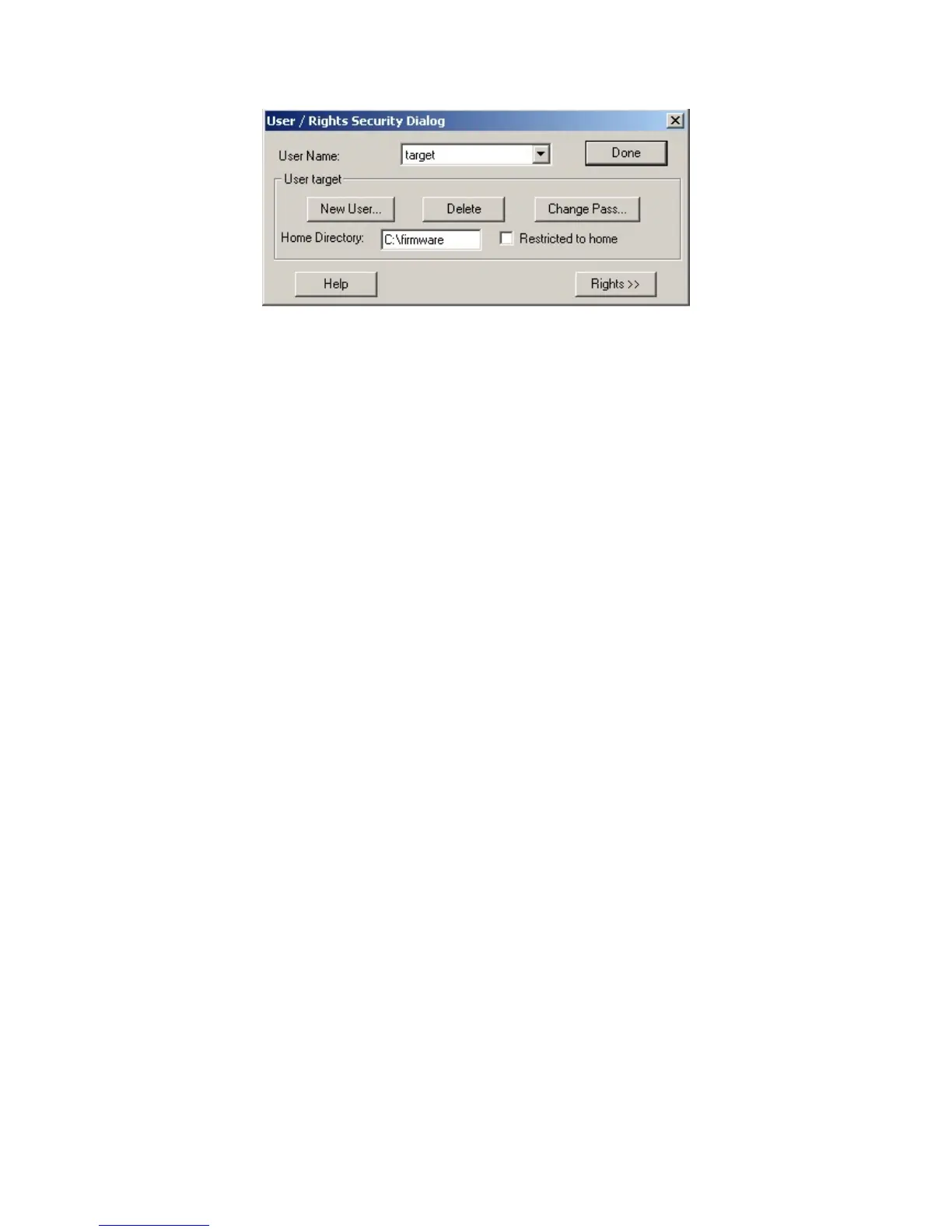

Fig 7.9 Setup home directory
7. Next time, you need not setup again, just double click and open “wftpd32.exe” to upgrade
the DVR/DVS firmware.
7.2 Upgrade Mode
1. Use client software to upgrade the firmware file. You do not need to use ftp server
software. Please refer to the client software user manual for detail information.
2. Use “FTP” function of “Upgrade” sub menu in “Utilities” menu. You need one host PC
to run FTP server software and place firmware file (digicap), and make sure DVR and
PC are in the same sub net.
3. Use “USB” function of “Upgrade” sub menu in “Utilities” menu. Please make sure the
firmware file (digicap) is placed under root directory of USB flash memory.
4. Use the TFTP server. Please follow the next steps.
Step 1:
Before the update start you should do the follow steps:
1. Download the TFTP server from the internet, such as Cisco TFTP Server. Then put the
firmware in the root directory of the Cisco TFTP Server.
2. Connect the device to the Router.
3. Please use DTE cable to connect device 232 port with COM port of the server PC.
4. Configure the Hyper Terminal. Steps as below.
1) Enter into start----all programs----accessories------communications-----hyper terminal.
Click hyper terminal. And fig 1 will pop up. Click cancel and select yes in the pop up dialog. then
enter into fig 3.
