HIKVISION DS-7208HGHI-F1 User Manual

Digital Video Recorder User Manual
139

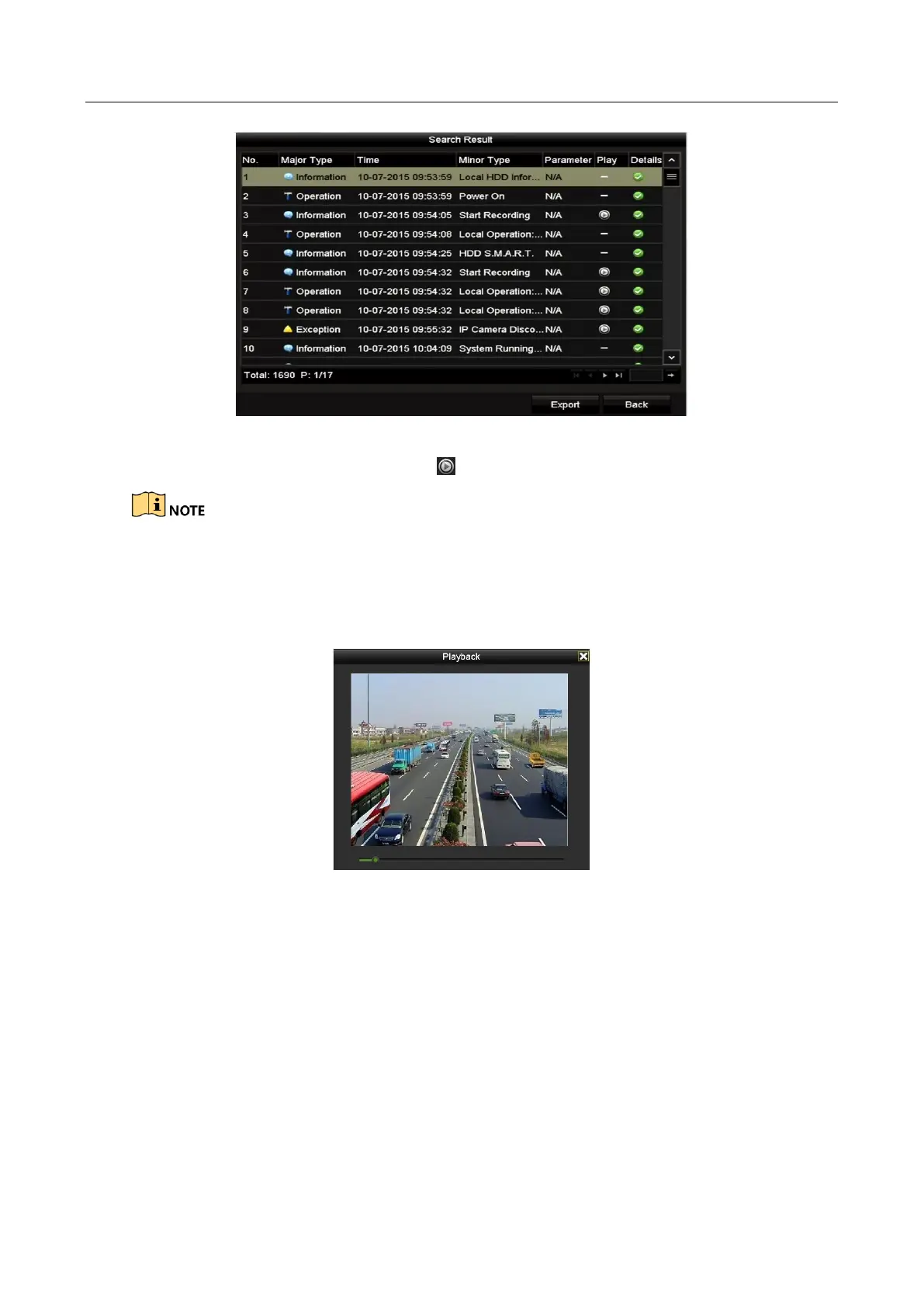

Figure 6-18 Result of System Log Search
Step 3 Choose a log with record file and click button to enter Playback interface.
If there is no record file at the time point of the log, the message box “No result found” will pop
up.
Step 4 Playback management.
The toolbar in the bottom part of Playback interface can be used to control playing process.
Figure 6-19 Interface of Playback by Log
6.1.7 Playing Back by Sub-Periods
Purpose
The video files can be played in multiple sub-periods simultaneously on the screens.
Step 1 Enter Playback interface.
Menu>Playback
Step 2 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter
the Sub-periods Playback interface.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
