Digital Video Recorder User Manual
162

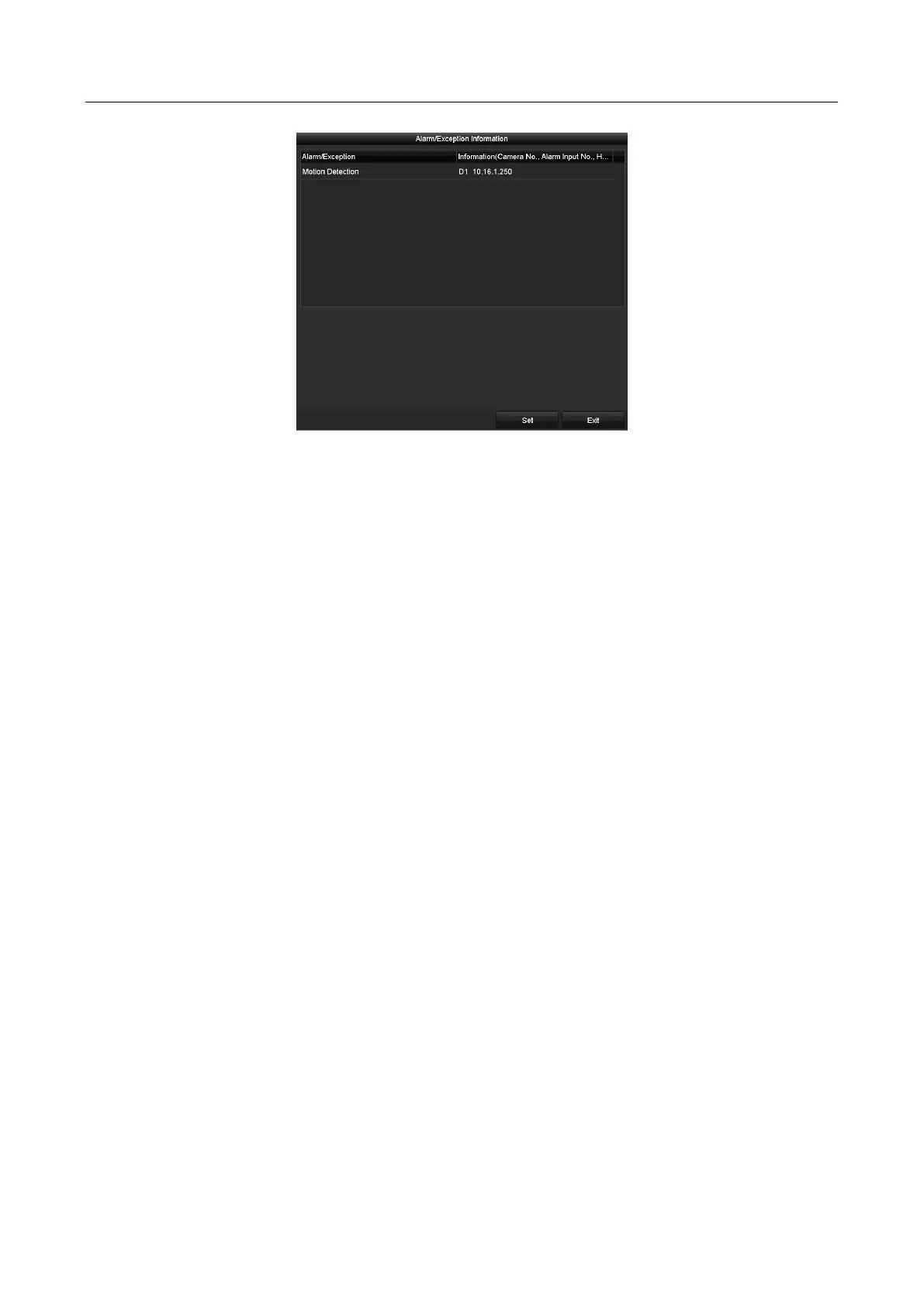

Figure 8-18 Detailed Event
Step 3 Set the alarm linkage actions. For details, see Chapter 8.7 Setting Alarm Response Actions.
Step 4 Click Apply to save the settings.
8.7 Setting Alarm Response Actions
Purpose
Alarm response actions will be activated when an alarm or exception occurs, including Full Screen
Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Send Email and Trigger Alarm
Output.
Full Screen Monitoring
When an alarm is triggered, the local monitor (HDMI, VGA or CVBS monitor) displays in full screen
the video image from the alarming channel configured for full screen monitoring.
If alarms are triggered simultaneously in several channels, their full-screen images will be switched
at an interval of 10 seconds (default dwell time). A different dwell time can be set by going to
Menu > Configuration > Live View.
Auto-switch will terminate once the alarm stops and you will be taken back to the Live View
interface.
Audible Warning
Trigger an audible beep when an alarm is detected.
Notify Surveillance Center
Sends an exception or alarm signal to remote alarm host when an event occurs. The alarm host
refers to the PC installed with Remote Client.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
