HIKVISION DS-7208HGHI-F1 User Manual

Digital Video Recorder User Manual
216

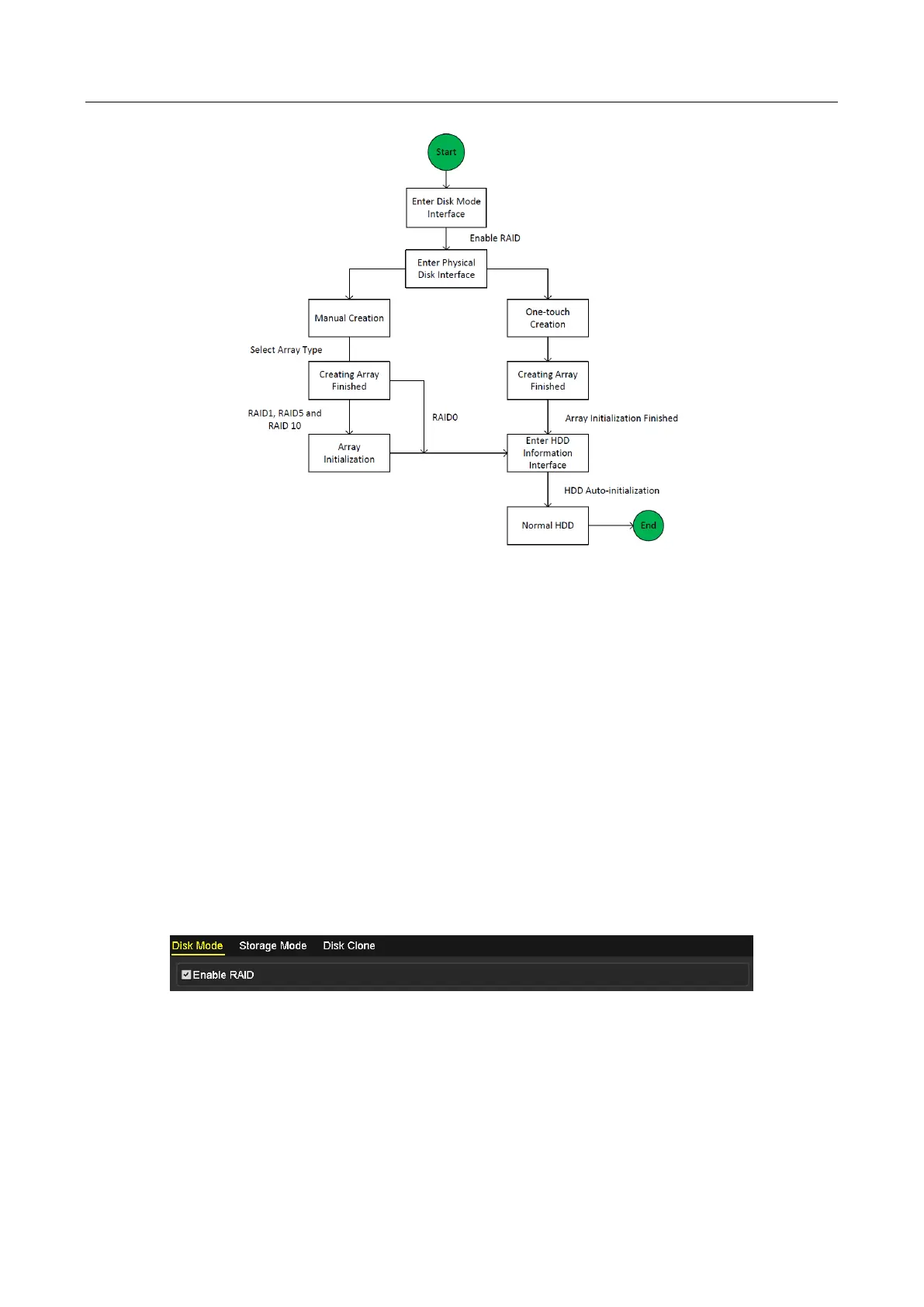

Figure 13-1 RAID Working Flow
13.1.1 Enable RAID
Purpose
Perform the following steps to enable the RAID function, or the disk array cannot be created.
 OPTION 1:
Enable the RAID function in the Wizard when the device startup, please refer to step 7 of Chapter
2.3.2.
 OPTION 2:
Enable the RAID function in the HDD Management Interface.
Step 1 Enter the Disk Mode configuration interface.
Menu > HDD > Advanced
Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
Step 4 Reboot the device to take RAID into effect.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
