Digital Video Recorder User Manual
181
Sensitivity: Range [0-100]. The higher the value is, the more easily the detection alarm can
be triggered.
Step 7 Click and draw a quadrilateral in the preview window by specifying four vertexes of
the detection region, and right click to complete drawing. Only one region can be
configured.
You can use the to clear the existing virtual line and re-draw it.

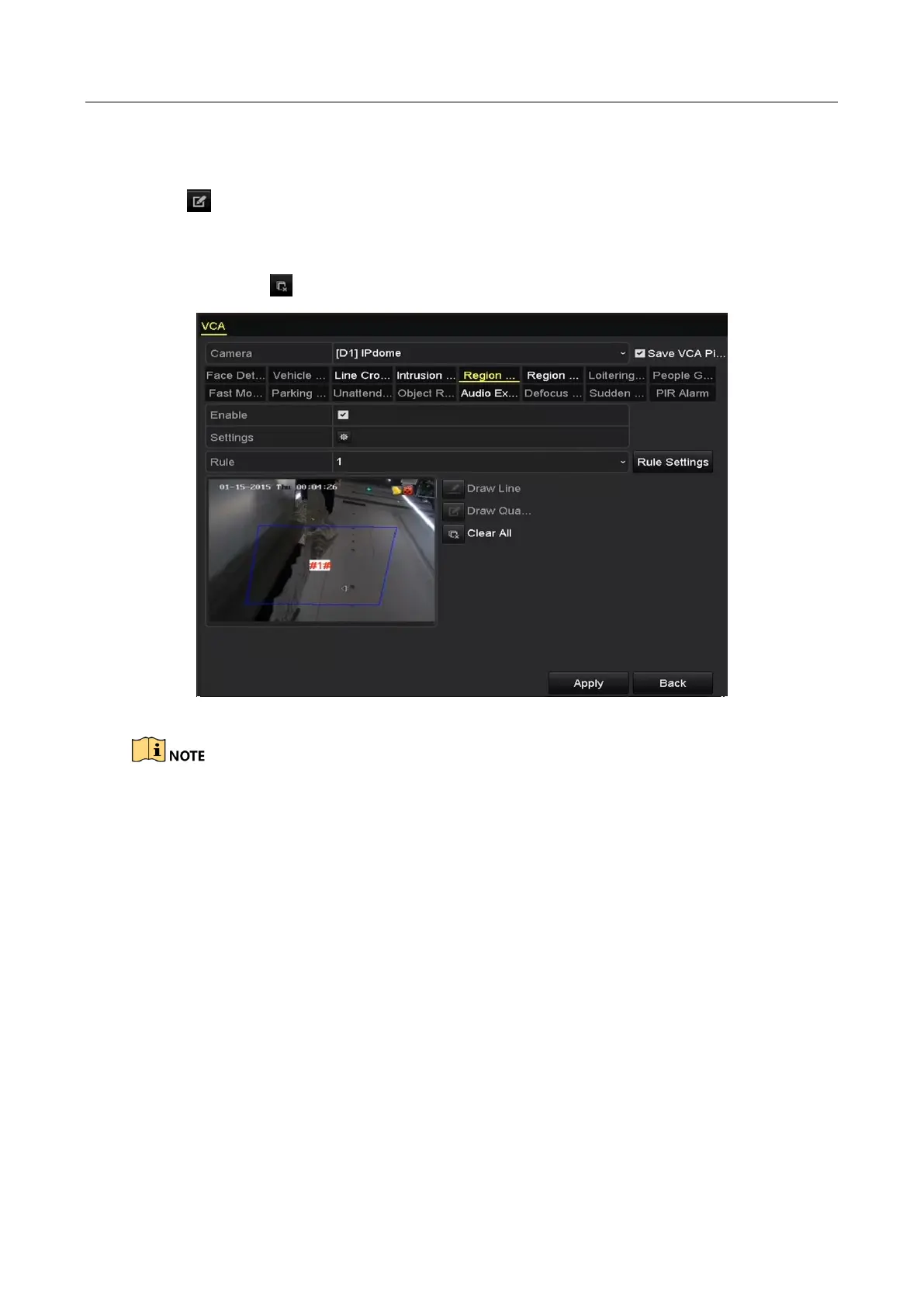

Figure 10-9 Set Region Entrance Detection
Up to 4 rules can be configured.
Step 8 Click Apply to save the settings.
10.6 Region Exiting Detection
Purpose
Region exiting detection function detects people, vehicle or other objects which exit from a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
