HIKVISION DS-7332HGHI-SH User Manual

132
User Manual of Digital Video Recorder
8.4 Detecting Video Tampering
Purpose:
Trigger alarm when the lens is covered and take alarm response action(s).
Steps:
1. Enter Video Tampering interface of Camera Management and select a channel you want to detect video
tampering.
Menu> Camera> Video Tampering Detection
Figure 8. 12 Video Tempering Interface
2. Check the checkbox of “Enable Video Tampering”.
3. Drag the sensitivity bar and choose a proper sensitivity level.
4. Click to set handling method of video tampering. Set arming schedule and alarm response actions of
the channel.
1) Click Arming Schedule tab to set the arming schedule of response action.
2) Choose one day of a week and up to eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.

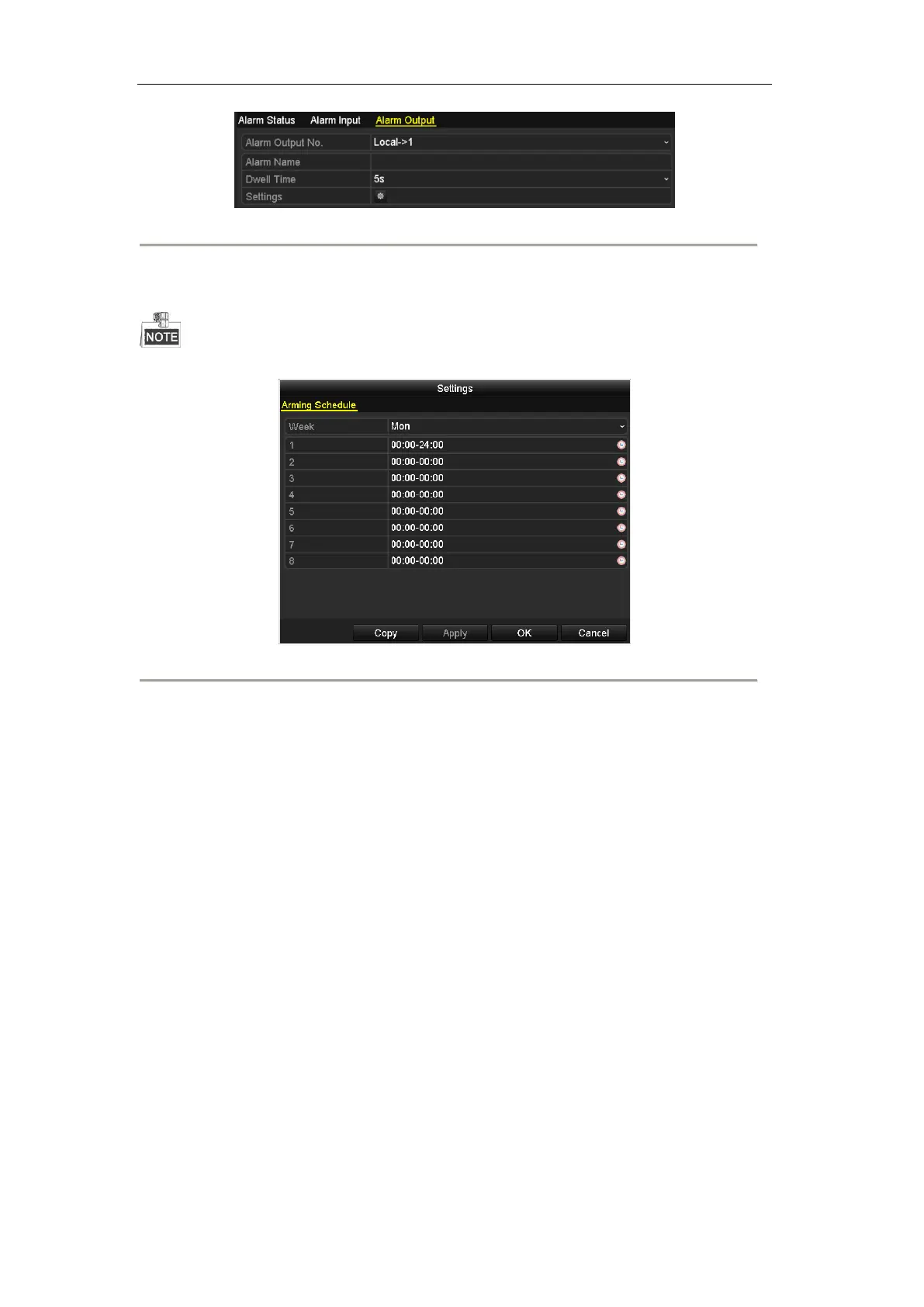

Figure 8. 13 Set Arming Schedule of Video Tampering
3) Select Linkage Action tab to set alarm response actions of video tampering alarm (please refer to

HIKVISION DS-7332HGHI-SH Specifications

General

HDD capacity	18000 GB
HDD interface	Serial ATA
Number of HDDs supported	4
Product color	Black
Channels quantity	32 channels
Maximum frame rate	30 fps
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	32
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Power requirements	100-240V AC, 47 - 63Hz
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
