User Manual of Digital Video Recorder
157
9.2.7 Configuring HTTPS Port
Purpose:
HTTPS provides authentication of the web site and associated web server that one is communicating with,
which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.
Example:
If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by inputting
https://192.0.0.64:443 via the web browser.
The HTTPS port can be only configured through the web browser.
Steps:
1. Open web browser, input the IP address of device, and the web server will select the language
automatically according to the system language and maximize the web browser.
2. Input the correct user name and password, and click Login button to log in the device.
3. Enter the HTTPS settings interface.
Configuration > Remote Configuration > Network Settings > HTTPS
4. Create the self-signed certificate or authorized certificate.

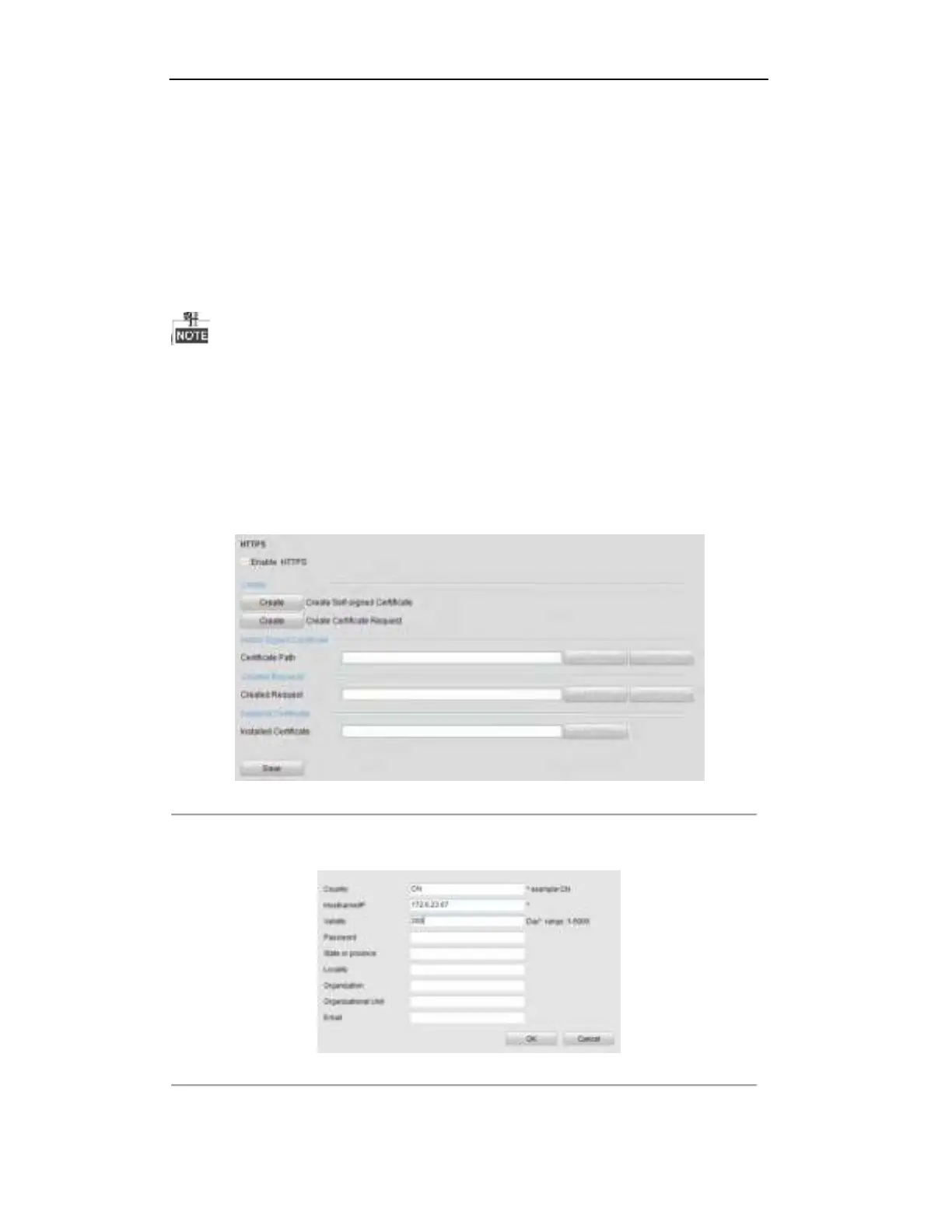

Figure 9. 23 HTTPS Settings
OPTION 1 : Create the self-signed certificate
1) Click the Create button to create the following dialog box.
Figure 9. 24 Create Self-signed Certificate
2) Enter the country, host name/IP, validity and other information.

HIKVISION DS-7332HGHI-SH Specifications

General

HDD capacity	18000 GB
HDD interface	Serial ATA
Number of HDDs supported	4
Product color	Black
Channels quantity	32 channels
Maximum frame rate	30 fps
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	32
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Power requirements	100-240V AC, 47 - 63Hz
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
