182
User Manual of Digital Video Recorder
11.3 Configuring Video Parameters
Steps:
1.
Enter the Image Settings interface.
Menu > Camera > Image

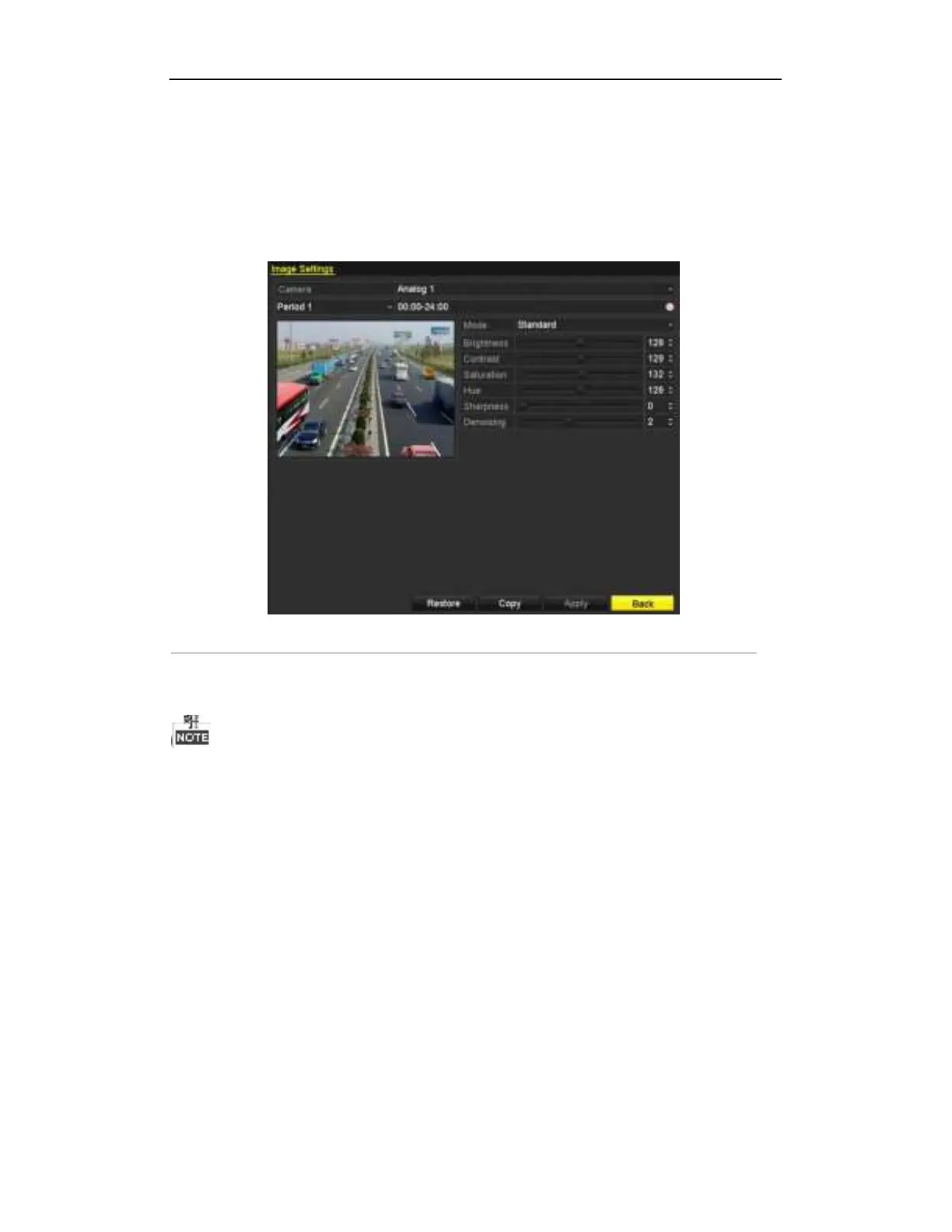

Figure 11. 5 Image Settings Interface
2.
Select the camera to set image parameters.
3.
Two periods for different image settings are provided, select the period name in the dropdown list.
The time periods cannot be overlapped with each other.
4.
Select the mode from the drop-down list of
Mode
, there are four modes selectable: Standard, Indoor, Dim
Light and Outdoor.
5.
Adjust the image parameters according to actual needs. The parameters include Brightness, Contrast,
Saturation, Hue, Sharpness and Denoising. You can also click
Restore
to set the parameters to the default
settings.
6.
You can click
Copy
to copy the image settings of the current camera to other analog cameras.
7.
Click
Apply
to save the settings.
