User Manual of Network Video Recorder
172

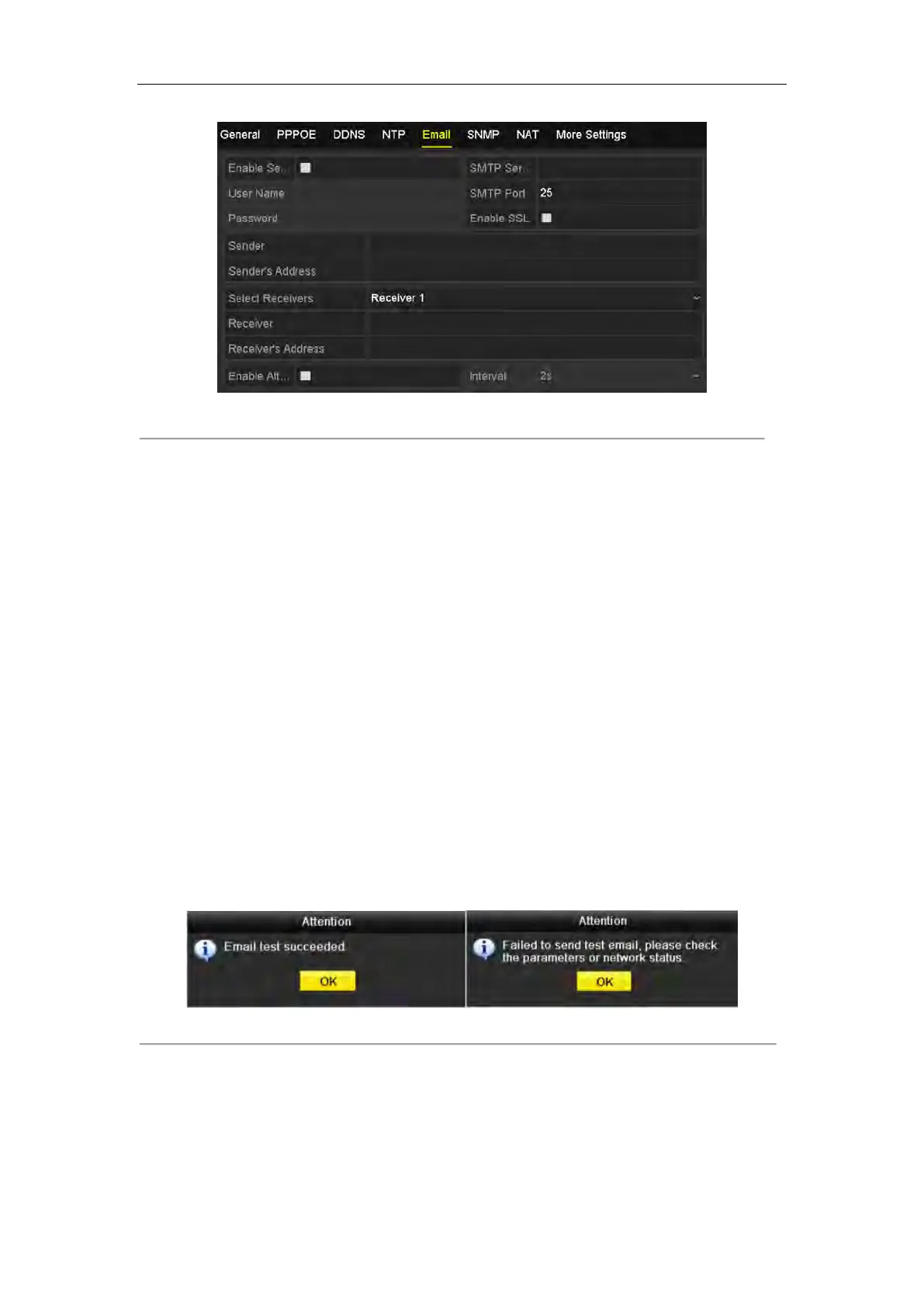

Figure 11. 23 Email Settings Interface
5. Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server authentication feature.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL (optional): Click the checkbox to enable SSL if required by the SMTP server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Receiver: The name of user to be notified.
Receiver’s Address: The Email address of user to be notified.
Enable Attached Picture: Check the checkbox of Enable Attached Picture if you want to send email with
attached alarm images. The interval is the time of two adjacent alarm images. You can also set SMTP port
and enable SSL here.
Interval: The interval refers to the time between two actions of sending attached pictures.
6. Click Apply button to save the Email settings.
7. You can click Test button to test whether your Email settings work. The corresponding Attention message
box will pop up. Refer to Figure 11. 24.
Figure 11. 24 Email Testing Attention
11.2.11 Configuring NAT
Purpose:
Two ways are provided for port mapping to realize the remote access via the cross-segment network, UPnP™ and
