User Manual of Network Video Recorder
245
17.4 Configuring More Settings for Device
Parameters
Steps:
1. Enter the General Settings interface.
Menu >Configuration>General
2. Click the More Settings tab to enter the More Settings interface, as shown in Figure 17. 4.

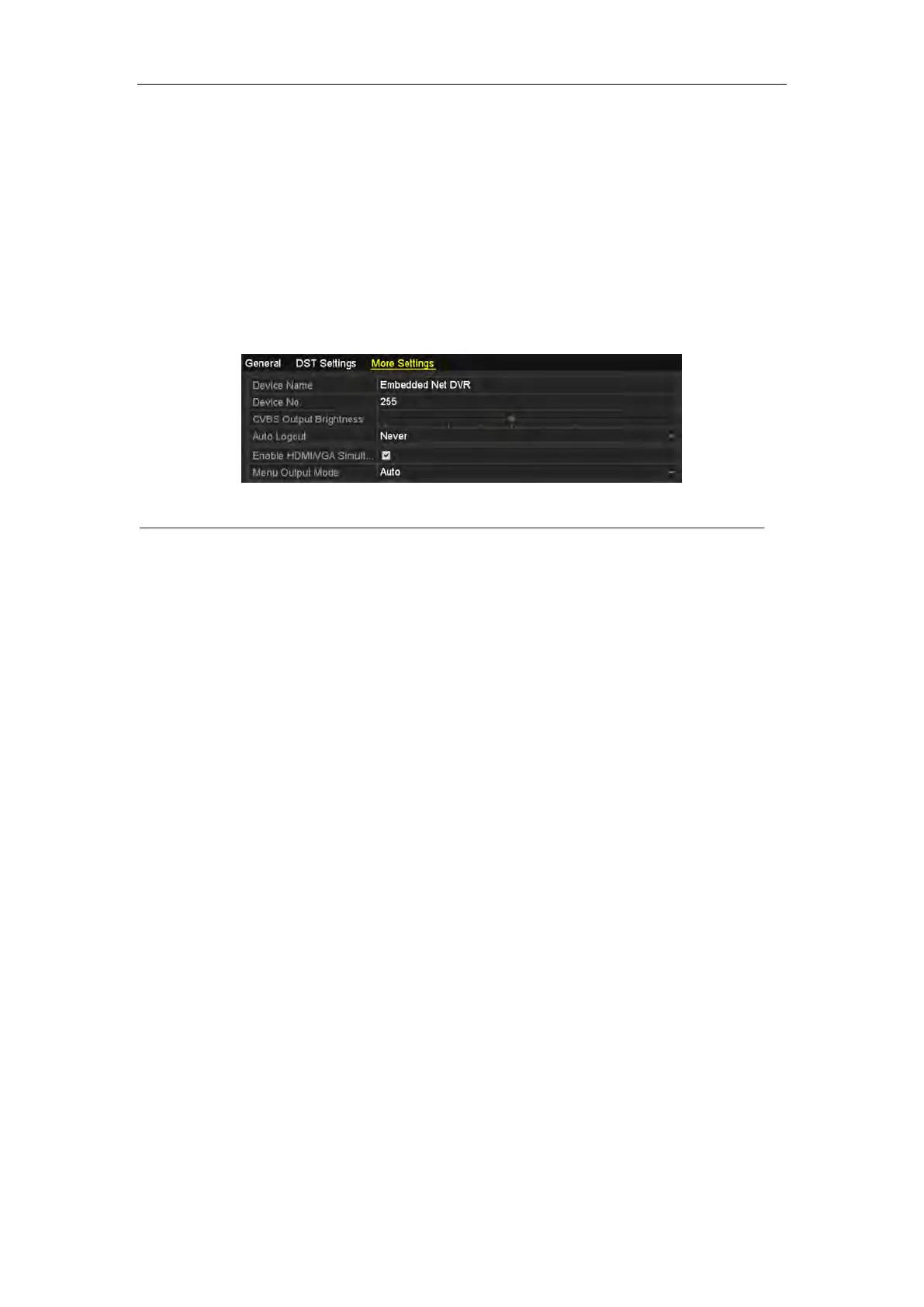

Figure 17. 4 More Settings Interface
3. Configure the following settings:
• Device Name: Edit the name of NVR.
• Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1~255, and the
default No. is 255. The number is used for the remote and keyboard control.
• CVBS Output Brightness: Adjust the video output brightness.
• Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, then
the system will exit from the current operation menu to live view screen after 5 minutes of menu
inactivity.
• Enable HDMI/VGA Simultaneous Output: By default, the video outputs from HDMI and VGA
interfaces can be operated separately. You can set the simultaneous output for the HDMI and VGA by
checking the checkbox of the option.
• Menu Output Mode: You can choose the menu display on different video output. There are auto,
HDMI/VGA and Main CVBS selectable.
4. Click the Apply button to save the settings.
