HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
14
Name
No.
Interface
Description
B2
AIN3
Zone Detector Input Terminal 3
B3
AIN2
Zone Detector Input Terminal 2
B4
AIN1
Zone Detector Input Terminal 1
B5
RS485+
Reserved
4.4 Terminals and Interfaces of DS-KH6310-W(L)/
DS-KH6210(L)

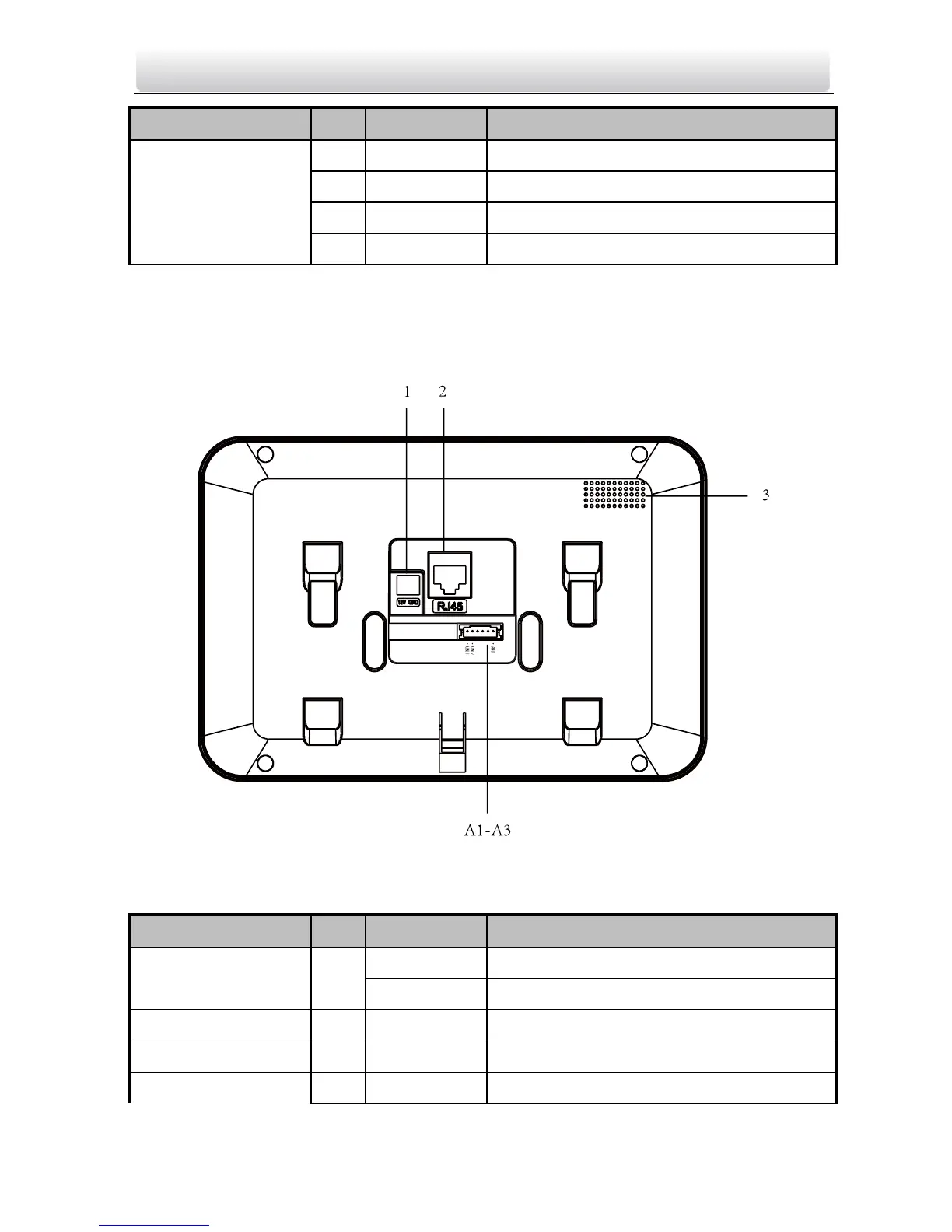

Figure 4-4 Rear Panel of DS-KH6310-W(L)/DS-KH6210(L)
Table 4-4 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
Power Supply
1
+12V
DC 12V Power Supply + Input
GND
DC 12V GND - Input
Network Interface
2
LAN
Network Interface (Support Private POE)
Loudspeaker
3
Loudspeaker
Ports and Interfaces
A1
AIN1
Zone Detector Input Terminal 1

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
