HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
64
9.5.4 Querying Unlocking Log
Steps:
1. Click the Query Unlocking Logs button to enter query unlocking logs interface.
2. Select the unlocking type, device type, and set the start time and end time.

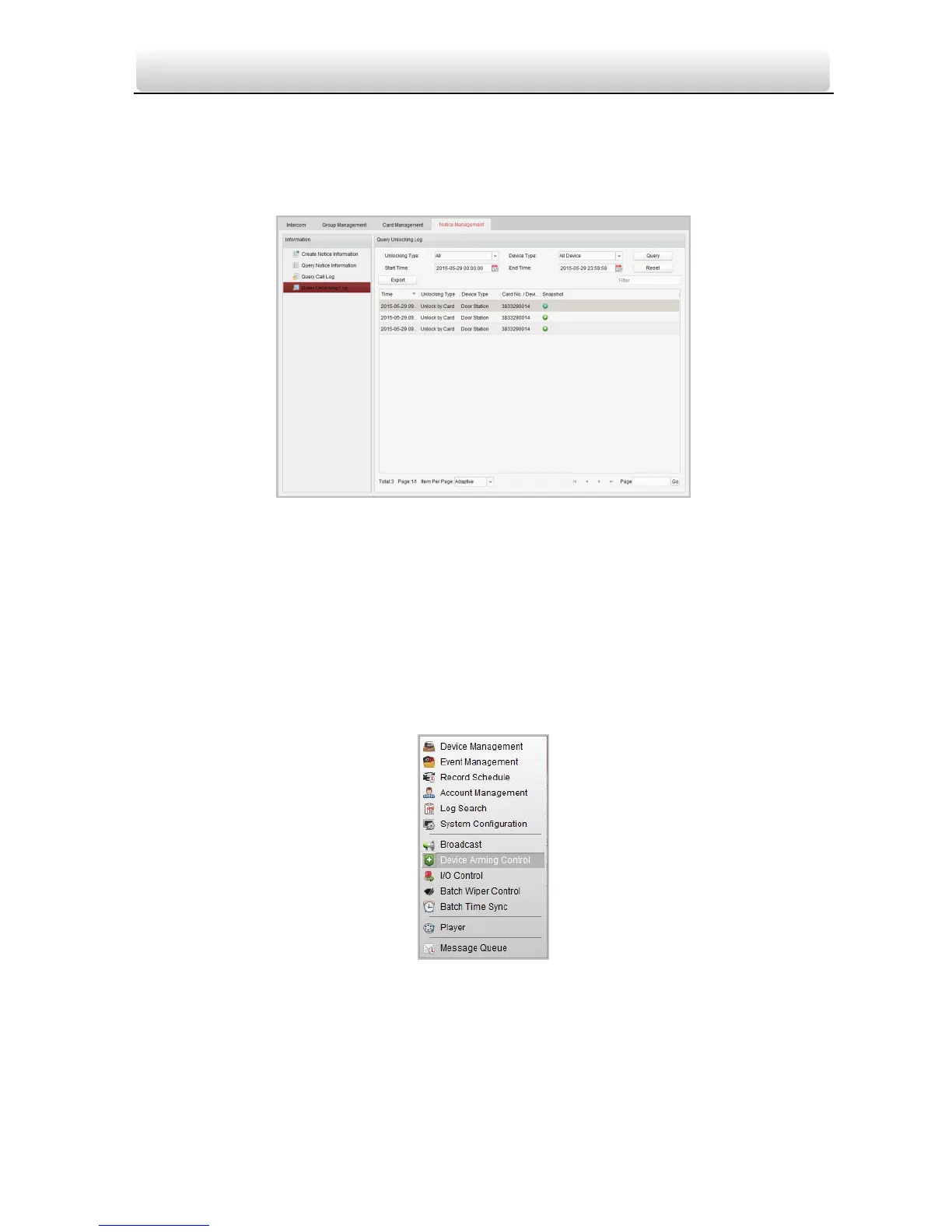

Figure 9-6 Query Unlocking Logs
3. Click the Query button to search the unlocking log.
4. Click the Export button to export the unlocking logs.
9.6 Device Arming Control
Steps:
1. Select Tool->Device Arming Control to enter the device arming control interface.
Figure 9-7 Tool Menu
2. Set the arming status of the device as armed, and the alarm information will be auto
uploaded to the client software when alarm occurs.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
