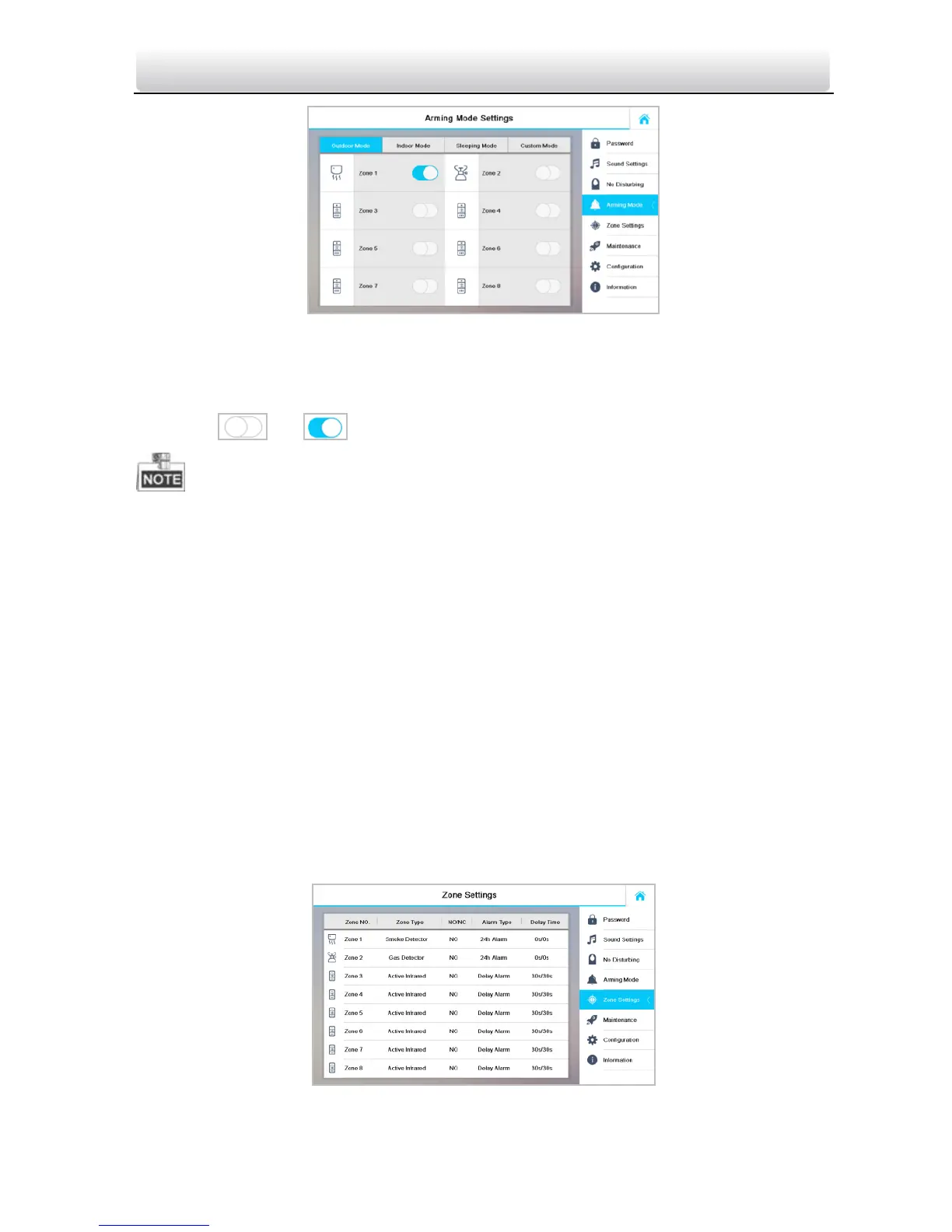

Figure 9-13 Arming Mode Settings Interface
2. Press Outdoor Mode tab, Indoor Mode tab, Sleeping Mode tab, and Custom Mode
tab to enter corresponding arming mode settings interface.
3. Switch to to enable the arming in the selected zoon.
 Zones in each arming mode can be configured manually. See detailed information in
10.3.5.
 For 24H alarm zone and smoke detector zone, even if it is disabled under current
arming mode, the indoor station will still alarm when it is triggered.
 Arm mode settings should be configured with the settings of arming status on the the
user interface of the device.
 The DS-KH6201(L) and DS-KH6310-W(L) indoor stations only support 2 zones.
10.3.5 Zone Settings
Purpose:
You can set the zone type, alarm type and delay time and other parameters of 8 zones.
Steps:
1. Press the Settings tab and then the Zone Settings tab to enter the zone settings
interface.
Figure 9-14 Zone Settings Interface

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
