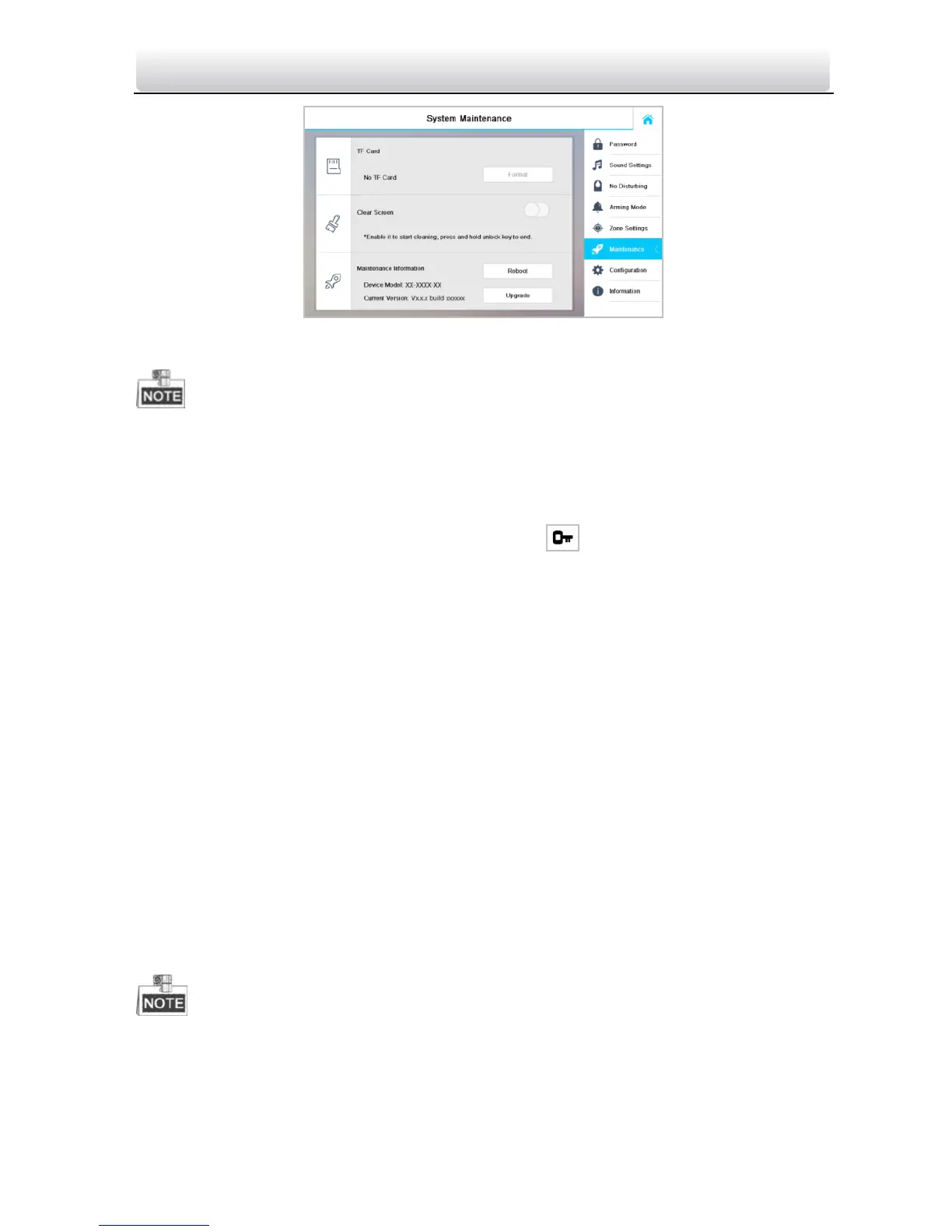

Figure 9-16 System Maintenance Interface
 Only DS-KH8500-T/DS-KH8501-WT/DS-KH8300-T/DS-KH8301-WT models indoor
stations support TF card function.
 Only DS-KH8501-WT/DS-KH8301-WT/DS-KH6310-W/DS-KH6310-W(T) models indoor
stations have the Upgrade tab on the system maintenance interface.
 After clearing the screen, you can press and hold to exit clear screen mode.
10.3.7 Configuration Settings
Purpose:
On the configuration settings interface, you can set and view the local information,
configure the network, manage devices, synchronize the device time, and restore the
default settings.
Setting Local Information
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Local Info tab to enter the local information settings interface.
4. Select the indoor station type: Indoor Station, or Indoor Extension.
Indoor Station: Set the Room No.
Indoor Extension: Set the Extension No., and set a room name.
5. Press the drop-down list to select a video standard: PAL, or NTSC.
6. Set the maximum live view duration of the device.
 The Extension No. is numeric from 1 to 5, i.e., at most 5 indoor extensions can
connect to one indoor station.
 Only DS-KH8301-WT and DS-KH8501-WT require setting the video standard, and the
system will reboot after selecting video standard.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
