Video Intercom Indoor Station·User Manual
74

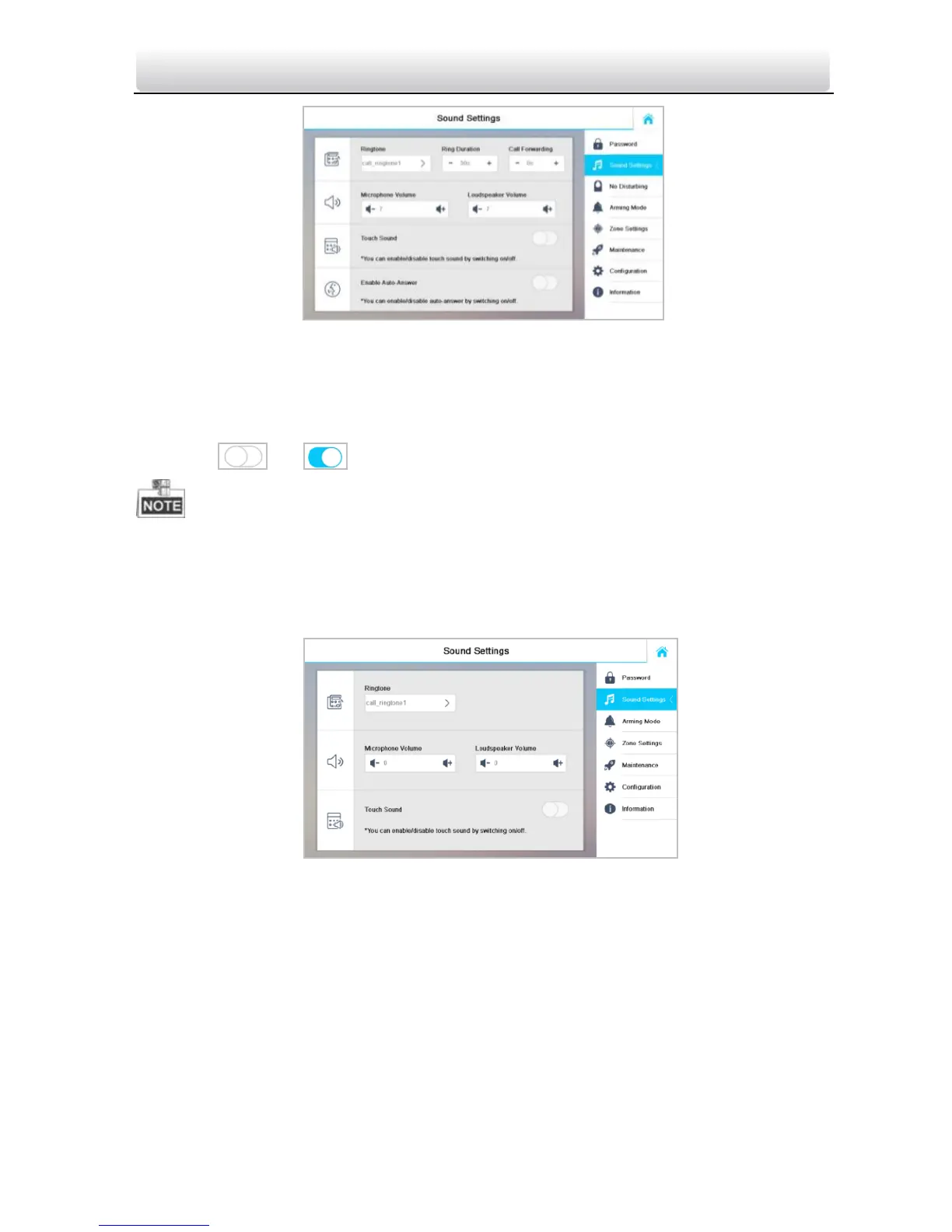

Figure 9-10 Sound Settings Interface (Indoor Station)
2. Select the ringtone for the device.
3. Set the ring duration, and call forwarding for the device.
4. Set the microphone volume, and loudspeaker volume.
5. Switch to to enable the touch sound and auto-answer function.
 Ring duration varies from 30s to 60s.
 Call forwarding varies from 0s to 20s.
 For indoor extension, it does not support the ring duration settings, call forwarding
settings, or auto-answer function.
Figure 9-11 Sound Settings Interface (Indoor Extension)
10.3.3 No Disturbing Settings
Purpose:
Two types of no disturbing mode can be configured: All day and Scheduled.
Steps:
1. Press the Settings tab and then the No Disturbing tab to enter the no disturbing
settings interface.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
