HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
75

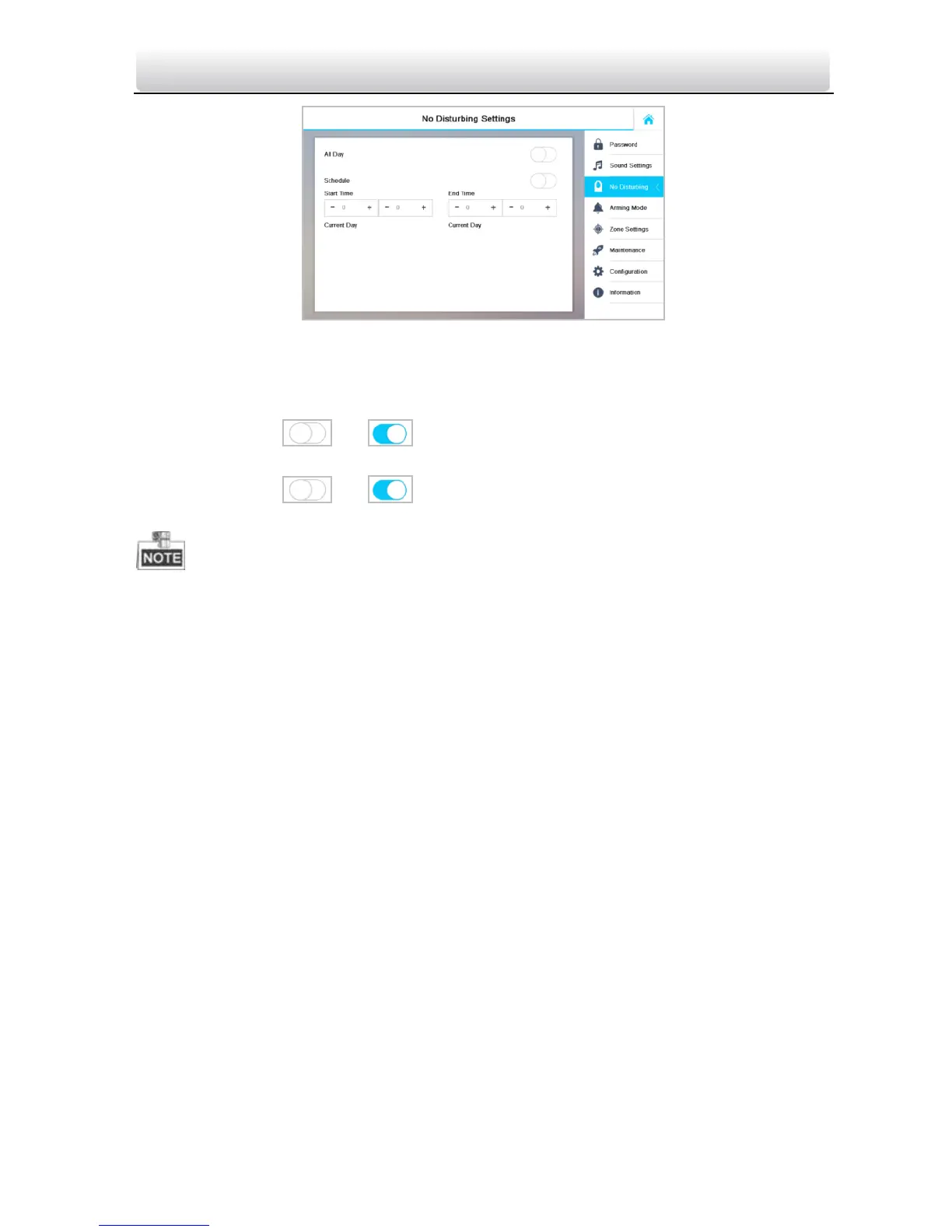

Figure 9-12 No Disturbing Settings Interface
2. Select no disturbing mode: All Day or Scheduled.
 All Day:
1) Switch to to enable no disturbing mode.
 Scheduled:
1) Switch to to enable no disturbing mode.
2) Set the start time and the end time.
 Under all-day no disturbing mode, the indoor station will not ring all day when it is
called by door station or other indoor stations, but the call logs will be saved.
 Under scheduled no disturbing mode, the indoor station will not ring between the
start time and the end time when it is called by door station or other indoor stations,
but the call logs will be saved.
 Indoor extension does not support No Disturbing Settings.
10.3.4 Arming Mode Settings
Purpose:
Four arming modes can be configured: outdoor mode, indoor mode, sleeping mode and
custom mode.
Steps:
1. Press the Settings tab and then the Arming Mode tab to enter the arming mode
settings interface.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
