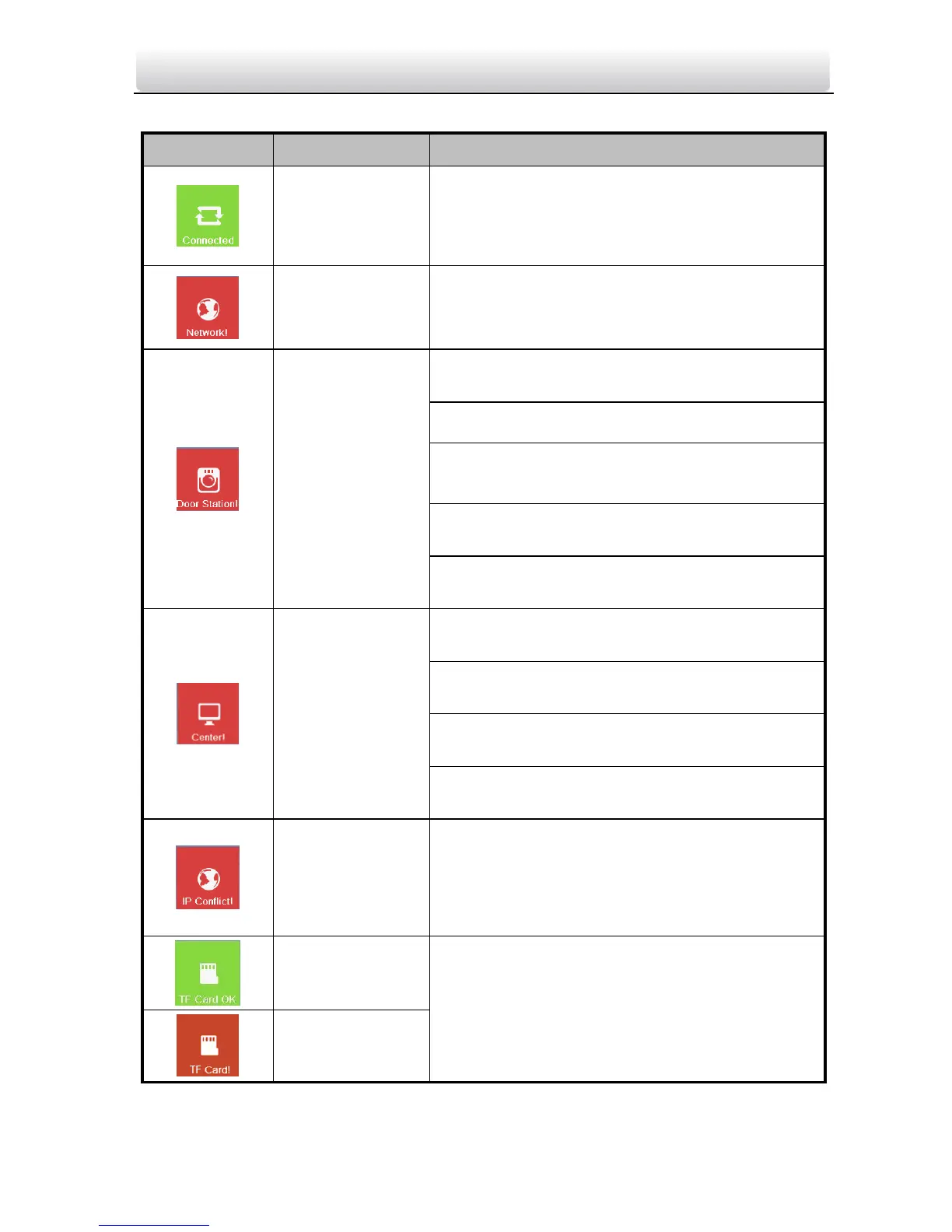

Table 10-1 Description of Status Icons
Icon
Definition
Description
Normal Status.
The communication between indoor station,
door station and master station is normal.
And the communication between indoor
station and indoor extension is normal.
The indoor
station is offline.
Please check the network cable or Wi-Fi
connection.
Exception occurs
in the
communication
with door
station.
Room No. conflict. Configure the Room No.
again.
Invalid Room No.. Configure the Room No..
Invalid main door station IP address. Configure
the main door station IP address.
Network of door station is abnormal. Check the
network connection of main door station.
Communication of door station is abnormal.
Check if the door station IP address is correct.
The indoor
station has not
registered in the
SIP server.
Invalid SIP server IP address. Set the SIP server
IP address.
Network of SIP server is not available. Check
the SIP server network connection.
SIP server communication is not available.
Check if the SIP server IP address is correct.
SIP server rejected to login the device. Check if
the device No. has been registered.
The indoor
station IP
address conflicts
with that of
other device.
Please check the IP address.
TF card is
inserted in the
indoor station.
Only DS-KH8501-WT/DS-KH8500-T/
DS-KH8301-WT/DS-KH8300-T Models support
the TF card function.
Exception occurs
with the TF card.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
