HIKVISION HWN-2108MH-8P User Manual

Network Video Recorder User Manual
27
HWN-2100H-P and HWN-2100MH-P Series

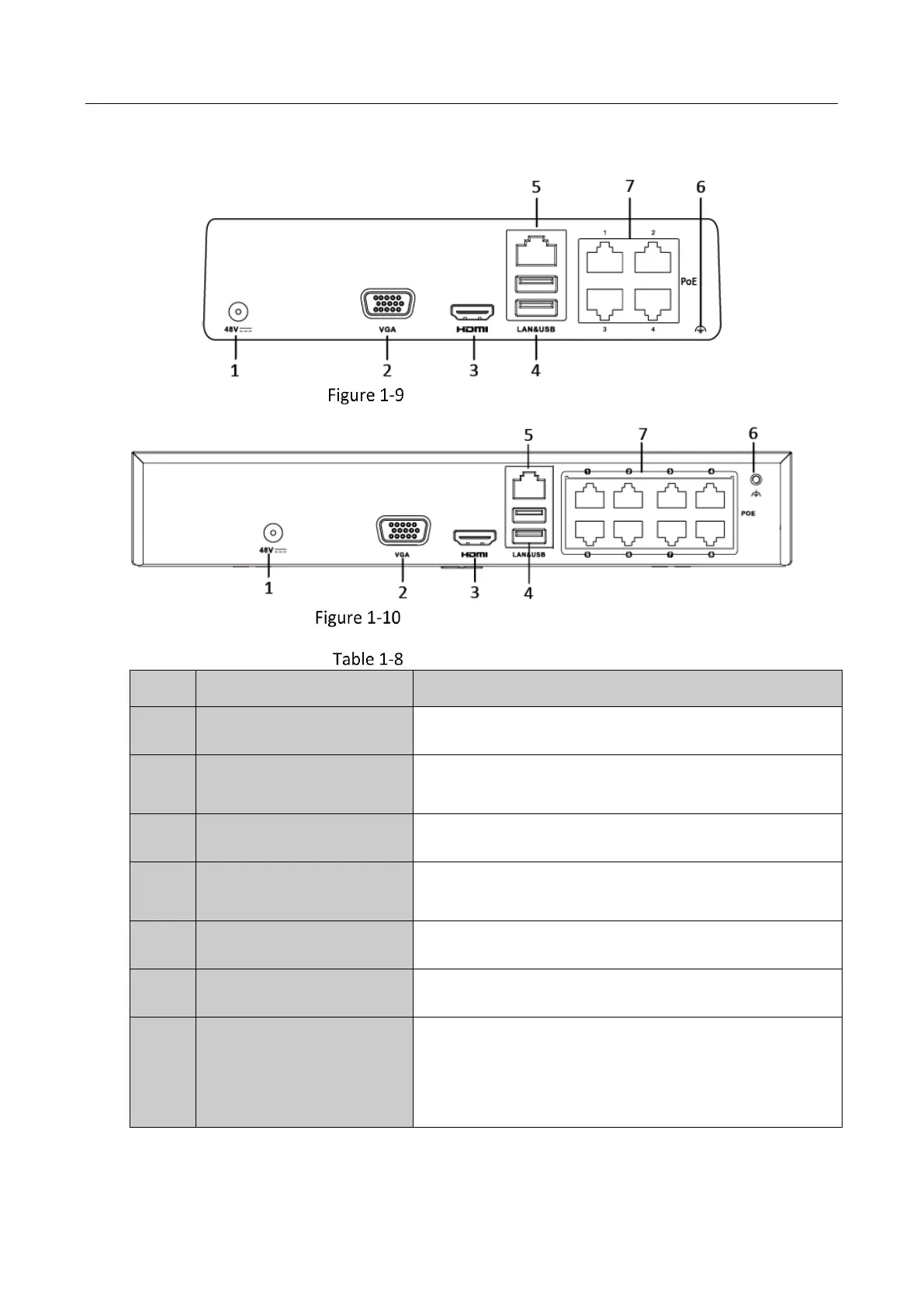

HWN-2100H-P Rear Panel
HWN-2100MH-P Rear Panel
Description of Rear Panel
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface.
6
Ground
Ground (needs to be connected when NVR starts up).
7
Network Interfaces with
PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
4 interfaces for /4P models and 8 interfaces for /8P
models.
